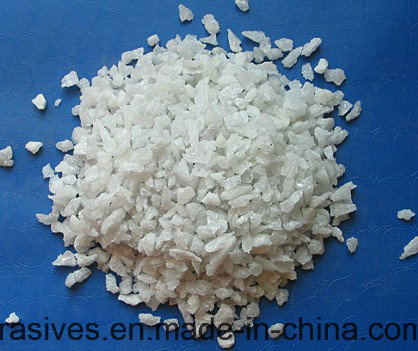

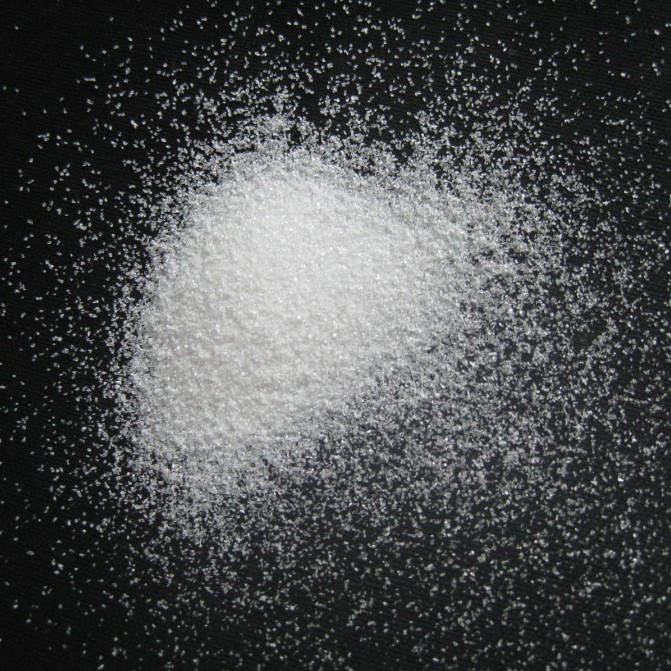

White Fused Alumina(WA),also called White Fused Aluminium Oxide, named by its white color, belongs to the electro fused artificial corundum group and is an important mineral used widely for refractory bricks,refractory castables,pre-cast refractory shapes,other unshaped refractory products,ceramic shapes,metal&ceramic surface preparation,grinding wheels,sandpapers,sanding belts,sandblasting media,lapping and polishing. It's obtained from reduced fusion of high purity calcined alumina in electric arc furnaces. Calcined alumina is the most important material in aluminium making industry. After the fusion process, the materials become liquid, then cooled down and crushed into different sizes for different applications. Magnetic contents are removed and materials are reshaped by relevant equipments, and then sieved into standard sizes(FEPA,JIS,ANSI) of standard particle distribution. It is characterized by high purity (Al2O3 content≥99%), great self-sharpening, acid and alkali resistance, high temperature resistance and stable thermal performance, which make it to be prefect raw material for all kinds of abrasive tools, including grinding high carbon steel, high speed steel, stainless steel and other fine-grained abrasives, it also can be used for precision casting and high-refractory materials.
White Fused Alumina is a hard, chemically stable and relevantly fragile material with high alumina content, low impurity and stability in high temperatures. It has durable abrasives ability, high fireproof and refractory characters, making it an very important raw material in refractory, bonded abrasives and coated abrasives industries. Similar materials we make are Brown Fused Alumina.
White Fused Alumina Characters
High Alumina
White Fused Alumina has a Aluminium Oixde(Al2O3) content of more than 99%. The high alumina content is ensured from its raw material which is calcined alumina.The high content of Al2O3 makes it perform well in fireproof and refractory applications.
Little Impurities
White Fused Alumina has very little impurities, usually less than 0.4% Na2O, less than 0.15 SiO2 and less than 0.15 Fe2O3. It is chemically stable and little impurities make it ideal for refractory uses.
High Hardness
The high content of Al2O3 (Aluminum Oxide) makes it to be with very high hardness (Mosh Hardness≥9) and It's usually utilized for grinding ,cutting, lapping, sandblasting, polishing, surface preparing and also for coated abrasive application, including sandpaper and sand belt.It's not easy to break and good for abrasives. In abrasives industries, it is used for cutting wheels, grinding wheels etc, also used for coated abrasives applications like sandpapers. It's white color and little impurities also make it excellent grinding and sandblasting media for preparing and polishing surface of metal, ceramic products etc. WA fines is also an good material for polishing and water jetting in electronics industry.
Sharp Edges
White Fused Alumina is a crystal mineral with sharp edges and widely used in sandblasting,cutting and grinding abrasives.
White Fused Alumina Properties| Physical Specifications |
| Color | White |
| Grain Shape | Angular or Sharp Edged |
| Mosh Hardness | 9 |
| Melting Point | 2250ºC |
| True Gravity | 3.96g/cm3 |
| Bulk Density | 1.75g/cm3-2.1g/cm3 |
| Chemical Specifications |
| Aluminium Oxide(Al2O3) | 99%min |
| Iron Oxide(Fe2O3) | 0.15%max |
| Disodium Oxide(TiO2) | 0.4%max |
| Silicon Oxide(SiO2) | 0.15%max |
Low Sodium White Fused Alumina also available for high grade applications. Na2O content less than 0.2%.
White Fused Alumina Standard Sizes & ApplicationsRefractory Bricks,Fireproof Products,Pre-Casting Refractory,Refractory Mortars,Refractory Castables:
0-0.2mm,0-0.5mm,0.5-1mm,1-3mm,3-5mm,5-8mm,100mesh,200mesh,325mesh
White Fused Alumina for refractories 0-1-3-5-10mm| Physical Analysis | Grit# | MaximumSize | Big Size | Basic Size | Mixed Size | Small Size | |
| 0-1mm | 0 | 7 | | | 3 | |
| 1-3mm | 0 | 5 | | | 3 | |
| 3-5mm | 0 | 6 | | | 2.5 | |
| 5-10mm | 0 | 5 | | | 4 | |
| Chemical Analysis | | SiO2 | AL2O3 | Fe2O3 | Na2O | | |
| 0-1mm | 0.06 | 99.56 | 0.05 | 0.28 | | |
| 1-3mm | 0.05 | 99.51 | 0.03 | 0.30 | | |
| 3-5mm | 0.07 | 99.60 | 0.02 | 0.23 | | |
| 5-10mm | 0.03 | 99.61 | 0.03 | 0.26 | |
Bonded Abrasives,Grinding,Cutting,Lapping,Sandblasting,Polishing, Anti-Slip,Non-Slippery Products,Laminate Flooring Coating,Surface Wear Protection: FEPA F24,F30,F36,F40,F46,F54,F60,F70,F80,F90,F100,F120,F150,F180,F220,F280,F320,F400,F500,F600,F800,F1000,F1200,F1500
White Fused Alumina FEPA F Sizes for Bonded Abrasives and Sandblasting| Physical Analysis | Grit# | Max Size | Big Size | Basic Size | Mixed Size | Small Size | | |
| F16 | +2.00 | +1.40 | +1.18 | +1.00 | -0.85 | AL2O3 | 99.51% |
| Standard | 0% | 0-20% | 45-100% | 70-100% | 0-3% | SIO2 | 0.05% |
| Sample 1 | 0 | 9 | 63 | 85 | 0.5 | Na2O | 0.31% |
| Sample 2 | 0 | 9 | 63 | 85 | 0.5 | Fe2O3 | 0.03% |
| Physical Analysis | Grit# | Max Size | Big Size | Basic Size | Mixed Size | Small Size | | |
| F24 | +1.18 | +0.85 | +0.71 | +0.60 | -0.50 | AL2O3 | 99.53% |
| Standard | 0% | 0-25% | 45-100% | 65-100% | 0-3% | SIO2 | 0.06% |
| Sample 1 | 0 | 18 | 61 | 80 | 0.5 | Na2O | 0.33% |
| Sample 2 | 0 | 17 | 62 | 80 | 0.5 | Fe2O3 | 0.03% |
| Physical Analysis | Grit# | Max Size | Big Size | Basic Size | Mixed Size | Small Size | | |
| F30 | +1.00 | +0.710 | +0.600 | +0.500 | -0.425 | AL2O3 | 99.42% |
| Standard | 0% | 0-25% | 45-100% | 65-100% | 0-3% | SIO2 | 0.05% |
| Sample 1 | 0 | 18 | 61 | 80 | 0.5 | Na2O | 0.32% |
| Sample 2 | 0 | 17 | 62 | 80 | 0.5 | Fe2O3 | 0.04% |
| Physical Analysis | Grit# | Max Size | Big Size | Basic Size | Mixed Size | Small Size | | |
| F60 | +0.425 | +0.30 | +0.25 | +0.212 | -0.18 | AL2O3 | 99.44% |
| Standard | 0% | 0-30% | 40-100% | 65-100% | 0-3% | SIO2 | 0.04% |
| Sample 1 | 0 | 11 | 57 | 86 | 0.5 | Na2O | 0.30% |
| Sample 2 | 0 | 11 | 56 | 87 | 0.5 | Fe2O3 | 0.03% |
| Physical Analysis | Grit# | Max Size | Big Size | Basic Size | Mixed Size | Small Size | | |
| F120 | +0.180 | +0.125 | +0.106 | +0.090 | -0.063 | AL2O3 | 99.41% |
| Standard | 0% | 0-20% | 40-100% | 65-100% | 0-3% | SIO2 | 0.05% |
| Sample 1 | 0 | 15 | 65 | 83 | 0.5 | Na2O | 0.31% |
| Sample 2 | 0 | 16 | 64 | 82 | 0.5 | Fe2O3 | 0.03% |
| Physical Analysis | F320 | D0 | D3 Maximum | D50 Medium | D95 Smallest | AL2O3 | 99.3% |
| Standard | 0 | 52 | 32.8±1.5 | 19 | SIO2 | 0.09% |
| Sample 1 | 0 | 39 | 32.5 | 13 | Na2O | 0.33% |
| Sample 2 | 0 | 39 | 33 | 14 | Fe2O3 | 0.11% |
Coated Abrasives,Sandpaper,Sandbelt: P8-P220
White Fused Alumina MSDSIDENTIFICATION OF THE SUBSTANCE/PREPARATION AND THE
COMPANY/UNDERTAKING: Fountain Industrial Co.,Limited
Product Code: WA
Product Name White Fused Alumina Abrasive Powder
Supplied by: Fountain Industrial Co.,Limited
Application of the substance Polishing/ Lapping/ Cutting/sandblasting/refractory bricks/refractory castables/fireproof
COMPOSITION/INFORMATION ON INGREDIENTS/PRODUCTS
Chemical Name White Fused Alumina Oxide Powder
Chemical Formula Al2O3
Typical Composition Aluminum Oxide 99 %
Fe2O3:0.06%, SiO2:0.08%, Na2O:0.2%, MgO:0.01%
Mosh Strenth:9.6
Volume Density:3.56g/cm3
HAZARDS INFORMATION
Eye contact l Severe Eye irritation
Skin contact l Severe skin irritation
Inhalation l May cause irritation of respiratory tract
Ingestion l Ingestion may cause irritation to mucous membrances
Aggravated Medical Conditions l Asthmal Lung irritationl Dermatitis
Emergency overview l Non-combustible
FIRST AID MEASURES
General advice l Show this safety data sheet to the doctor in attendance
Skin contact l Wash off immediately with soap and plenty of water removing all contaminated
clothes and shoes If skin irritation persists, call a physician
Eye contact l Immediately flush with plenty of water. After initial flushing, remove any contact
lenses and continue flushing for at least 15 minutes If symptoms persist, call a physician
Inhalation l Move to fresh aril If breathing is difficult, give oxygenl If not breathing, give artificial
respirationl Consult a physician if necessary
Ingestion l Clean mouth with water and afterwards drink plenty of water Never give anything by
mouth to an unconscious personal Do not induce vomiting without medical advicel Consult a
physician
FIRE-FIGHTING MEASURES
Suitable extinguishing media l The product itself does not burnl Use extinguishing measures that
are appropriate to local circumstances and the surrounding environment
Special protective equipment for firefighters l Wear self-contained breathing apparatus and
protective suit
ACCIDENTAL RELEASE MEASURES
Personal precautions l Wear personal protective equipmentl Avoid dust formation
Environmental precautions l Do not flush into surface water or sanitary sewer systeml Do not
contaminate surface water
Methods for cleaning up l Take up mechanically and collect in suitable container for disposal
HANDLING AND STORAGE
Technical measures/ Precautions (handling) l No special handling advice required
Safe handling advice (handling) l Avoid dust formation in confined areas
Technical measures/ Precautions (storage) l Keep in a dry placel Keep container tightly closed
PERSONAL PROTECTIVE EQUIPMENT
Respiratory protection l In case of insufficient ventilation, wear suitable respiratory equipmentl
When workers are facing concentrations above the exposure limit they must use appropriate
certified respirators
Hand protection l Protective glovesl Wear as appropriate
Eye protection l Tightly fitting safety gogglesl Safety glasses with side-shields
Skin and body protection l No special protective equipment required
Hygiene measures l When using, do not eat, drink or smokel Regular cleaning of equipment, work
area and clothing
PHYSICAL AND CHEMICAL PROPERTIES
Form l Powder
Color l White
Odor l None
Melting Poing l 2200ºC and above
Risk of explosion l Not applicable
Water solubility l Insoluble
pH l Neutral
Solubility in other solvents l Insoluble
STABILITY AND REACTIVITY
Stability l Stable under normal conditionsl Hazardous polymerization does not occur
Conditions to avoid l No decomposition if stored and applied as directed
Materials to avoid l No information available
Decomposition l Not applicable
TOXICOLOGICAL INFORMATION
Skin irritation l Severe skin irritation
Eye irritation l Severe eye irritation
Inhalation l May cause irritation of respiratory tract
Ingestion l Ingestion may cause irritation to mucous membranes
*End of safety data sheet of White Fused AluminaWhite Fused Alumina Analysis ReportPhysical&Chemical Analysis of White Fused Alumina
White Fused Alumina for refractories 0-1-3-5-10mm
| Physical Analysis | Grit# | MaximumSize | Big Size | Basic Size | Mixed Size | Small Size | |
| 0-1mm | 0 | 7 | | | 3 | |
| 1-3mm | 0 | 5 | | | 3 | |
| 3-5mm | 0 | 6 | | | 2.5 | |
| 5-10mm | 0 | 5 | | | 4 | |
| Chemical Analysis | | SiO2 | AL2O3 | Fe2O3 | Na2O | | |
| 0-1mm | 0.06 | 99.56 | 0.05 | 0.28 | | |
| 1-3mm | 0.05 | 99.51 | 0.03 | 0.30 | | |
| 3-5mm | 0.07 | 99.60 | 0.02 | 0.23 | | |
| 5-10mm | 0.03 | 99.61 | 0.03 | 0.26 | | |
White Fused Alumina FEPA F Sizes for Bonded Abrasives and Sandblasting
| Physical Analysis | Grit# | Max Size | Big Size | Basic Size | Mixed Size | Small Size | | | |
| F16 | +2.00 | +1.40 | +1.18 | +1.00 | -0.85 | AL2O3 | 99.51% | |
| Standard | 0% | 0-20% | 45-100% | 70-100% | 0-3% | SIO2 | 0.05% | |
| Sample 1 | 0 | 9 | 63 | 85 | 0.5 | Na2O | 0.31% | |
| Sample 2 | 0 | 9 | 63 | 85 | 0.5 | Fe2O3 | 0.03% | |
| Physical Analysis | Grit# | Max Size | Big Size | Basic Size | Mixed Size | Small Size | | | |
| F24 | +1.18 | +0.85 | +0.71 | +0.60 | -0.50 | AL2O3 | 99.53% | |
| Standard | 0% | 0-25% | 45-100% | 65-100% | 0-3% | SIO2 | 0.06% | |
| Sample 1 | 0 | 18 | 61 | 80 | 0.5 | Na2O | 0.33% | |
| Sample 2 | 0 | 17 | 62 | 80 | 0.5 | Fe2O3 | 0.03% | |
| Physical Analysis | Grit# | Max Size | Big Size | Basic Size | Mixed Size | Small Size | | | |
| F30 | +1.00 | +0.710 | +0.600 | +0.500 | -0.425 | AL2O3 | 99.42% | |
| Standard | 0% | 0-25% | 45-100% | 65-100% | 0-3% | SIO2 | 0.05% | |
| Sample 1 | 0 | 18 | 61 | 80 | 0.5 | Na2O | 0.32% | |
| Sample 2 | 0 | 17 | 62 | 80 | 0.5 | Fe2O3 | 0.04% | |
| Physical Analysis | Grit# | Max Size | Big Size | Basic Size | Mixed Size | Small Size | | | |
| F60 | +0.425 | +0.30 | +0.25 | +0.212 | -0.18 | AL2O3 | 99.44% | |
| Standard | 0% | 0-30% | 40-100% | 65-100% | 0-3% | SIO2 | 0.04% | |
| Sample 1 | 0 | 11 | 57 | 86 | 0.5 | Na2O | 0.30% | |
| Sample 2 | 0 | 11 | 56 | 87 | 0.5 | Fe2O3 | 0.03% | |
| Physical Analysis | Grit# | Max Size | Big Size | Basic Size | Mixed Size | Small Size | | | |
| F120 | +0.180 | +0.125 | +0.106 | +0.090 | -0.063 | AL2O3 | 99.41% | |
| Standard | 0% | 0-20% | 40-100% | 65-100% | 0-3% | SIO2 | 0.05% | |
| Sample 1 | 0 | 15 | 65 | 83 | 0.5 | Na2O | 0.31% | |
| Sample 2 | 0 | 16 | 64 | 82 | 0.5 | Fe2O3 | 0.03% | |
| Physical Analysis | F320 | D0 | D3 Maximum | D50 Medium | D95 Smallest | AL2O3 | 99.3% |
| Standard | 0 | 52 | 32.8±1.5 | 19 | SIO2 | 0.09% |
| Sample 1 | 0 | 39 | 32.5 | 13 | Na2O | 0.33% |
| Sample 2 | 0 | 39 | 33 | 14 | Fe2O3 | 0.11% |
FEPA P Sizes for coated abrasives also available at request.
Packing:
Big Bag of 1 Ton, 1.2 Tons or 1.3 Tons
25kg Wooven Plastic Bag,40 Bags in a Big Bag
25kg Wooven Plastic Bags,40 Bags on a Wood Pallet
25kg Paper Bag,40 Bags on a Wood Pallet
