| Price: | US $ 3240/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Applicable materials:
Nonmetal materials such as leather, fabric, cloth, textile, paper, plastic, rubber, double color board,acrylic glass, bamboo and wood,MDF, plywood, marble, granite and crystal etc.
Applicable industry:
Large width tailoring, shoe making, furniture, advertisement, molding, billboards, artistic gifts, crystal
ornaments,paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and
upholster industry.smallbussiness industry.etc
Machine description
1. wide range application: co2 laser can engrave&cut almost any non-metallic materials.
2. safe and reliable: laser is non-contact processing, does not harm the surface of the workpiece
3. accurate and detailed: machining precision can reach 0.02mm.
4. environmental conservation: thin laserl beam less than 0.5mm; save material, safety and
health.
5. consistent results: to ensure that the same batch of processed exactly the same effect.
6. high- speed fast: high speed engraving and immediately cut according to pattern computer
output.
7. Low cost: not limited by the number of processing, special advantage for small quantity
processing.

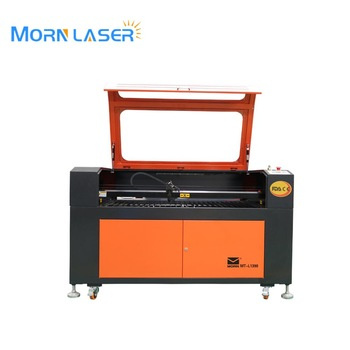

Machine technical
Model | MT-L1390 |
Working area : | 1300mm*900mm |
Laser power : | 60W/80W/100W/130W/150W |
Laser type : | CO2 sealed laser tube,water-cooled |
Engraving speed : | 25-24000mm/min |
Cutting speed : | 50-5000mm/min |
Power supply : | 220V±10% /50HZ , 110V±10%//60HZ |
Graphic format supported: | BMP, PLT, DST, DXF, AI,CDR,JPEG,TIFF,DMG,etc |
Software supported : | CorelDraw, PhotoShop, AutoCAD,etc |
Laser Output Control: | 1-100% software setting |
Resolution ratio : | 4000DPI |
Location precision: | <0.01mm |
Working temperature: | 0-45ºC |
Operating humidity: | 5%-95%(without condensed water) |
Net Weight | 360KG |
Sample

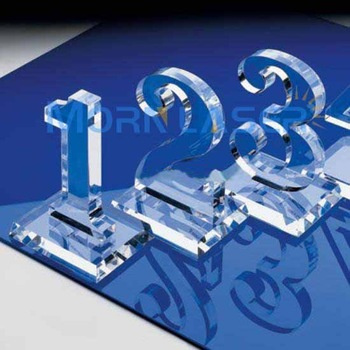

Acrylic cutting:
Wood cutting:
Our payment and service
1. 1 years warranty for machine, ten months for laser tube
2. Lifelong technical support online or by email
3. 24 hours online service to help you use our machine well
4. Offer oversea service for training,installing,operating if necessary
5. Will offer you manueal and operating producer when deliver the machine
6. Offer training at our factory for free(you could visit us and learn)

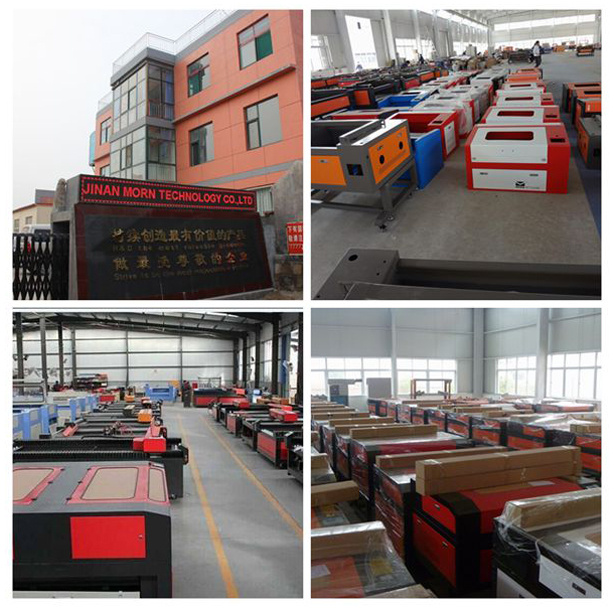

Our factory and team
Jinan Morn Technology Co.,Ltd is one of the leading manufactures of laser engraving machine,laser cutting machine and cnc router since the year of 2008.We have our own brand MORN® .The products are including fiber laser serials and co2 laser serials. . Combined production, design, manufacturing, trade, service, exporting experience (more than 150 countries) together, and provided high quality and good efficient machines worldwide help Morn gained success in this field. Morn always trying best to produce innovative products and provide free solution to help clients start their business and increase their returns. Welcome to join us for pleasant cooperation and manual benefit.
Welcome to Join us!
Welocme to inquiry us at any time!
Phone:0086-18660129212
E-mail:mornc@morntech
| Prod Model: | MT-L1390 |
|---|---|
| Model: | Mt-L1390 |
| Working Area: | 1300*900mm |
| Laser Power: | 60W/80W/100W/130W/150W |
| Working Table: | Knife Table/ Honey Table |
| Control System: | DSP Controller |
| Control Software: | Ruida |
| Cutting Speed: | 600mm/S |
| Guide Rail: | Hiwin Guide Rail |
| Power Supply: | AC220±10% 50 Hz / AC110±10% 50 Hz |
| Motor System: | Step Motor |
