| Price: | US $ 8000-16000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |

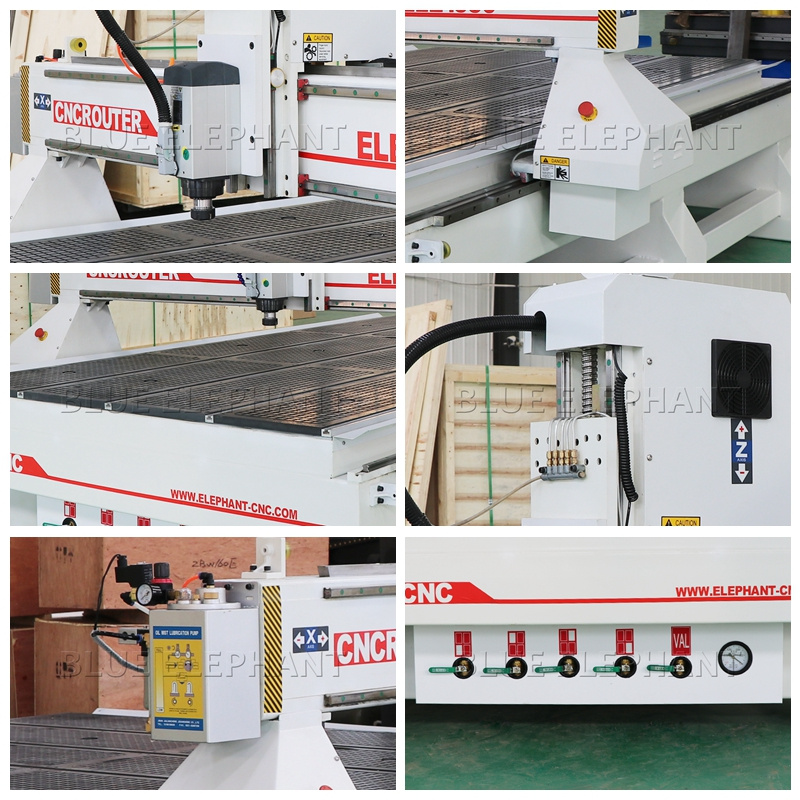

Features of cnc router 1530:
Advantages:
Parameters of cnc router 1530:
Description | Parameter |

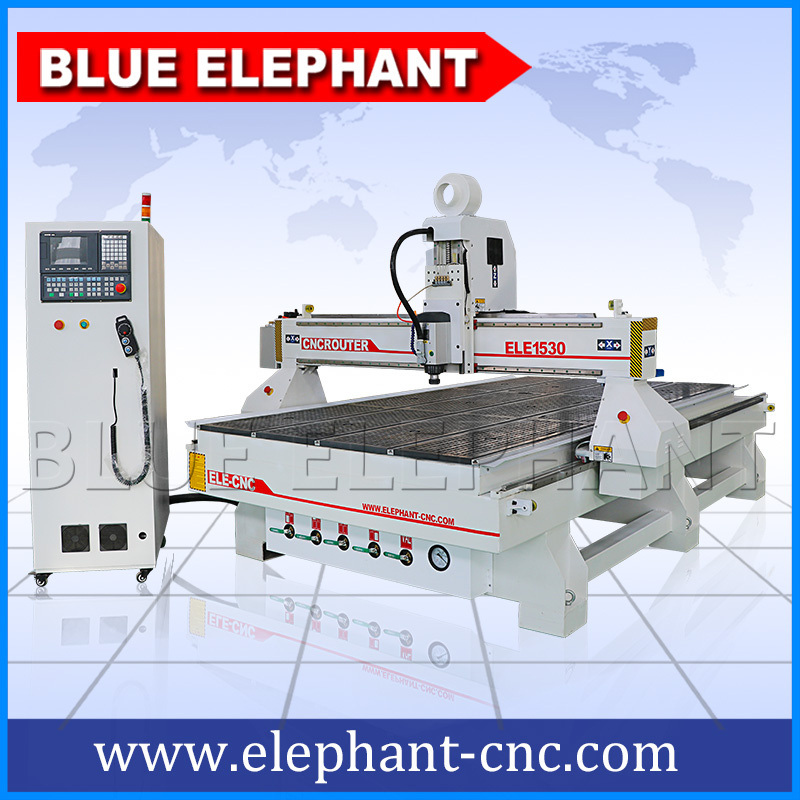

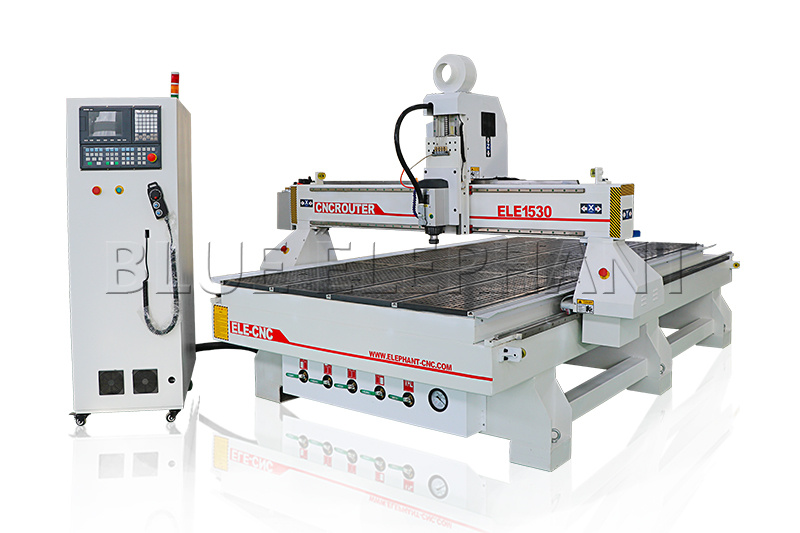

Model | 1530 Woodworking Machines |
X,Y,Z Working Area | 1500*3000*200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
Table Surface | Vacuum and T-slot working table |
X, Y Structure | Helical Rack gear for X Y axis |
Z Structure | Taiwan TBI ball screw for Z travel |
Spindle | Original Italy HSD 4.5KW Air cooling spindle |
Spindle Speed | 0-18000RPM |
Drive Motors | Japan YASKAWA servo motor, 850W and drivers, 1000W |
Inverter | Taiwan DELTA 5.5KW inverter |
Lubrication system | Manual lubrication system |
Working Voltage | AC380V, 3Ph, 50Hz (Option: 220V) |
Operating System | Taiwan SYNTEC 6MB controller with MPG handle wheel |
Control box | Single-sided indenpended control box |
Vacuum pump | 4KW German Becker vacuum pump (AC380V, 3Ph, 50Hz) |
Frame | New type thicker and bigger heavy duty welded frame and gantry |
Dust collector | 200mm vacuum pipe dust cover. |
PS:All the working area and specifications can be customized according to your requests.
Applications:
1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
4.Relief sculpture and 3D engraving.
5.Cylindrical object.

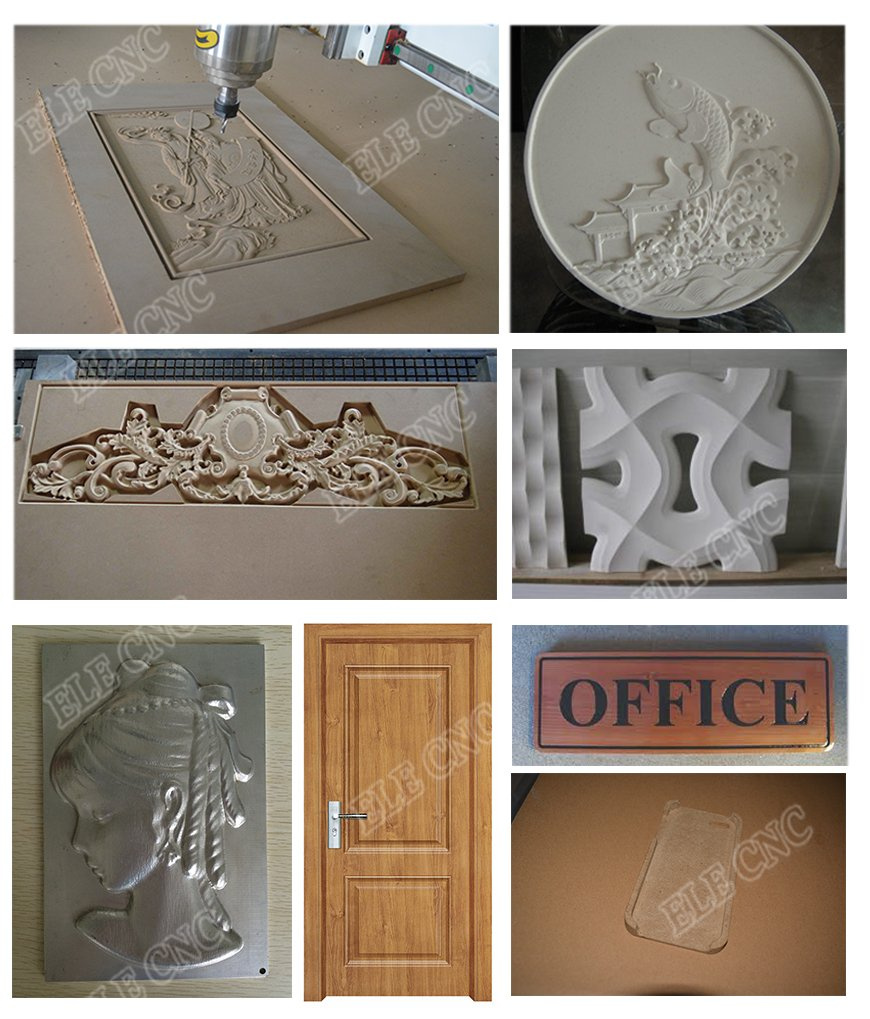

Sample:
Our Services:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
Contact us:
Mobile: 0086-15064026772
Web: www.elephant-cnc.com
| Prod Model: | ELE1530 |
|---|---|
| Power(W): | 8kw |
| Voltage: | AC380V, 3pH, 50Hz (Option: 220V) |
| Working Area: | 1500*3000*200mm |
| Control System: | Taiwan Syntec 6MB Controller with Mpg Handle Wheel |
| Spindle: | Original Italy Hsd 4.5kw Air Cooling Spindle |
| Spindle Power: | 4.5kw for CNC Router 1530 |
| Motor: | Japan Yaskawa Servo Motor for CNC Router 1530 |
| Drivers: | Japan Yaskawa Servo Drivers for CNC Router 1530 |
| Inverter: | Taiwan Delta 5.5kw Inverter for CNC Router 1530 |
| Table Surface: | Vacuum and T-Slot Working Table |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS, FDA |
