| Product Types & Configuration | 160kV | 200kV | 320kV | 450kV |
| Models | ZXFlasee D 160M | ZXFlasee D 200M | ZXFlasee D 320S | ZXFlasee D 450S |
| Integrated Glass Tubes X Machines | 160kV 1.25mA | 200kV 2mA | 320kV 5mA | 450kV 4mA |
| Tablet Detector ZXP2530 | Max Imaging View 25x30cm, Min Pixel 120μm, Dynamic Imaging (18x18cm) |
| Applicable Thickness | 80mm Al
18mm Fe | 150mm Al
30mmFe | 250mm Al
50mmFe | 70mmFe |
Main Features:-Max size of detected workpiece: 600x600X1000mm-Max weight of detected workpiece: 50kg
-Use 154μm,16bit, non crystal silicon tablet, system resolution superior to l 3.0lp/mm
-The dosage of leaking x-ray <1.0μSv/h (international), safety protection fully
System working enviornment requirement:
-Temperature:2~40ºC-Humidity
<85%-
AC 380V, uniphase capacity >10kVA-Individual groundwire, ground-resistance
<4Ω
Detected materials:
ceramic, aluminum,steel, resin, etc.casting or welding workpieces
Imaging sensitivity: Dynamic sensitivity: 2~2.5%(2m/min)
Static sensitivity: 1~1.5%The index is measured by wired IQI

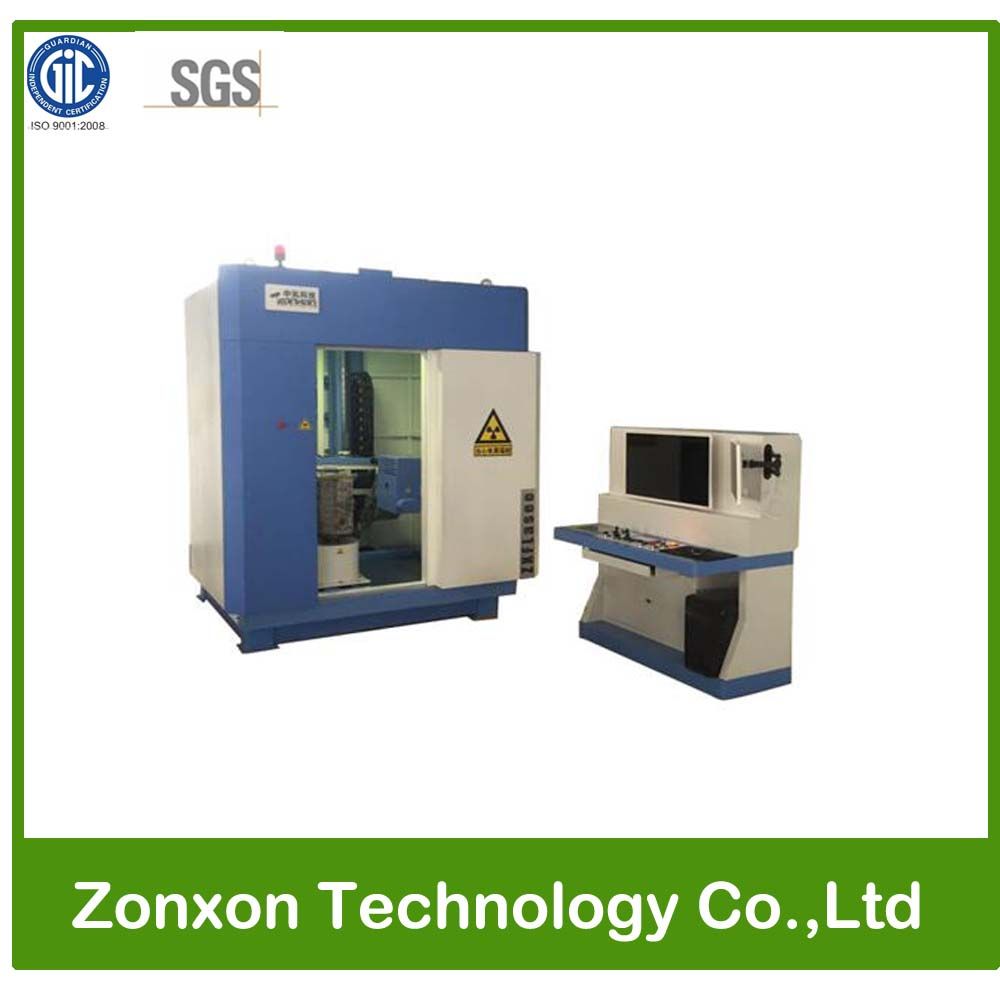

System composition:-X-ray guard chamber
-Detected worktable
-Controlling System
-Power Tree high frequency constant potential x-ray machine
-ZXP1616 industrial digital tablet detector
-ZXVISPRO digital image processing & increasing software systemWe can customize as your requirements and provide the detailed sheet.
ZonXon Technology(ZXT) is an experienced professional manufacturer in industrial X-ray field, especially in the field of high voltage generator, accelerator (Linear Accelerator & Betatron )and X-ray DR(Digital radiography).
Our "Power Tree" family HT generator / X-ray source & "ZX" family inspection system can meet the strict requirements of modern industrial applications.
"Power Tree" series products have covered 75kV to 600kV HT generator / X-ray machine, 2.5-7.5MeV betatron, 4/6/9 MeV Linear Accelerator, which can meet different requirements of flaw detection, analysis, thickness gauging, irradiation, security and X-ray tube aging & testing.
"ZX" series systems provide variety X-ray DR / CT solutions for welding, casting, packing for the industrial field of oil/gas transportation, automobile, power generation, military industry etc.
Based on more than 10 years R&D and engineering experiences, we understand the importance of supporting clients with reliable solutions. And our team always strive to meet consumers' requirements through the development of unique innovative products which provide the customer with added value.
