Lead X-Ray Glass Radiation Shielding
Lead glass is a variety of glass in which lead replaces the calcium content of a typical potash glass. Lead glass contains typically 18-40 weight% lead oxide (PbO), while modern lead crystal, historically also known as flint glass due to the original silica source, contains a minimum of 24% PbO. Lead glass is desirable owing to its decorative properties.

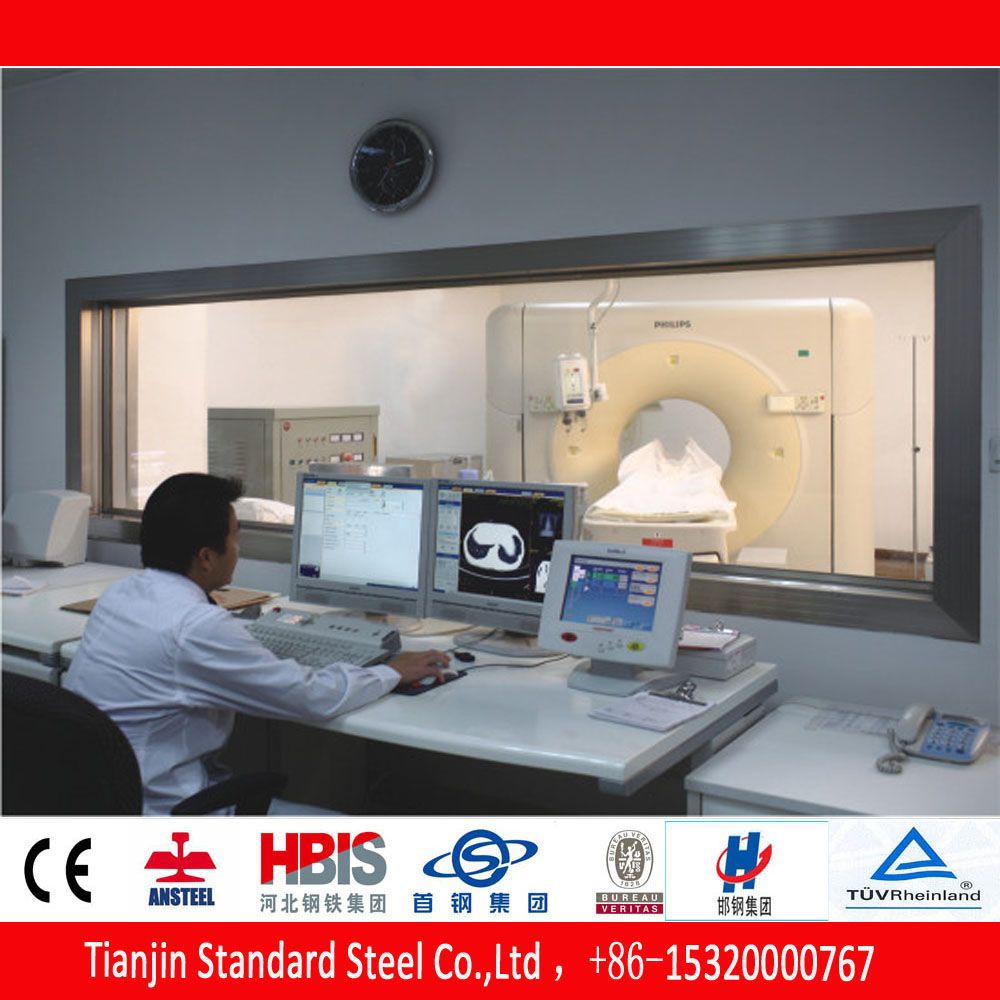

Lead Glass (X-ray Glass, Radiation Shielding Glass, Leaded Glass) is suitable for installation in screens, windows, walls, and doors. Our Lead Glass (X-ray Glass, Radiation Shielding Glass, Leaded Glass) allows technicians to view the imaging or radiation therapy procedures.
Lead glass has a number of uses, primarily in the medical industry. It provides full radiation protection but is transparent and easy to see through for observation purposes. Radiation Protection Products x-ray glass delivers superior visual clarity and high light transmission with little to no distortion, even in our thickest available varieties. Our lead glass can be used effectively in x-ray rooms, radiation therapy rooms, laboratories, and many other applications.
We offer lead glass in a variety of standard sizes to meet the needs of nearly any application. See the chart below for our standard x-ray glass sizes. We also offer custom size lead glass up to a maximum of 108" x 54". Quotes for custom size leaded glass are available upon request.
Lead Glass (X-ray Glass, Radiation Shielding Glass, Leaded Glass) is available in the following equivalencies: 1.6mm, 2.0mm, 2.5mm and 3.2mm. These lead equivalencies are based on 150kV. Lead x-ray glass with higher lead equivalencies is available upon request.
Lead glass (x-ray glass, radiation shielding glass, leaded glass) standard sizes
8" x 10" 10" x 12" 12" x 12" 12" x 16"
12" x 24" 12" x 36" 16" x 24" 18" x 24"
24" x 24" 24" x 48" 30" x 24" 30" x 30"
32" x 40" 36" x 24" 36" x 30" 36" x 36"
40" x 40" 40" x 42" 42" x 42" 48" x 36"
48" x 40" 48" x 42" 48" x 48" 60" x 36"
60" x 40" 60" x 42" 60" x 48" 72" x 36"
72" x 40" 72" x 42" 72" x 48" 84" x 36"
84" x 40" 84" x 42" 96" x 42" 96" x 48"
108" x 54" (max size)
| Type | Index of refraction | Density | Lead equivalent | light transmittance | PBo% |
| ZF3 | 1.71720 | 4.46 | 0.24mmpb | >85% | 61.0% |
| ZF7 | 1.0600 | 5.2 | 0.33mmpb/mm | Less than 85% | 71% |
| ZF6 | 1.75500 | 4.77 | 0.27mmpb/mm | Less than 85% | 65.06% |
Package & Loading
Standard Export Seaworthy Packing : With waterproof paper, metal belt pack sheet, put them in wooden pallet, put in container.
The inner size of commonly used container is below:
20FT GP: 5.69mx 2.13mx 2.18m about 25MTS,24-26m³
40FT GP: 11.8mx 2.13m x 2.18m ;about 25MTS,54m³
40FT HG: 11.8m x 2.13m x 2.72m about 22MTS,68m³
Or as customers' requiremenets.
How to make an order?
· Sample approval
· Client make 30% deposit or open LC after confirming the PI
· Client visit our workshop to check quality or arrange Third-party to inspect the cargos.
· After passed Inspection, then we arrange shipment with shipping agent.
· Supplier arrange necessary documents and send copy of these documents
· Client remit balance payment
· Supplier send original documents or telex release the goods
· Quality warranty for 2year after shipment
After sales service
· After receive the goods, We hope to get your feedback at first time.
· We could provide installation guide, if you need, we could give you global service.
· Our Sales are 24-hours online for your request.
Professional sales
· We value every inquiry sent to us, ensure quick competitive offer.
· We cooperate with customer to bid tenders. Provide all necessory document.
· We are a sales team, with all techinical support from engineer team.
Welcome to contact with us!
