Tungsten carbide ring and pure 99.95% tungsten ring supplier:
Tungsten Carbide Rings are generally made with Cobalt as binder material. Nickel bonded Rings also can be supplied.
Tungsten Carbide Seal Rings are used as Mechanical Seal faces in pumps, Compressors and Agitators. These are used in Oil Refineries, Petrochemical plants, Fertilizer Plants, and Drugs/Pharmaceutical Industries.

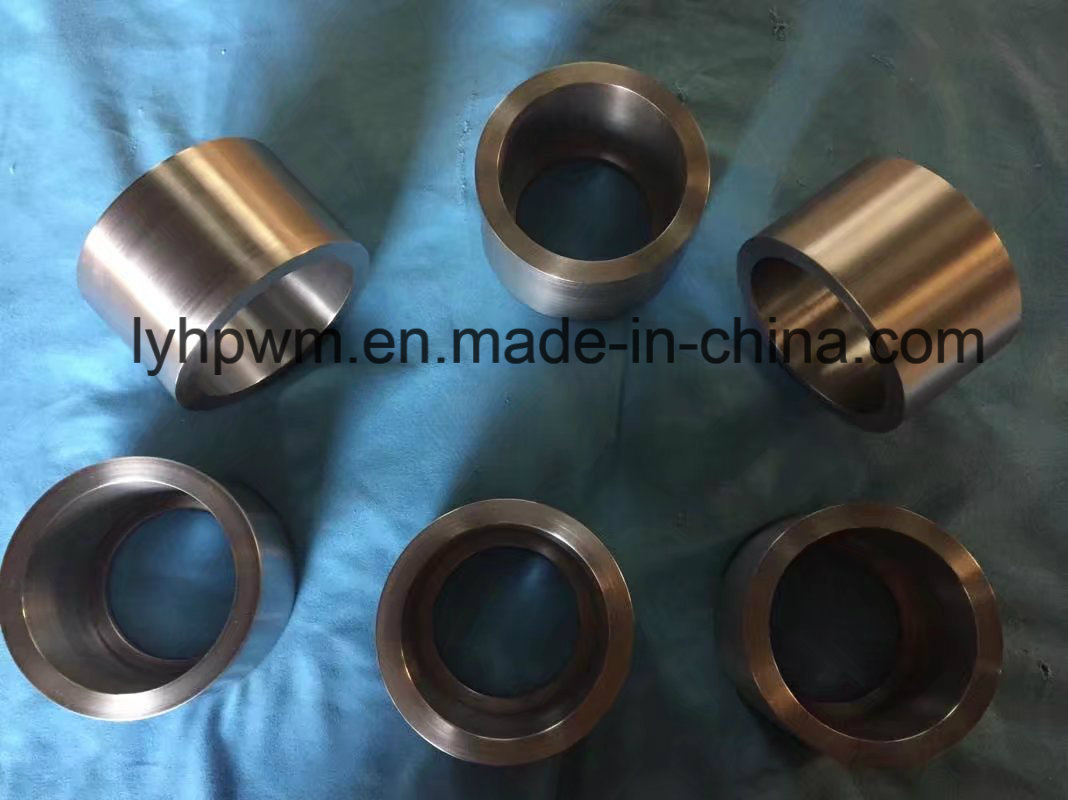

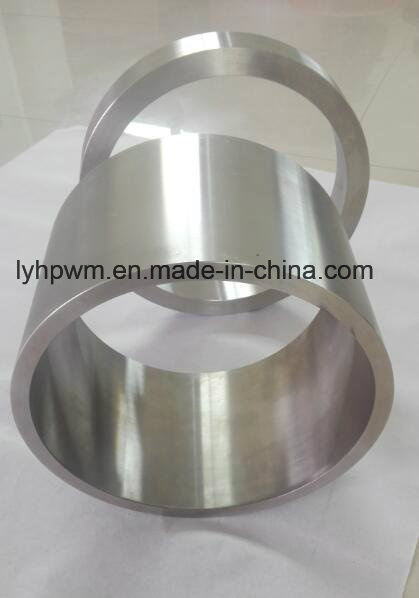

Mechanical seal rings are developed to withstand high temperature, high pressure & highly corrosive chemical attack. We manufacture Rings in various shapes like Plain Ring, DA type, T-shape, L-shape and in shapes as per customers requirement.Tungsten tubes description:
1) Purity :W≥99.95%;
2) Forged density:≥18.5g/cm3
Sintered density>18g/cm3
3) Maximum ambient temperature:2400ºC.4) Available tungsten tubes/pipe dimension and tolerance| State supply | Specification | Tolerance | Wall thickness(mm) | toughness(μm) |
| diameter(mm) | height(mm) | diameter(mm) | hight(mm) |
| Sintering state | 70-500 | 50-750 | ±5.0 | ±5.0 | 8-20 | <2.5 |
Finish
machining | 70-450 | 50-550 | ±0.5 | ±1.0 | 6-18 | <2.5
|
5) Tungsten tubes process and usage:
Process: APT--powder--reduction suppression (sintering/car processing)products--rooted (spin forging/rolling)--stretching--tube
Usage: Because of the tungsten high melting point (3400 ° C), high-density (19.3 g/cm3), sound velocity (4.03 km/s),tungsten tube has good ductility characteristics of pure metal state,and tungsten alloy state is widely used in modern technology, alloy is the main is a state of alloy steel, with tungsten carbide based hard alloy, and the strong heat resistant alloy alloy.
6) Tungsten tubes application:Tungsten crucible and tubes can be used for sapphire crystal growth and rare-earth melting due to their high temperature resistance, low pollution and other excellent characteristics.

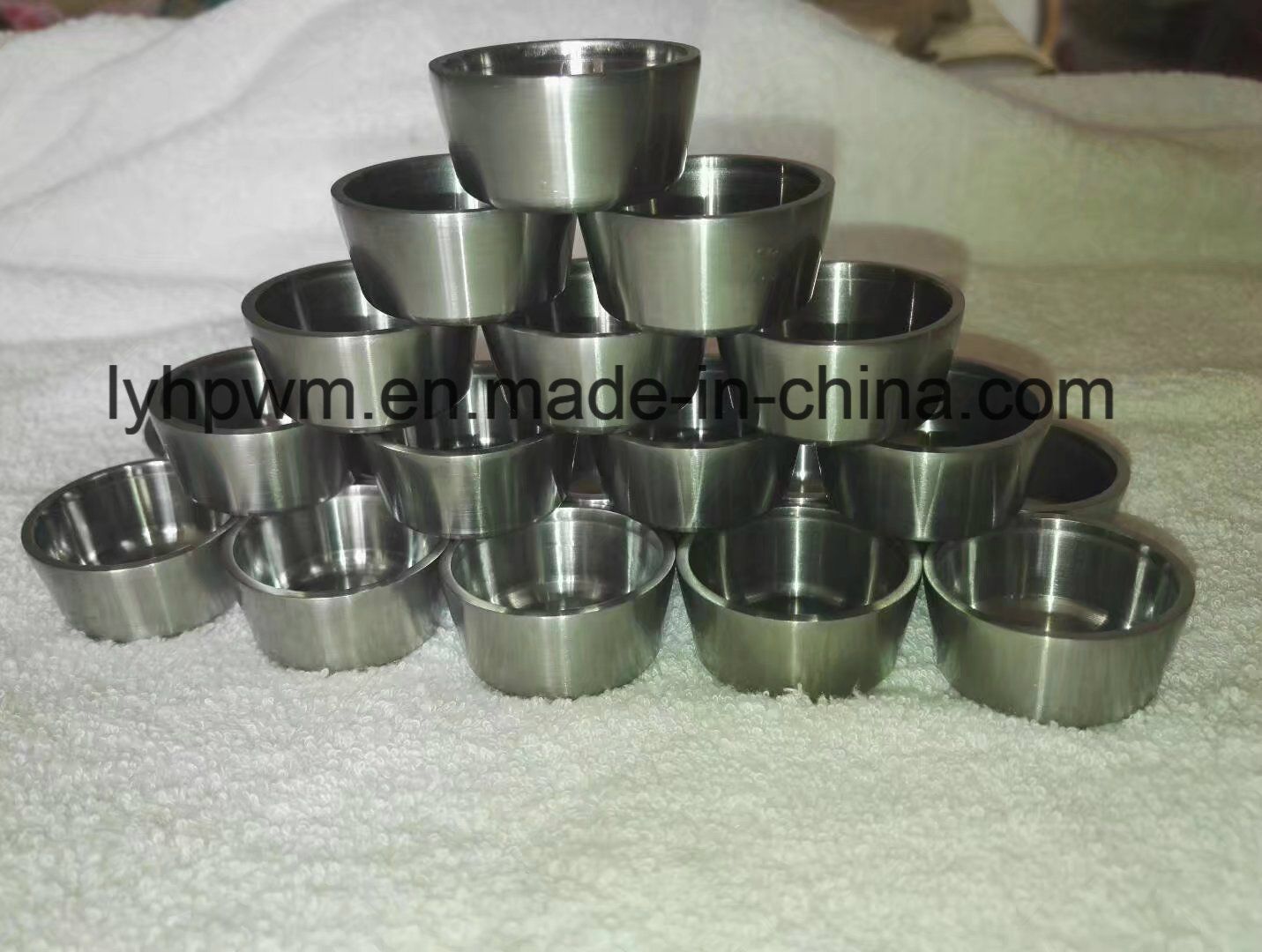

Our tungsten crucible product information as follows:We also can produce tungsten boat, tungsten crucibles, tungsten funnels, tungsten barrel, tungsten tubes and various kinds of special liquid- flow hole panel, etc.
1) Sintering tungsten crucible
Density: 18.0 - 18.5 g/cm3
Working temperature: 1800 - 2, 600 DC
Diameter: 100 - 500mm (max. )
Cubage: 0.4 - 100 litres
2) Forging tungsten crucible
Density: 18.5 - 19.0 g/cm3
Working temperature: 1800 - 2, 600 DC
Diameter: 18 - 150mm (max. )
Cubage: 2 - 500 ml
3) Tungsten crucible boat funnels applications: It is used for smelting of rare earth metals, heating elements of induction furnace, heating elements of rarearth metals, smelting of quartz, glass and for high-temperature containers. Tungsten crucible is used in high temperature vessels for smelting of rare earth metals.

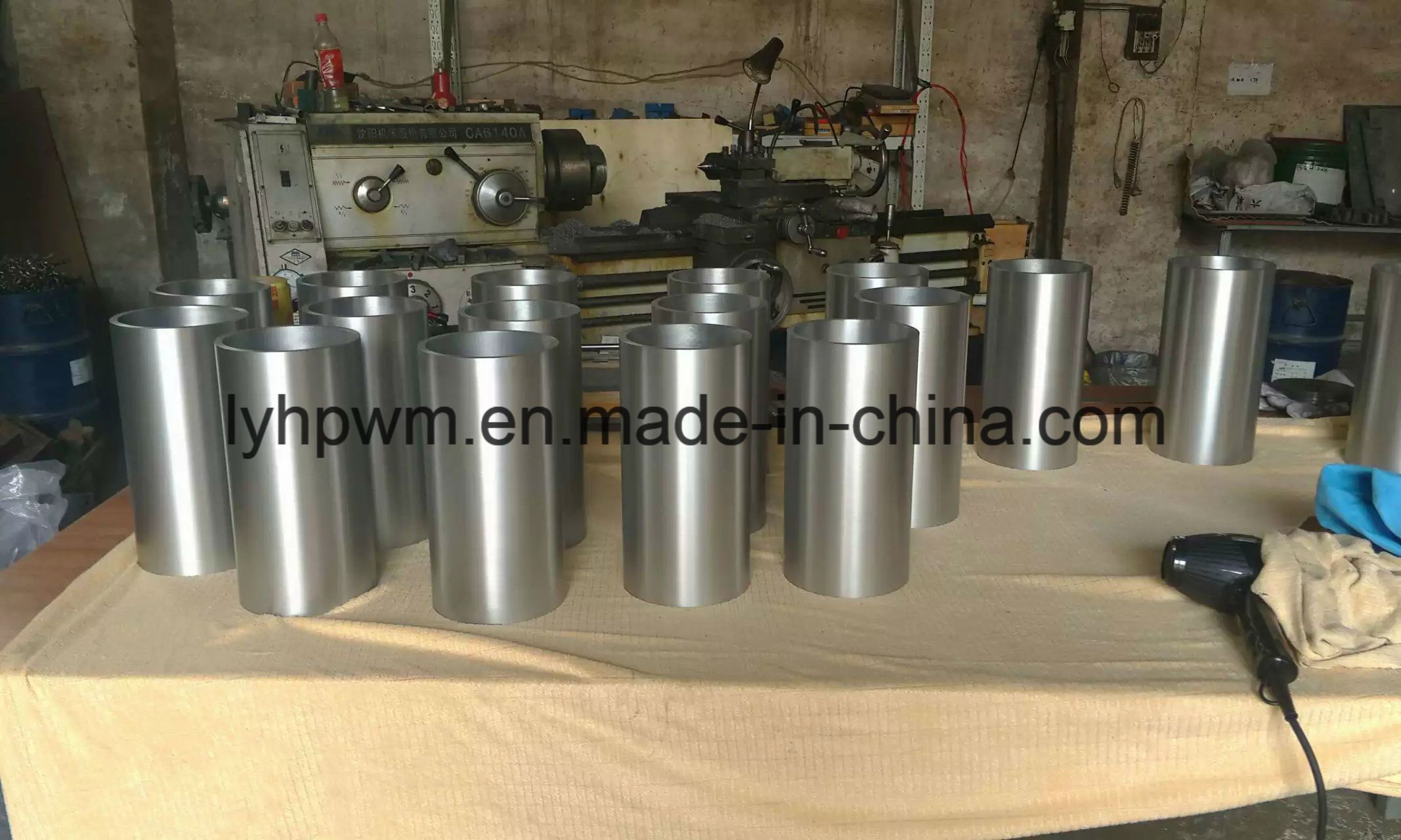

Our relavant tungsten tubes tungsten crucible photoes and packing photoes if you are interested in them
Standard and safe Packing
1)paper wrapped the sheets, then plastic paper protected from moisture
2)Foam board around the the inner wooden case
3)Standard exported plywood case outside
Delivery time:
10-35days as your required qty.
The Advantage of Luoyang HuaPei Tungsten&Molybdenum Material Co.LTD
1) leading producer, more than 15 years producing experience
2) low price in the market,factory direct sales.
3) the whole production line from powder to finished products, top and steady quality assured
4) fast delivery and best after-sale service
Luoyang Huapei Tungsten&Molybdenum Material Co. Ltd is located in Luoyang city with molybdenum capital, get close to molybdenum mine of Luanchuan Country.
With superior molybdenum raw material condition, we mainly produce Molybdenum(Mo), Tungsten(W), Titanium(Ti), Tantalum(Ta)&Niobium(Ni) metal and their alloy products.
Our main products
Tungsten product: Tungsten wire, tungsten rod, tungsten sheet and plate, tungsten electrode, tungsten copper alloy, tungsten carbide alloy, tungsten heavy alloy(WNiFe, WNiCu), Tungsten crucible/tube/disk/pipe, tungsten sputtering target, Tungsten ball, tungsten flytying beads, tungsten weight, etc.
Molybdenum product: Molybdenum wire, molybdenum bar&rod, molybdenum sheet, strip, foil and plate, molybdenum copper, molybdenum lanthanum(Mola), TZM, molybdenum electrode, etc.
Titanium product: Titanium wire, Titanium sheet, Titanium rod, Titanium plate, Titanium pipe.
Tantalum product: Tantalum wire, Tantalum sheet, Tantalum rod, Tantalum plate, etc.
Niobium product: Niobium wire, Niobium sheet, Niobium rod, Niobium plate, etc
Under our work team coordination and skilled approach, we have come into being a complete company with the advance management concept, and trustworthy product, and fast delivery that is well-approved by the enduser.
We are willing to provide the best products and services in resaonable price for all our customers, and sincerely welcome you to visit and guide, and seek development together.
