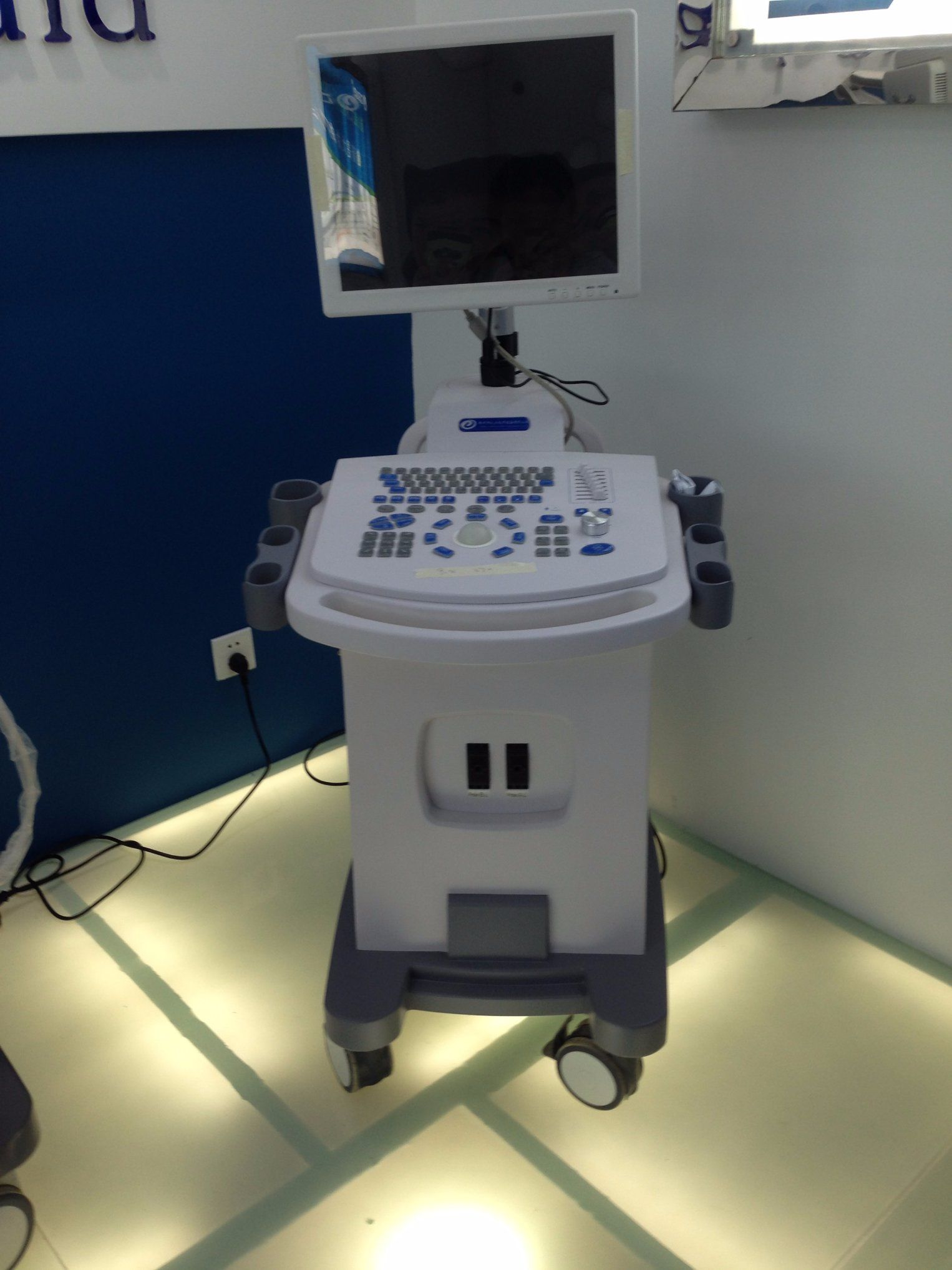

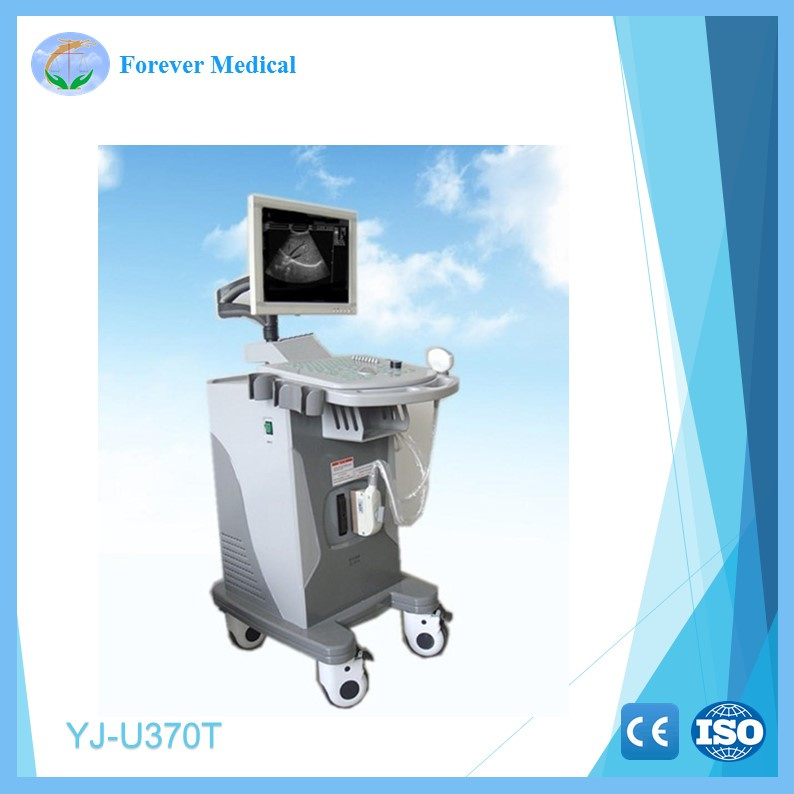

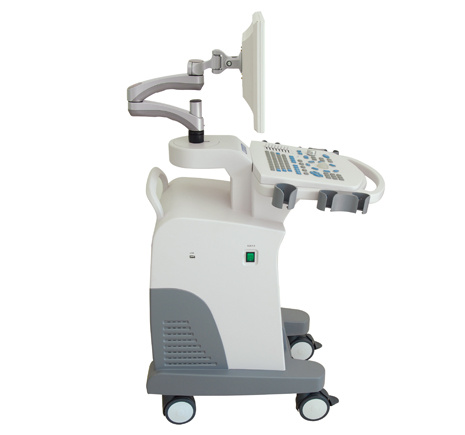

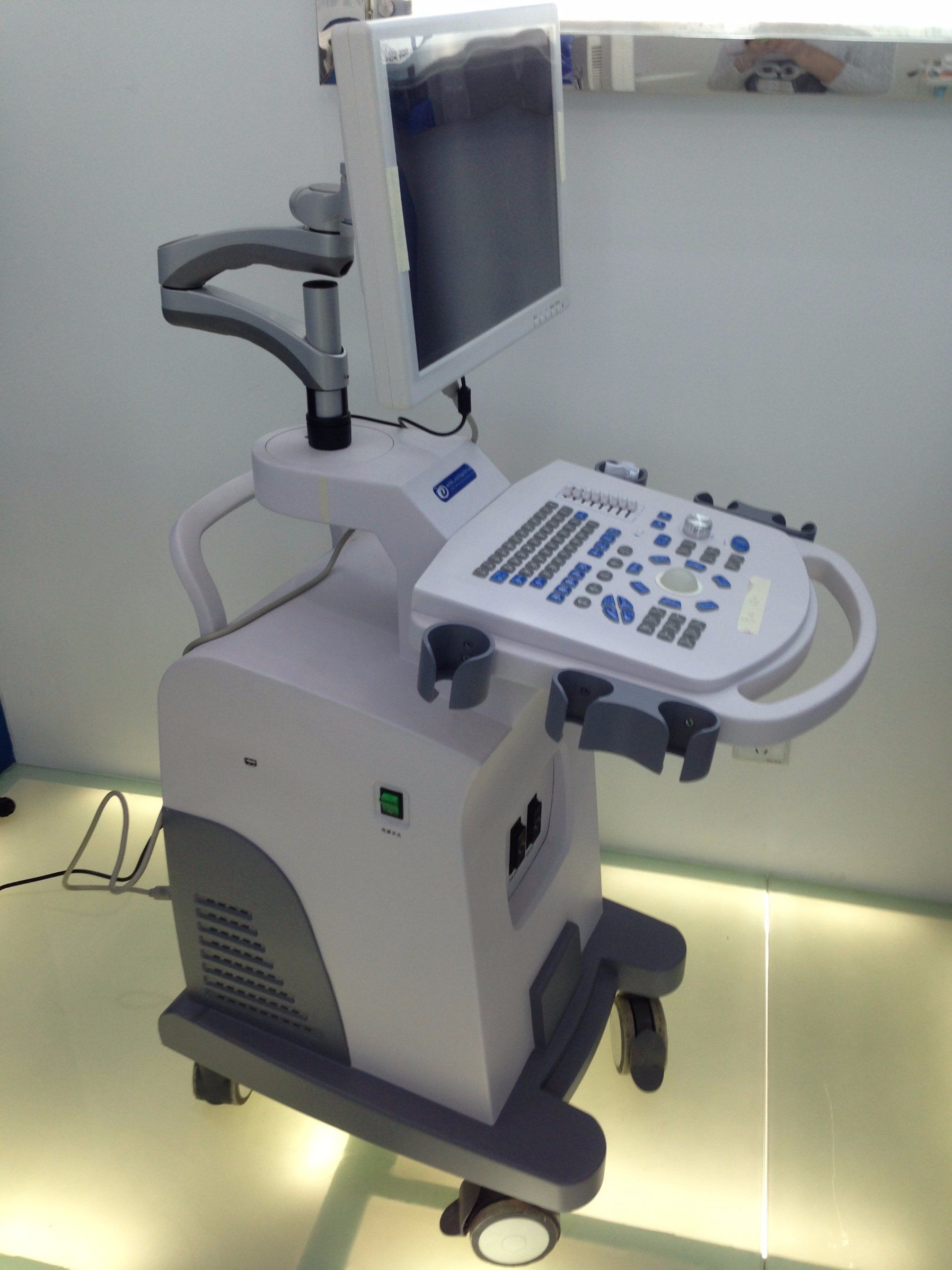

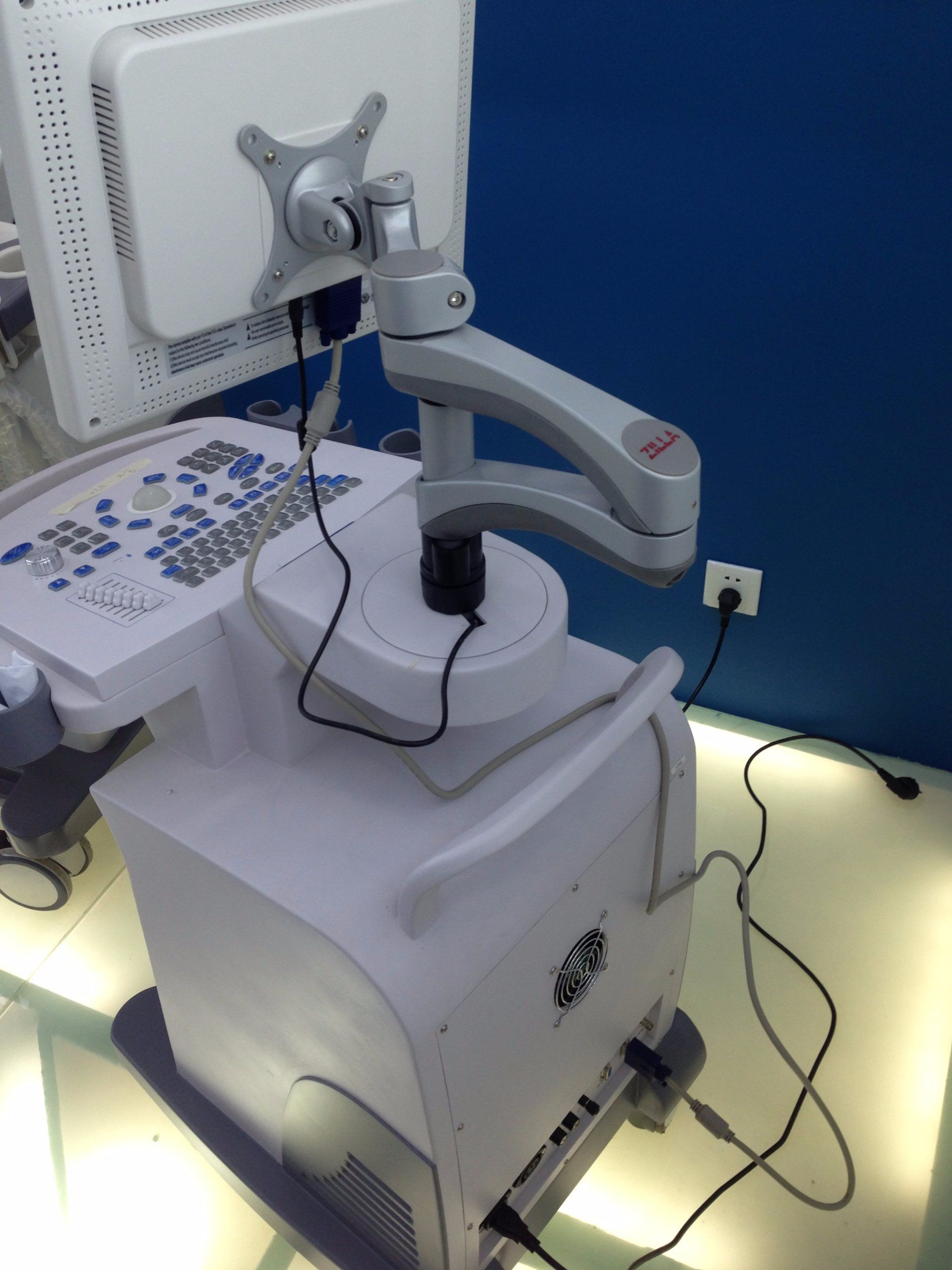

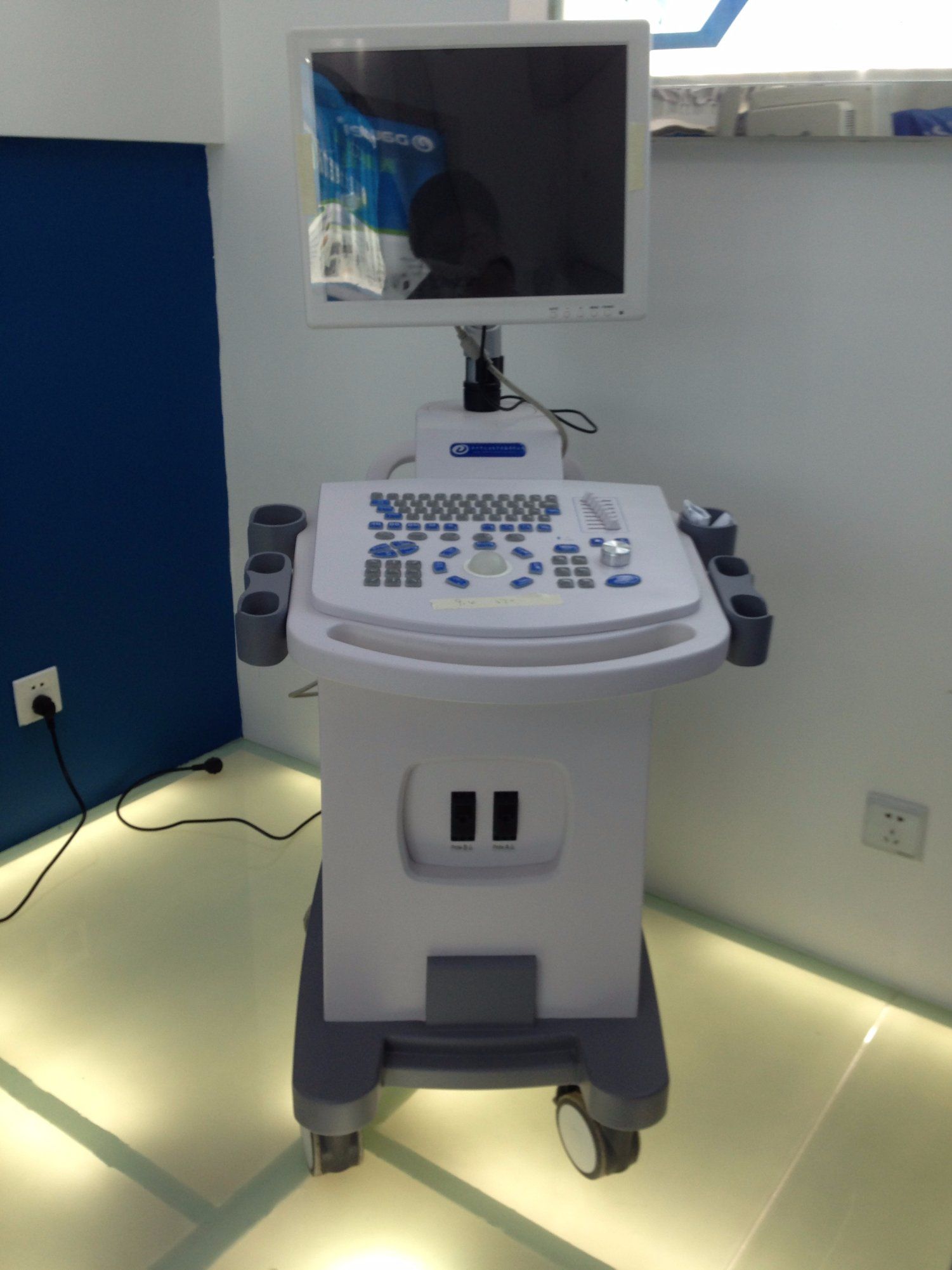

Yj-U370t Full Digital Trolley Ultrasonic Scanner
| Price: |
US $ 3845/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Description
Full-digital Trolley Ultrasound Scanner
First-class digital imaging technology, more clearer image:
Full-digital beam imaging technology
Real-time dynamic receiving focus point by point
Real-time dynamic sound velocity changed
High-accuracy DSC Digital image formation technology
Intelligentized 8-segment TGC adjustment
Progressive SMT components technology to ensure machine reliability
USB port: storable and readable
Flexible and convenient operating system:
15 inch LED liquid crystal display, angle range is more flexible to adjust
Back-lit keyboard silicon gel,more comfortable and wearable,no trouble in using in the darkroom
Intelligentized menu,man-machine diaglogue is easy and quick
Puncture guide line can display under B mode, angle and position are adjustable
More magnification display, Disease diagnosis more accurate
USB storage is connected outside, more convenient to upload pictures
Large capacity of cine loop,image can display circularly and automatically
Technical Specification :
Scanning mode: convex / linear / micro-convex
Probes: 96 elements convex probe,trans-vaginal probe, trans-rectal probe, high frequency linear probe
Monitor: 15 inch high resolution LED
Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation
Display mode: B, B+B, B+M, M, 4B
Detecting depth: ≥242mm
Resolution: lateral≤2mm, axial≤1mm
Blind Zone: ≤3mm
Geometry precision: lateral≤5%, axial≤5%
Gray scale: 256
Electronical focusing: 2 focuses combination randomly
Cine loop: 256 frames, realized in automatic successive playback and manual single step forward,backward playback
USB port: storable and readable
Image storage: 8
Local zoom can be used at real time.
Magnification: ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds)
Body marks: 30
Probe interface: 2
Pseudo color: 7
Image processing,: up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor( need external color display).
Measurement: distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD ,maternity table, heart package etc.
Note: date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion.
Output interface: PAL-D, SVGA (SVGA color monitor), USB port .
With the puncture guiding function, line position can be adjusted
With gravel positioning, dynamic target area tracking function
Main power supply: AC220V±22V , 50/60Hz
Standard configuration:
15 inch high resolution LED

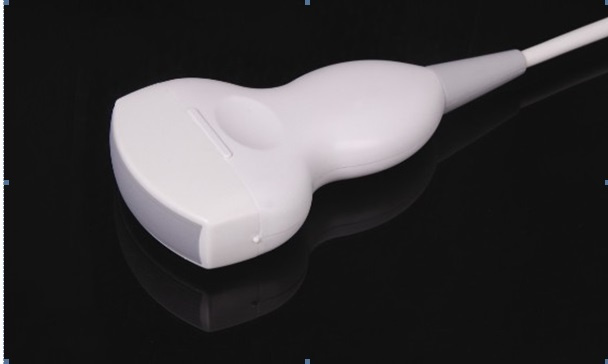

3.5MHz Multi-frequency convex probe(2.5MHz-5.0MHz)
Transducer Types
Probe | 5 Steps Multi-frequency |
| 3.5Mhz convex probe | (2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz) |
| 6.5Mhz transvaginal probe | (5.0/ 6.0/ 6.5/ 7.5/ 9.0Mhz) |
| 7.5Mhz linear probe | (6.0/ 6.5/ 7.5/ 10.0/ 12.0Mhz) |
| 3.5Mhz micro convex probe | (2.0/ 2.5/ 3.5/4.5/ 5.0Mhz) |
| 3.5Mhz phased array probe | (2.1/ 3.0/ 3.5/ 4.0/ 5.0Mhz) |
| Prod Model: |
YJ-U370T |
| Model No.: |
Yj-U370t |
| Probe Transducer Types: |
3.5 MHz Convex Probe |
| Display: |
15 Inch High Resolution Monitor |
| Gray Scale: |
256 |
| Focus: |
Continuous Dynamic Focus |
| Keyboard: |
Light Floating International Standard |
| Classification: |
Imaging Diagnostic Equipment |
| Memory: |
Cine‐memory |
| Detecting Depth: |
220mm |
| HS Code: |
9018129100 |
