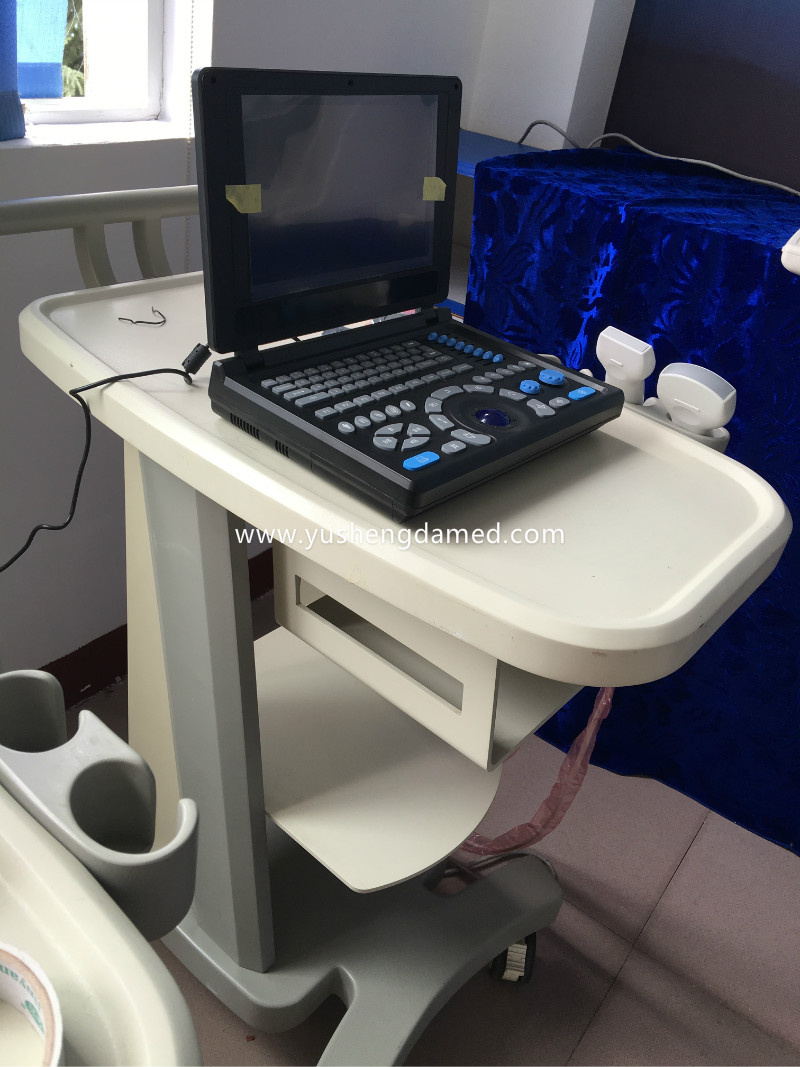

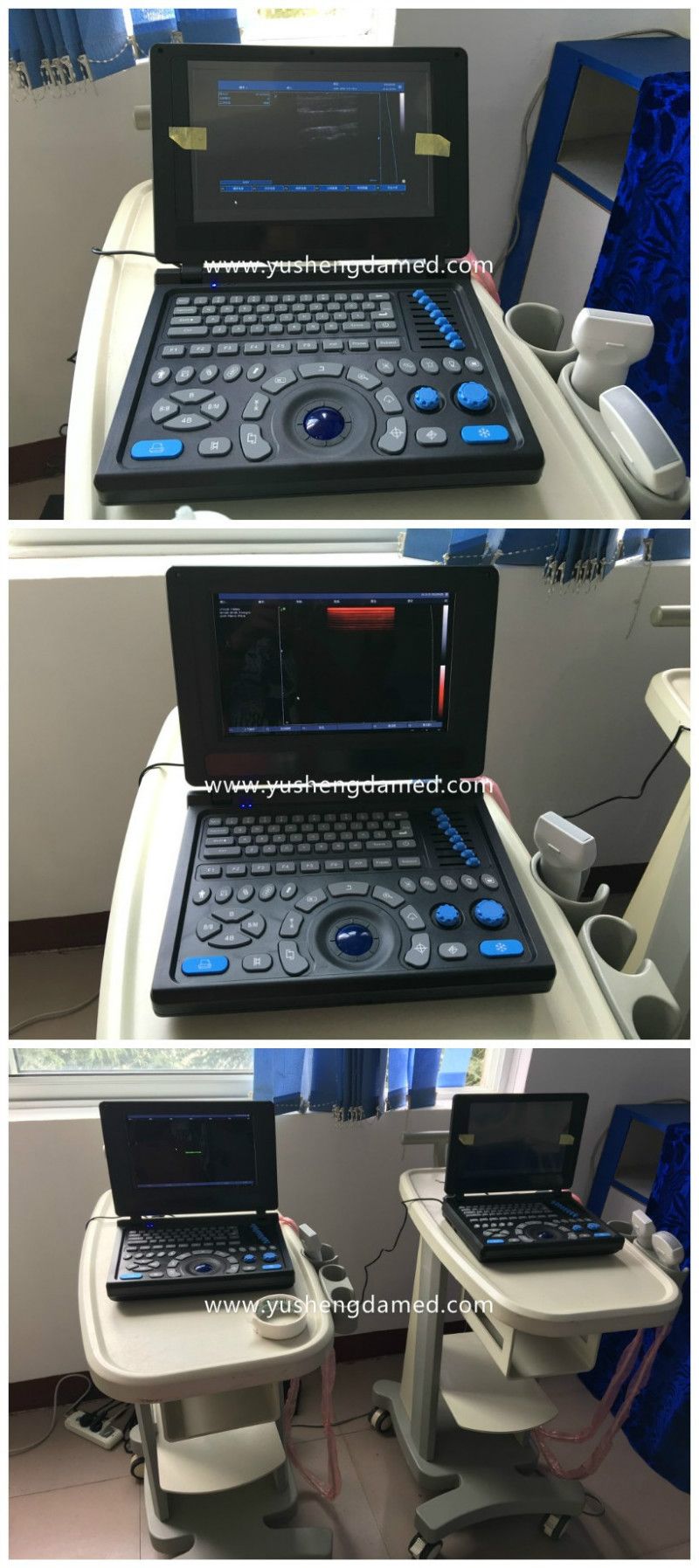

Main Feature:1.Dual interface
2.Can directly matche video,laser,ink jet printers to print report,no need any software,and image is real.
3.Can directly connect various kinds of probes with different elements,different specifications and different applications.
4.Equipped with lithium battery,which can be used more than four hours when the power is off.
5.Advanced and reliable pure digital PC platform,backlit silica gel keyboard.
6.Net weight:2.9kg,packaged by metal suitcase,light and easy to carry.
7.High definition 10.4/12.1 inch medical liquid crystal display.
8.with 3D reconstruction function
Technical Parameters:Product Name: Full Digital Diagnostic Ultrasound System
Display Mode: B, B/B, B/M, M, 4B, 9B
Scanning Mode: Electronic Convex/ Linear/ Micro-convex
Depth:240mm
Screen:10.4//12.1/inchwide screen LED
*Probe Connector:2
Resolution:longitudinal≤1mm;horizontal≤2mm
Output Connecter:USB, DICOM, VGA
Gray Scale:256
Time Gain:gain:0~100dB;
TGC:8 segments,it can separately adjust under B Mode and M Mode
*Storage:image save,cine loop,big memory capacity≥10G. measurement results storage,report storage.
Cine Loop:64,128,256,512 frame auto/manual
Patient Information: Hospital Name ;Patient Name ; Record Number; Age; Gender; Record Save;
Focus:1-4 focuses, it can be combined by different methods and removed
*Zoom, Partial Enlargement:16 levels zoom,1-4 Real-time partial enlargement
Comments function:comments function in picture are Comments function in patient information
Chinese and English:operation interface can realize the change of Chinese and English
Body Mark:140
*multi-frequency check :THI5 segment frequencies+THI for check
*Have 3D software function
*Color Display: more than 40 kinds
AC/DC amphibious
*Report:display report, save report.
* Variable Angle scanning:25%,30%,35%,100% in total 16 levels angles
Image processing:image front-processing,image post-processing,dynamic range,frame correlation, line correlation, edge enhancemen, W/B overturn,L/R overturn, UP/DOWN overturn,gray project, gray curve, contrast, brightness, V correction, noise reduction
*Measurement and Calculation
Basic measurement in B mode:distance, circumstance, area, volume, angle, histogram, cross-section diagram, thurl angle;
Basic measurement in M mode:heart rate, time,slope;
Abdominal measurement:liver,gallbladder, kidney, pancreas,spleen;
Gynecology measurement:uterus,cervix uterus, endometrium, ovary, ovarian follicle, hydatoncus, enclosed mass;
Obstetric measurement:AC,BPD,CRL,FL,THD,GS,OFD,HUMERUS,TIDIA,ULNA,HC,TAD,APTD,FTA. It can measure the age of fetus, weight of fetus, AFI, the analytical report of fetus and the growth curve;
Cardiology measurement:LV,LV function,aorta, mitral valve;
Urology measurement:Left renal volume, Right renal volume, RUV,prostate kidney;
Small organs measurement:ophthalmology, thyroid,jaw and face;Teachnical data: Scanning mode
| convex / linear / micro-convex
|
Probe
| convex, linear, transvaginal, rectal |
Monitor
| 12 inch high resolution LCD |
Operation panel
| user-friendly, convenient and flexible with back-lit silica gel keyboard
& track ball operation |
Display mode
| B, B+B, 4B, B+M, M |
Scanning depth
| more than 240mm |
Resolution
| lateral≤2mm, axial≤1mm |
Blind zone
| ≤3mm |
Geometry precision
| lateral≤5%, axial≤5% |
Gray scale
| 256 |
Electronical focusing
| 2 focuses combination randomly |
Cine loop
| 256 frames, realized in automatic successive playback and manual
single step forward, backward playback |
Permanent image
storage
| 1024 |
Magnification
| ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40,
×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds) |
Body mark
| 120 |
Probe interface
| 2 |
Pseudo color
| 8 |
| Image processing | up/ down, left / right, black / white convertion, edge enhancement,
gamma correction, frame correlation, pseudo color processor
( need external color display)
|
Measurement
| distance, perimeter, area, volume, heart rate, gestational week,
FW, AFI, EDD , maternity table, heart package etc
|
| Note | date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion
|
Output interface
| PAL-D, SVGA (SVGA color monitor), USB port |
Main power supply
| AC220V±22V , 50/60Hz |
| No. | Title | Quantity | Remarks |
| 1 | Host | 1unit | |
| 2 | Convex-probe(C3.5MHzR60) | 1unit | |
| 3 | Power Adapter | 1unit | |
| 4 | Lithium Battery | 1unit | |
| 5 | Aluminum Box | 1unit | |
| 6 | User manual | 1unit | |
| 7 | Certifications | 1unit | |
| 8 | Warranty Card | 1unit | |
Chengdu Yushengda Technology Co., Ltd. Is a hi-tech limited company engaged in developing, producing and selling medical ultrasonic diagnosis apparatus. The company has high-qualified professional stuffs in researching, producing, marketing and management. There's a brand-new manufacturing plant and advanced suit of equipment for producing and inspecting the products. It Can produce 5, 000 sets of ultrasound scamner and more than 10000 hospital bed per year.
The YSD series of B-mode ultrasonic diagnosis devices adopt super-scale integrated electro circuit and new SMT technic. The quality of products is stable and credible. It has passed the medical ultrasonic quality monitor and inspection center. The technical and safe standards are all conformed to the GB10152-1997. Since 2003, it was awarded "high-quality, keeping regulation, good faith" honored enterprise of Sichuan.
The spirit of the company is"unity, sincerity, factualness, innovation". We all try our best for"true feelings to customer, diligent permanently for innovation, improving continuously for quality, creating brand by sureness", which makes more satisfaction to customers. The company has been carried out the quality managing system of YY/T0287-2003, won the certificate of medical device quality managing system. The products are sold to domestic markets and overseas markets, such as Europe, Africa. The products are becoming more and more popular.
We'll stick to our policy and work harder all the time in order that we can provide more and better products, and making contributions to the development of national medical devices and people's health!
