3A molecular sieveThe pore size of 3A molecular sieve is 3 Å . It does not adsorb any molecular larger than 3 Å. It is an alkali metal alumino-silicate, the potassium form of the typ A crystal structure. It will adsorb, in sequence of adsorption rate, helium, neon, nitrogen and water.
According to the industrial application specialties, we endue our products with the characters of higher adsorption speed, stronger crushing and anti-contaminative resistance, more cyclic times and longer work-span. All these advantage have made it come to be the most essential and necessary desiccant in the fields of the deep drying, refinery, polymerization for cracked gases, ethylene, propylene and any other non-acidic gases or liquids in petroleum and chemical industrials.
Typical Chemical Formula
XK2O .Y Na2O . Al2O3 . 2 SiO2 . 4.5H2O (X+Y=1)
SiO2 : Al2O3 ≈2
Technical Property of Molecular sieve 3A| Item | Unit | Technical data |
| Shape | | Pellet | Sphere |
| Diameter | mm | 1.5-1.7 | 3.0-3.3 | 1.6-2.5 | 2.5-5.0 |
| Size ratio up to grade | % | ≥98 | ≥98 | ≥96 | ≥96 |
| Bulk density | g/ml | ≥0.65 | ≥0.65 | ≥0.70 | ≥0.70 |
| Wear ratio | % | ≤0.20 | ≤0.25 | ≤0.20 | ≤0.20 |
| Crushing strength | N | ≥45/cm | ≥60/cm | ≥45/piece | ≥60/piece |
| Static water adsorption | % | ≥20 | ≥20 | ≥20 | ≥20 |
| Ethylene adsorption | ‰ | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 |
| Water content, as shipped | % | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
ApplicationsDehydration of many kinds of liquids (say Ethanol).
Dehydration of air.
Dehydration of Refrigerant.
Dehydration of natural gas or methane.
Dehydration of cracked gas, ethylene, ethyne, propylene or butadiene
Type 3A molecular Sieve is recommended for drying unsaturated hydrocarbons and highly polar compounds such as methanol and ethanol. The 3A structure is particularly effective in dehydrating the inner space of insulating glass windows as well as refrigerant gases.
RegenerationMolecular Sieve 3A can be revived for reuse and the required factors for revival are temperature and pressure. To remove the adsorbed moisture and other materials, the revival condition shall be set up considering the features of target material and processing environment. The general revival temperature of Molecular Sieve 3A is about 200-350ºC.

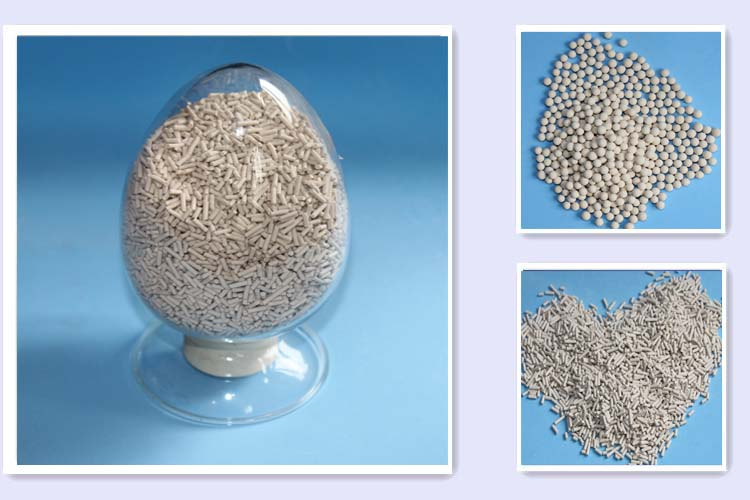

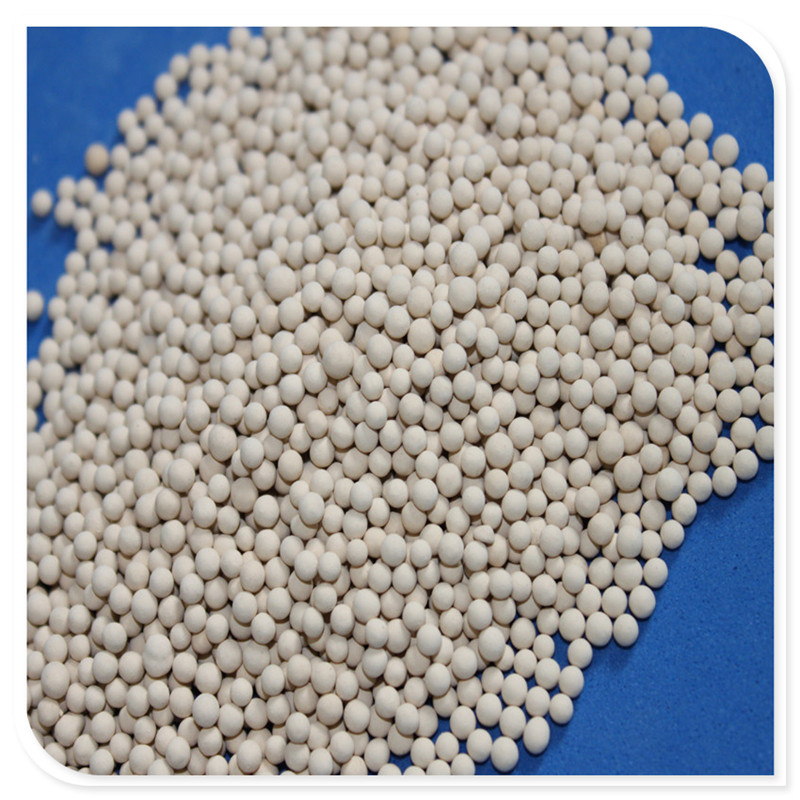

Product picture

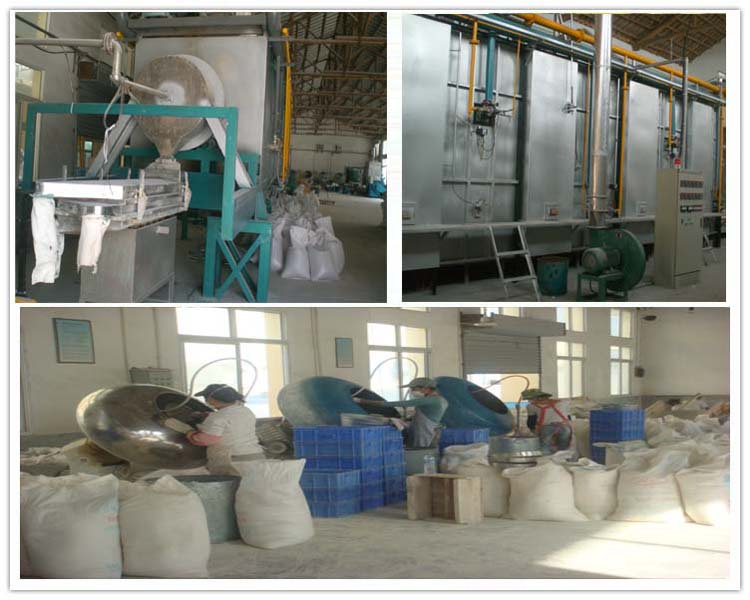

Production line
Packing information
Certificate
Customer visit
Service
FAQQ: What is your experience in your products?
A: We have over 20 years experience in this industry line. We are professional manufacturer in this area.
Q: What is your MOQ?
A: The MOQ is different as per different products, for example, 1 Ton for ceramic ball.
Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production.
Q: What is your production time?
A: We have large stock for standard products. For non-standard product ,it will take 7-10 days after order and details confirmed.
Q: What are your payment terms?
A: We accept T/T, L/C for big amount, Western Union for small amount.
Pingxiang Global Chemical Packing Co., Ltd. (PGCP), is located in Gaokeng Industrial Park, Pingxiang, Jiangxi Province. It can produce ceramic, metallic and plastic tower packings, ceramic balls, molecular sieves, catalysts, activated alumina, petrochemical additives, activated carbons and filtering materials etc. Used in chemical and petrochemical industries.
Since established, the PGCP has made great achievements, developed a lot of new products, acquird the certificate of ISO9001-2000 and set up a pleasant cooperative relationship with the wide circles of the users, material suppliers, scientific research institutes and engineering design institutes. In 2006, we drafted chemical industry standards HG/T3986-2007 for Technology Condition of Plastic tower packing and HG/T3927-2007 for Industrial Activated Alumina with the National Non-metallic chemical equipment Standards Committee and the National Chemical Standard Committee. Our general engineer took part in drafting national chemical industry standard, that is HG/T 3683.1-2000 Industrial Ceramics Ball-Inert Ceramics Ball and HG/T 3683.3-2000 Industrial Ceramics Ball-Perforated Ceramics Ball. The new developing products HQ-HK slotted & perforated ceramic balls, high efficiency HQ-HK slotted & perforated supporting agent and high efficiency HQ-HK slotted & perforated protecting agent have the national patent, the number is ZL2005 3 0048184.0. Besides these ones, we have other patent products, that is HQR ring (ZL 2005 3 0048180.2) and HQ eight columns arcs link (ZL2006 3 0147956.0).
Based on the long history, the scientific management, the strong technical forces and the advanced equipments, the PGCP has wined much praises and trust from the customers by its first-class products and the perfect services. Insisting on the principle of Customers First and Quality Best, we will do our best to strive after, to create a more brilliant future with all friends.
