ZX1030A Single Phase AC Standard Portable Power Source factory price

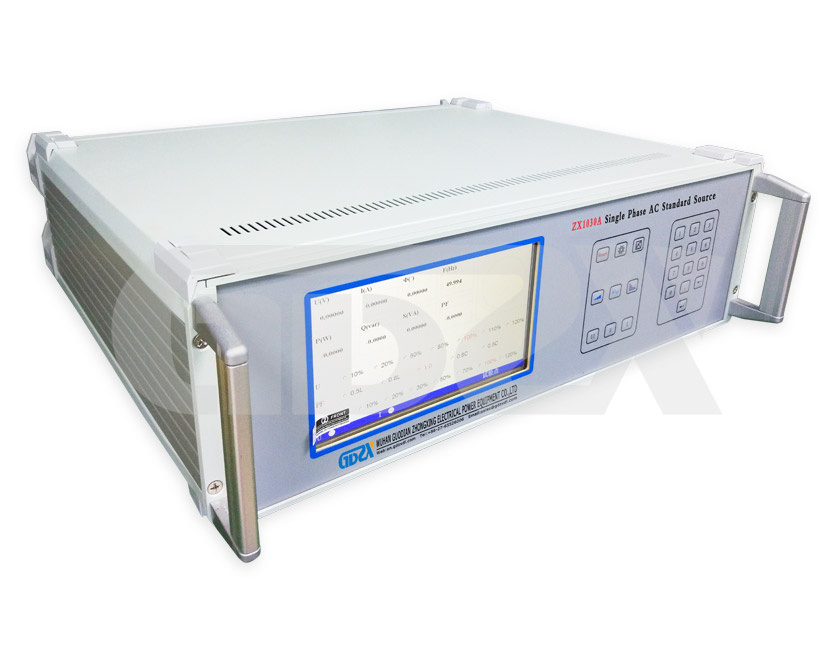

Name: ZX1030A Single Phase AC Standard Portable Power Source factory price
Brand: china-crystals.com
SKU: 840146905
Availability: InStock
Rating: 4.6 (41 reviews)

Price:	US $ 10000-15000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Features

1. Built-in digital multiple function standard meter with Integrated structure of meter and power source, electrical parameters can be read via software

2. adopts DDS technology, CPLD and RAM embedded system, featured with high stability of signal source output, small fineness, low distortion

3. RAM system large color LCD display, massive information can be seen directly through screen

4. use PWM digital power amplifier with above 90% efficiency and 300KHz carrier frequency, to have advantages of low distortion, little heating, high efficiency

5. Perfect protection function: voltage short circuit alarm, open circuit and over load alarm

6. Built-in OCXO for 50KHz high precision impulse output, which can be used to calibrate energy meter clock, also can test day error/hour segment error when matching with meter calibration software (optional)

7. With 485 communication interface, can do various communications test for universal meters (optional)

Technical Indicators

1. Instrument accuracy level: 0.1

Built in meter accuracy level: 0.1

2. Output voltage: 0~280V

Rated voltage range: 100V~240V (any value can be set)

Regulation amplitude: 0~120% each gear

Regulation fineness: better than 0.01%

Built-in 3 terminal independent voltage circuit, each terminal output capacitance ≤15VA

3. Output current: 0.025A,0.1A,1A,5A,25A,100A

Regulation range: 0~120% continuously adjustable

Regulation fineness: better than 0.01%

Minimum output current: 5mA accuracy: ≤0.5%

4. Output power: voltage circuit ≤100VA, current circuit ≤180VA

5. Stability of output voltage current power : ≤0.05%/120S PF=1

6. Output voltage current waveform distortion: ≤ 0.5%

7. Frequency range: 45Hz~65Hz regulation fineness: 0.1Hz

8. Phase range: -180.0° ~180.0°regulation fineness: 0.1°

9. Indicating instrument accuracy level: voltmeter,ammeter ±0.2%

Phase meter accuracy ±0.3°

Frequency meter accuracy: ±0.1Hz

10. Meter numbers: 1 - 6 pcs

11. Standard crystal oscillator: 2×10-7 (optional)

12. Power supply: AC 220V±10%~50Hz

13. Maximum power consumption: 300VA

14. Working environment: temperature 20ºC±5ºC relative humidity≤85%

15. Size and weight: 450×156×500 mm, 20Kg

Prod Model:	ZX1030A
Warranty:	1 year
Control:	Computer Control
Display:	Digital
Keyword:	Standard Power Source

Wuhan GuoDian ZhongXing Electrical Power Equipment Co., Ltd ( GDZX ) is located in DongHu High Technology Development Zone, Wuhan City, People's Republic of China. The company established in 2012 and the factory area 6000 square meters. Good quality and customer satisfaction are always the goal here.

Our main products are Hipot Test sets, Standard Power Source, Circuit breaker analyzer, Protection relay tester, Resistance Tester, voltage generator, Transformer testing series, Oil tester, Cable and Ground fault testing series, Power quality analyzer, Storage battery tester, Lightning arrester tester and other instruments. Most of the products are featured with Intelligent design, compact structure, simple operation, which make the on site work very convenient.

Not only we are the supplier of China Power Grid System but also we are extending our business to all over the world. In the last two years we made business relationship with customers from Indonesia, Kenya, Ecuador, Japan, Korea, and we are keeping growing. It is exciting to work with your partners from every different countries.

Your any requirement is our pursuit. Welcome to Visit Us
