Product Specifications
| Prod Model: |
TSM10WF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Applied Material: |
Plastic, Alloy ABS, MDF Plywood, Metal |
| Marking Range: |
100mmx100mm |
| Graphic Format: |
Ai, BMP, Pit, Dxf, Dst |
| Laser Power: |
10W |
| Tag Line Speed: |
300text/S 7000mm/S |
| Repeat Accuracy: |
+0.003mm |
| Laser Repeat Frequency: |
20kHz-80kHz |
| Min Line Width: |
0.03mm |
| MOQ: |
5sets |
Product Description
Feature:
1 Good quality laser beam,USB control,,optical broad beam focusing System and high speed galvo scanner,stable performance,long life expentancy,free of maintanenc
2 Widely used in the field of IC electronics,medical,good,crafts,leather and plastic products,etc
3It can be usely separately or linked with other machine in the work flow line
4The marking affect and speed fit very well with the bulk production which need high work speed,good quality
5The vector marking software support Autocad photoshop,etc. Powerful system is easy to operate
6 Permanent logo/number is as well beautiful for eye sight
7 Air cooling system,save power consumption
8 The laser repeat frequency is high and no deformation
Technical parameters:
1, marking speed: max 300text/s 7000mm/s
2, marking depth: 0.01mm ~ 0.3mm
3, the minimum line width: 0.03mm;
4, the minimum character: 0.15mm;
5, repeat accuracy: 0.003mm
6, laser Power:10W
7 laser source:fiber laser tube

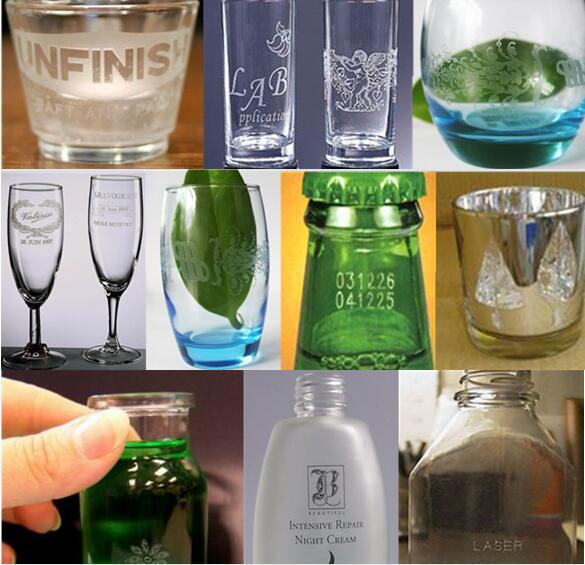

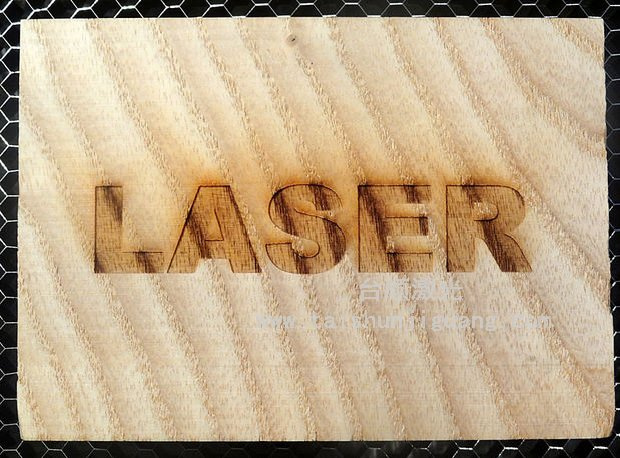

Samples
Repair tips:
| Line# | Problems arised | Root cause | Solving method |
| 1 | No singal for power light | The power is off | Open the power button |
| The power line isn't connected | Connect the power line |
| The power is broken down | Change a new power indicator |
| 2 | No singal for the laser light | The laser light is broken down | Change a new power indicator |
| 3 | laser light is ON | The lens head is covered | take off the lens head |
| No laser beam | The power rate is too low | enhance the power rate |
| 5 | Laser light is off | | |
| No laser beam | no connection to the singal line | re-connect the singal line |
| 6 | Laser light is OK | laser light is broken | Change a new one |
| Laser light is Off | laser light is loose weld | weld the laser light |
| 7 | The etch is uneven | the workpiece is not in the field lens surface | Put the workpiece on the field lens |
| 8 | Some are clear but some are not for the texts,images | Marking surface is not paralleled with the field lens | adjust the workpiece |
Our machine series:
CO2 Laser Engraving and Cutting Machine for most of the non-metal materials.
Laser Marking Machine fiber laser marker for meta tag,hardware,circuit board,machinery,plastic marking of barcode,symbol,texts,;CO2 laser marker for nonmetal (fabric,leather,textile,PU,paper,cardboard,PVC,etc) of barcode,images,floral,flying dynamic marking effects.
Metal laser Cutting Machine:YAG metal laser cutting machine(can 7-8mm Mild Steel and 5-6mm carbon Steel ), Fiber metal laser cutting machine( can cut 8-12 mm Carbon Steel )
Order Notice
Please let us know following informations:
1. What materials you want to mark?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. Where do you want to use them for?
5. Are you an end user or retailer?
According to your above information,we'll recommend the most suitable machine to you.
