Product Specifications
| Prod Model: |
1212 |
| Service: |
Engineers Available to Service Machinery Overseas |
| Spindle Power: |
1.5kw Water Cooled Spindle |
| Motor: |
Stepper Motor |
| Warranty: |
One Year |
| Machine Size: |
1650*1500*1250 |
| Operating System: |
Ncstudio |
| Transmission: |
Tbi Ball Screw |
| Material Fixed: |
Fixture Fixed |
| Machine Structure: |
Steel Structure Bed, Aluminum Table |
| Maximum Working Speed: |
10000mm/Min |
Product Description

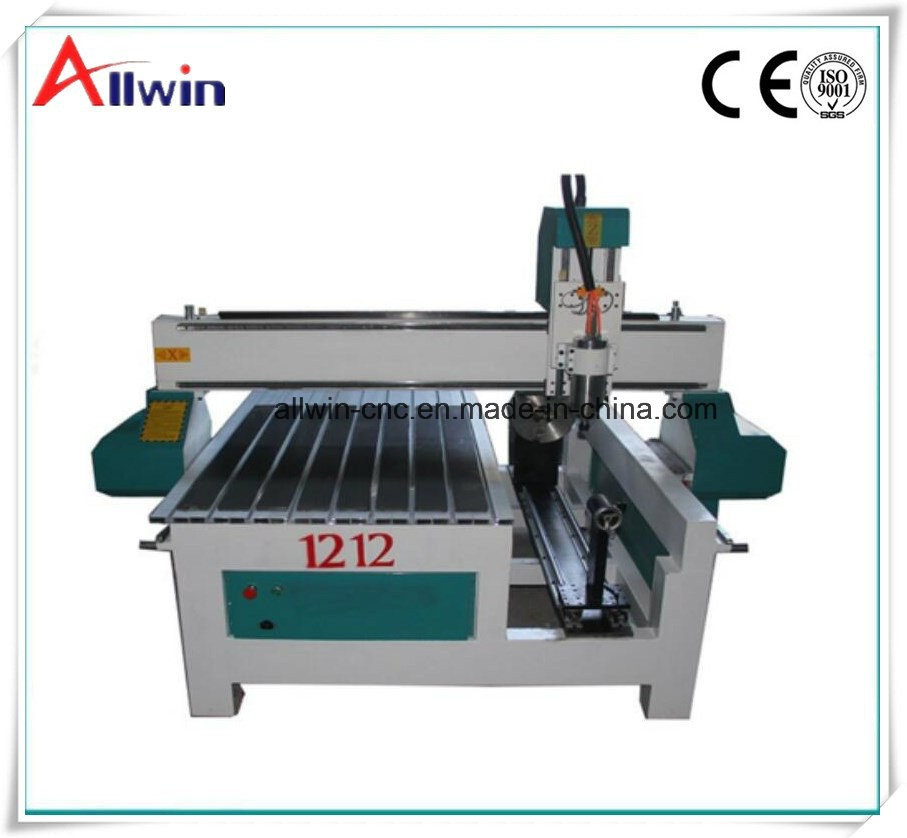

CNC woodworking machine with 4 axis cnc router 1212
Advantages:1.Advertising/artwork/woodworking/cutting
2.CE, SGS,ISO
3.Customized:Yes
4.High sensitivity
5.High efficiency
6. Warranty: 1 year
7. Engineers Available to Service Machinery Overseas
8.Door-to-door technical service and 24 hours technology online support Application Industry and Materials:Advertising industury: Cnc router can engrave all kinds of signage,logo products, trademarks, nameplates, badges, decorative gift, embossed
medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc. Artwork industry: In the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.Feature:1.Whole machine is welded with seamless steel structure, with aging treatment.
2.Three axies adopt Taiwan HIWIN high precision linear rail.
X and Y axes adopt rack and pinion transmission, fast working,high efficiency. Z axis adopts ball screw,with high precision and long life time.
3.Well compatibility: CAD/CAM designing software e.g.
Type 3/ Artcam/ Castmate/ Ucancam etc.
4.Industrial control system ,professional electronic parts,perfect function,stable performance,strong compatibility of software .
Specifications:
machine type | DSA1212 Advertising engraving machine | Optional accessories |
work plan | 1200*1200*150 | customizable |
Machine structure | Steel structure bed, aluminum table | Vacuum adsorption table |
Machine size | 1650*1500*1250 | |
Spindle power | 1.5KW Water cooled spindle | 2.2KW/ Specified Power Air Cooled / Multiple heads |
Maximum working speed | 10m/min | |
Operating Voltage | AC220V/50HZ | |
operating system | Weihong system | DSP handle or designated system |
Way of working | Stepper motor | servo motor |
Engraving instruction | G Code,HPGL,U00,mmg,plt | |
Material fixed | Fixture fixed | |
Available tools | φ3.175-φ12.7 | |
XYZ orbit | Three-axis compass /XZ Compasses,Y axis High precision square rail | Three-axis square track |
transfer method | Ball screw drive | |
Resolution | 0.01mm | |

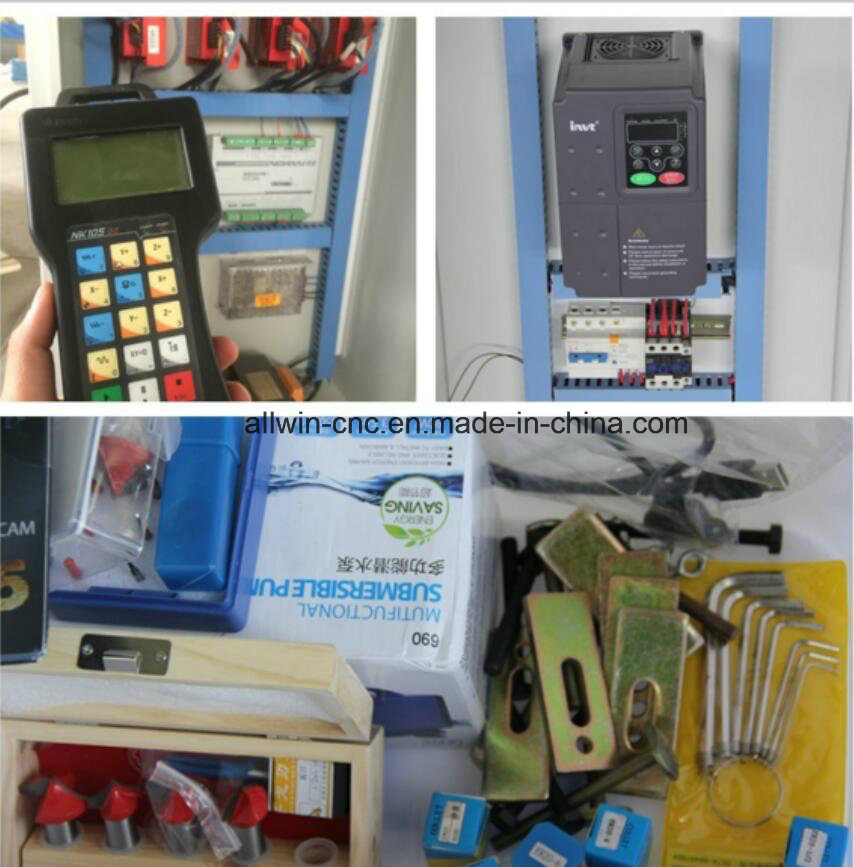

Details:

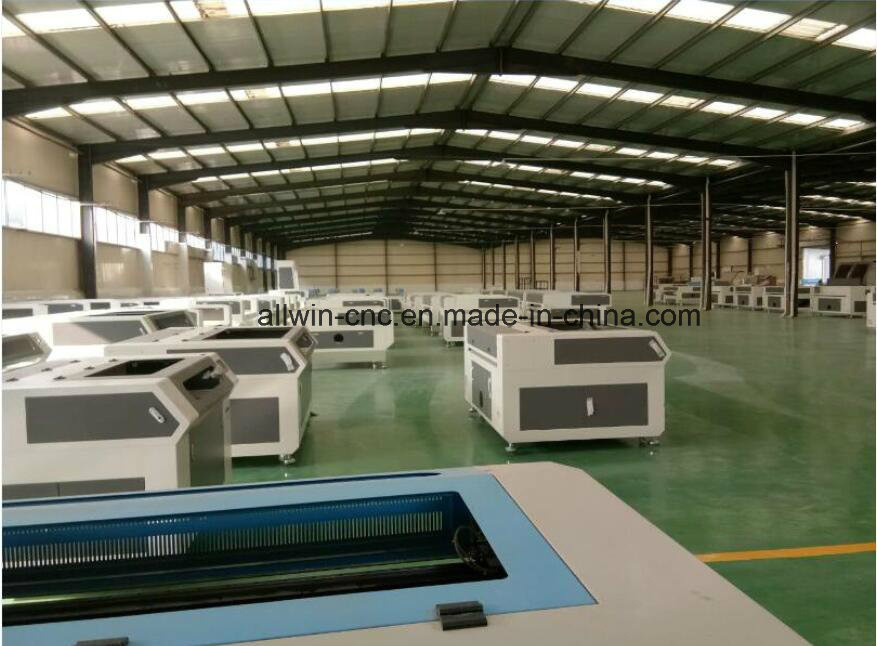

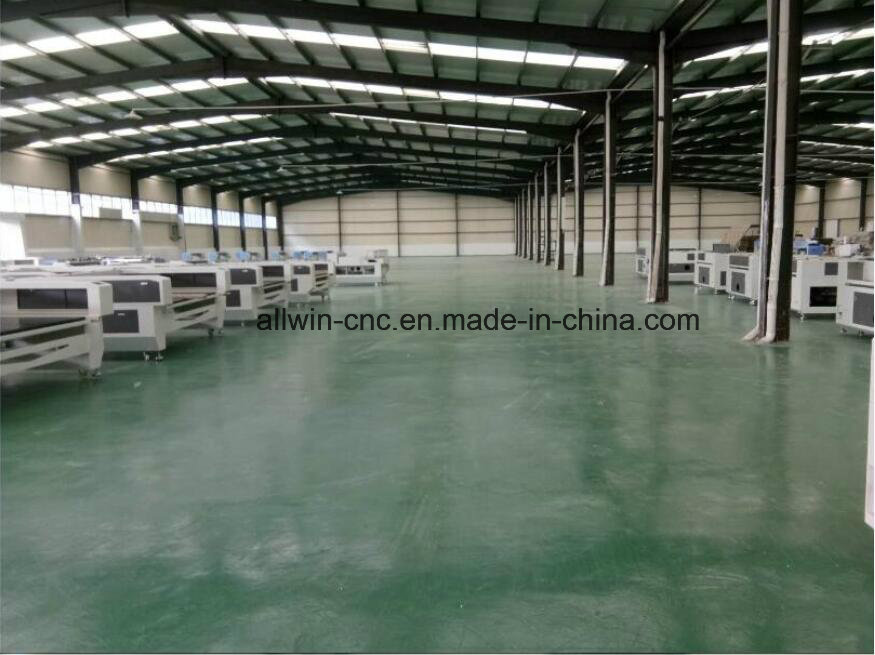

Factory:
Sample:
Package and shipping:Inside:Water-proof Plastic Film Package With Foam ProtectionOutside:Solid Seaworthy Wood Box Package Below: Steel Tube
FAQ:1.How long about the machine's guarantee?2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agentsContact information:JINAN ALLWIN CNC MACHINERY CO;LTDAddress: 906 Room of Luding Building,Jinan City, Shandong Province, China.
Contact person: Cherry
Tel: 0086-18053176036Website: http://www.allwin-cnc.com/
Jinan ALLWIN CNC Machinery Co. Ltd is located in Jinan, Shandong Province, which specializes in manufacturing CNC and laser machines.
ALLWIN CNC Machinery Co. Ltd is a platform for equal and mutual benefit, no cheating but a win-win. We are friends of suppliers as well as buyers, our aim is to let buyers to find great products at a reasonable price.
Our main products are CNC Router and Laser Machine, 5 Axis ATC CNC Router, General 3 Axis CNC
Router, CNC Plasma Cutting Machine, The application covers Woodworking, Advertising, Marble,
Metal, Nonmetal, MDF, Plastic, etc. Our products are widely sold in European, American countries
Africa, Asia, etc.
And we also have some very gold partner for Laser engraving machine and cutting machine.
We are trying our best to produce innovative products to help customers lower their cost and our business is to improve your business. We offer overservice to our clients and we are looking for sales agent over the world
