| Price: | US $ 2605/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | 1224 |
|---|---|
| Service: | Offering Oversea Service |
| Voltage: | 220/380V |
| Z Axis: | Z Axis Could Adjust |
| Table: | Tab T-Slot or Vacuum Adsorption Table |
| Driver: | Leadshine 542 |
| Inverter: | Fuling or Delta |
| Cutting Material: | Stone Metal or Wood |
| Service Provided: | Engineers Available in Oversea |
| Xyz: | Square Linear Guide Rail |
| Control System: | DSP or Weihong or Match3 |
| Carving Material: | Wood Metal So on |
| NO. | Description | Parameter |
| 1 | X,Y,Z Working Area | 1200X2400x200mm |
| 2 | X,Y,Z Accuracy | ±0.02mm |
| 3 | X,Y,Z Repositioning Accuracy | ±0.0254mm |
| 4 | Table Surface | Vacuum and T-slot Table |
| 5 | Frame | Welded by steel |
| 6 | Transmission | Hiwin square rail and high quality rack gear |
| 7 | Max. Power Consumption | 2.5kw~3Kw (without spindle) |
| 8 | Max. Rapid Travel Rate | 35000mm/min |
| 9 | Max. Working Speed | 20000mm/min |
| 10 | Spindle Power | 5.5kw ATC spindle |
| 11 | Spindle Speed | 0-24000RPM |
| 12 | Driver and Motor | YAKO 2811 and Stepper Motor |
| 13 | Working Voltage | 220/380V 50/60Hz |
| 14 | Command Language | G Code |
| 15 | Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
| 16 | Computer Interface | USB |
| 17 | Software | Type3 or Artcam |
| 18 | Running Environment Temperature | 0 - 45 Centigrade |
| 19 | Relative Humidity | 30% - 75% |
| 20 | Inverter | Delta |
| 21 | Electrical components | Schneider |
| 22 | Limit switch | OMRON |

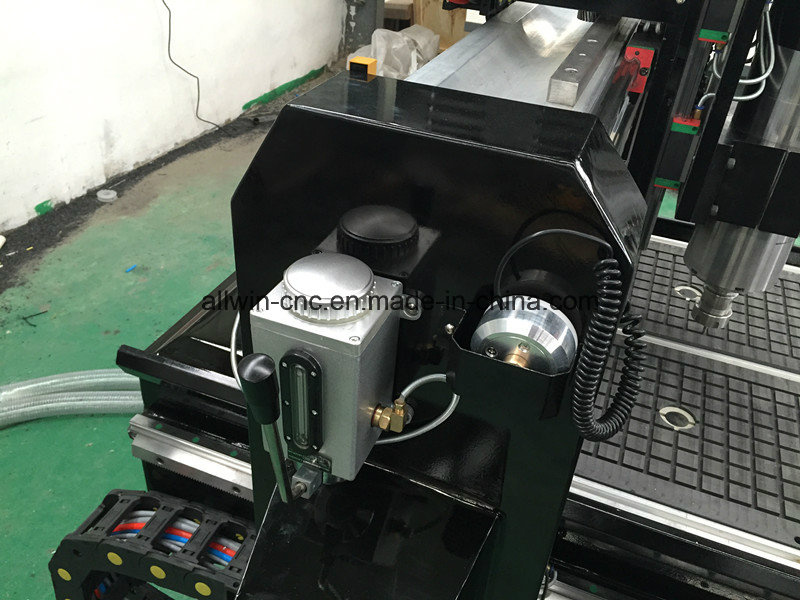

| 23 | Tool sensor and lubrication | With |
Advantages:
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.Customized:Yes
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Packing & shipment :
Save space as much as possible for container loading.
