| Price: | US $ 20000-25000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | OD-1325ATC |
|---|---|
| Dimension(L*W*H): | 1300*2500*200mm |
| Weight: | 1800kg |
| Motor: | 850W Servo Motor |
| Table: | Double Layers Vacuum Table |
| Pump: | 7.5kw Air Pump |
| Software: | Artcam/Type3 |
| Spindle: | 9kw Atc |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Manual |
| Controlling Mode: | CNC |
| Certification: | CE |

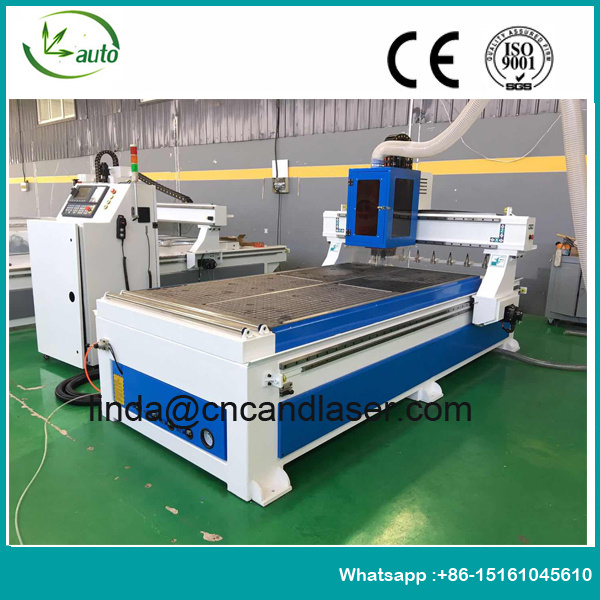

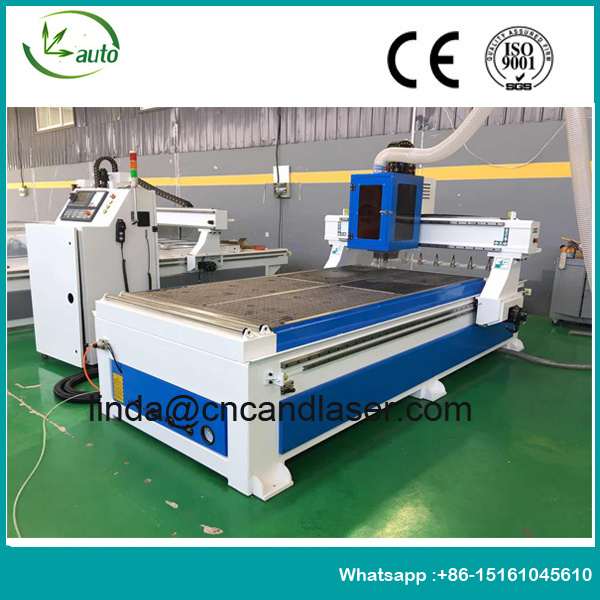

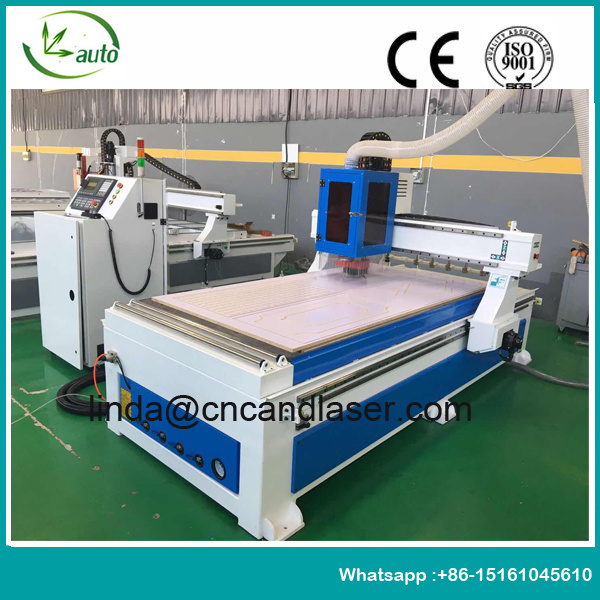

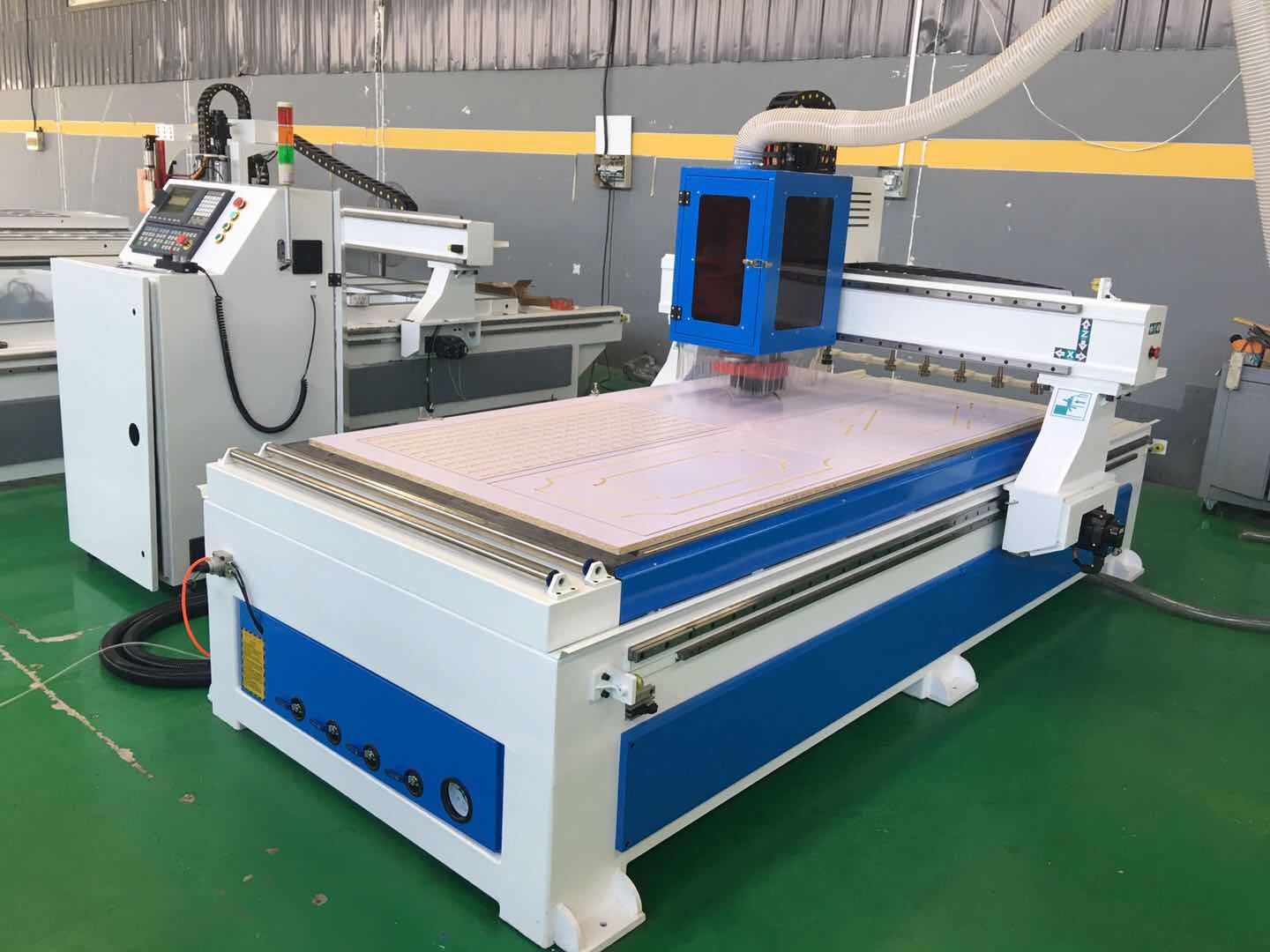

1325 ATC wood engraving cnc router for furniture, Acrylic,MDF
1. Advantages
² Adopt industrial class square tube, strong structure and popular router design by our engineer.
² 9kw HSD ATC air cooling spindle, strong power, can be widely used for different thickness materials, international famous brand, good using.
² SIEMENS Servo Motor & Drive, promise high working efficiency.
² Optional parts for your choice, like vacuum pump and dust collector.
2. Parameters
Description | Parameters |
Model | OD1325ATC |
Working size | 1300*2500*200mm |
Color | Customized |
Working Voltage | 400V, 3 Phases, 50Hz |
Control system | Germany SIEMENS 808D Control System |
Spindle | 9kw HSD ATC air cooling spindle |
Inverter | 11kw Delta Inverter |
Motor & Driver | 850W YASKAWA Servo Motor & Driver |
Traveling speed | 45m/min |
Working speed | 25m/min |
Auto tool changer magazine | Linear |
Tool slots | 8 |

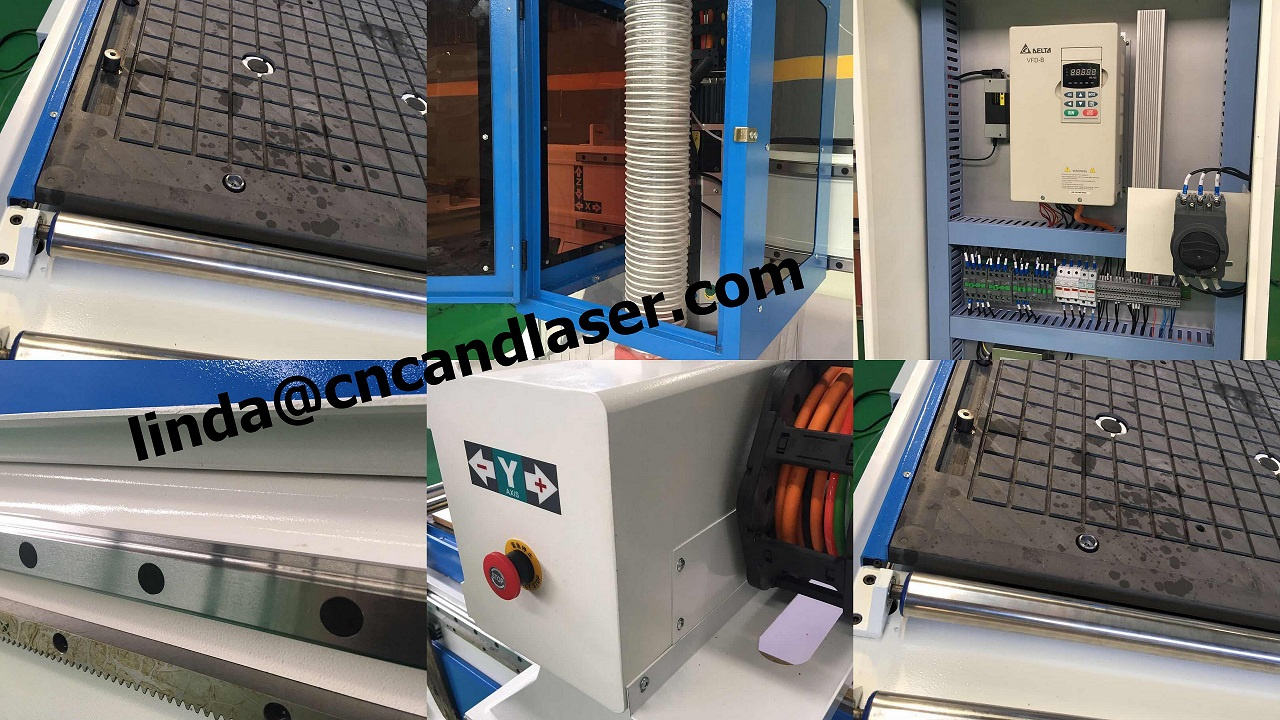

Table surface | T-slot and vacuum working table with 4 zone |
Lubrication system | Automatic lubrication system |
Gantry structure | Gantry moving |
Structure | Industrial class Square tube Strong structure, not easy to be broken |
Transmission | X,Y rack and pinion drive, Z Taiwan TBI ball screw |
Rail | Taiwan HIWIN Linear square guide #25 |
Vacuum pump | 5.5kw air type vacuum pump (380V, 3 Phases, 50Hz or optional) |
Dust collector | 1.5kw new type double packet dust collector (380V, 3 Phases, 50Hz) |
Tool sensor | Automatic tool sensor calibration |
PS: All the working area and specifications can be customized according to your requests.
What the machine can do ?
Sample show:
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
