| Price: | US $ 6080/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | 1325 |
|---|---|
| Service: | Offering Oversea Service |
| Vo: | 220/380V |
| Rotary Axis: | Optional |
| Inverter: | Fuling or Delta |
| Software: | Type 3 or Artcam |
| Controller System: | Weihong or DSP |
| Table: | Vacuumm or Aluminum |
| After-Sales Service: | Engineers Available to Service Machinery Overseas |
| Spindle: | Hqd Spindle |
| Motor And Drive: | Stepper Motor or Servo Motor for Option |
| Description | Parameter |
| X,Y,Z Workiong Area | 1300*2500*200mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| X,Y,Z Traveling Positioning Auccuracy | ±0.03/300mm |

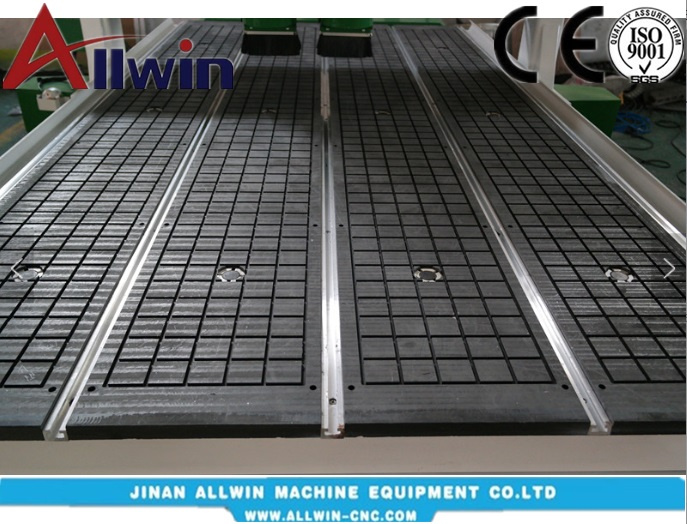

| Table Surface | Vacuum table and T-slot |
| Frame | cast by iron |
| X,Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Guide |
| Z Sturcture | Hiwin Rail Linear Guide And TBI Ball Screw |
| Rotary axis | 100mm diameter ( optional) |
| Max. Power Consumption | (Without Spindle)2.5kw~3kw |
| Max.Rapid Travel Rate | 25000mm/min |
| Max.Working Speed | 18000mm/min |
| Spidle Speed | 3.5 kw |
| Spindle Power | 0-24000RPM |
| Water tank | With |
| Drive Motors | Stepper Motor |
| Working Voltage | AC380V/50/60Hz,PH(Option:220V) |
| Command Language | G Code |
| Operating System | DSP System(Options:Ncstudion/Mach 3 PC Software) |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| Collect | ER25 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/UcancameV9 Software,(Option:Artcame Software) |
| Running Environment Temperature | 0-45Centigrade |
| Relative Humidity | 30%-75% |
| Inverter | Delta/Fuling |
| Electrical Components | Schneider |
Limit Switch | OMRON |

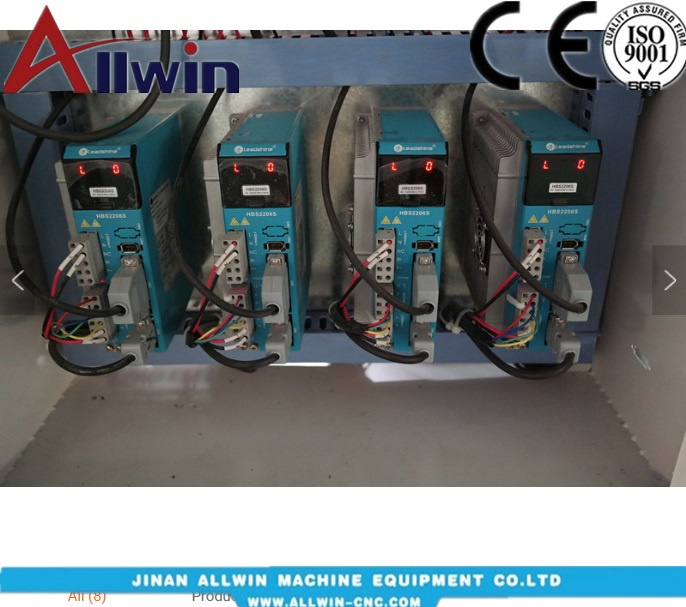

| Driver | Leadshine or Yako |
| Warranty | One yeart,expect consumable parts |
| Support | By calling or Email or trainin |
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.High precision
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving
Packing & shipment :
Save space as much as possible for container loading.
