| Price: | US $ 9000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | 1530 |
|---|---|
| Rotary Numbers: | 8 or Optional |
| Service: | Offering Oversea Service |
| Voltage: | 220/380V |

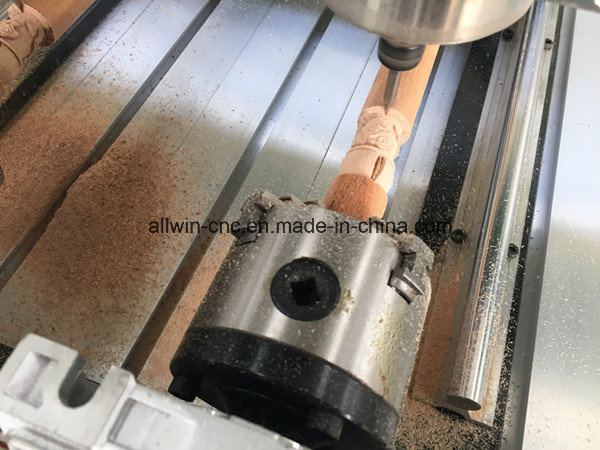

| Rotary Axis: | 150*1500mm |
| Table: | Vacuum Table or Aluminum |
| Spindle: | Hsd or Hqd |
| Control System: | DSP or Syntec for Optional |
| Motor Or Drive: | stepper or Servo |
| Z Working Area: | Flexible |
| Software: | Artcam or Type 3 |
| Function: | Lettering |
| Automation: | Automatic |
| Control: | CNC |
| Current: | AC |
| Application: | Stone Industry |
| Application Material: | Wood |
| NO. | Description | Parameter |
| 1 | X,Y,Z Working Area | 15003000x250mm |
| 2 | X,Y,Z Accuracy | ±0.02mm |
| 3 | X,Y,Z Repositioning Accuracy | ±0.0254mm |
| 4 | Table Surface | T-slot Table |
| 5 | Frame | Welded by steel |
| 6 | Transmission | Hiwin square rail and TBI ball screw for 3 axis |
| 7 | Max. Power Consumption | 2.5kw~5Kw (without spindle) |
| 8 | Max. Rapid Travel Rate | 30m/min |
| 9 | Max. Working Speed | 15m/min |
| 10 | Spindle Power | 8*2.2kw water cooling |
| 11 | Spindle Speed | 0-24000RPM |
| 12 | Driver and Motor | Delta servo motor and driver |
| 13 | Working Voltage | 220/380V 50/60Hz |
| 14 | Command Language | G Code |

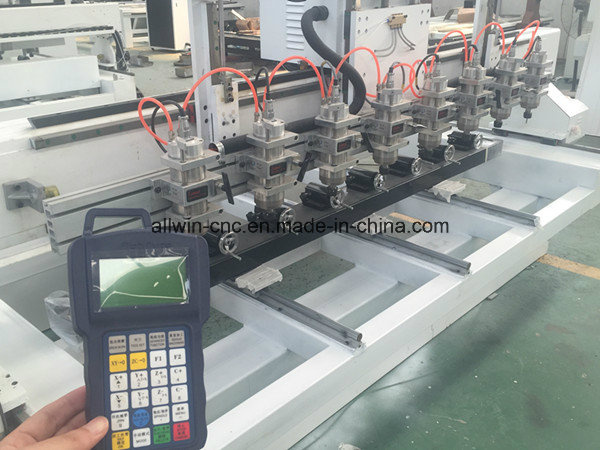

| 15 | Operating System | DSP A18 System |
| 16 | Computer Interface | USB |
| 17 | Software | Type3 or Artcam |
| 18 | Running Environment Temperature | 0 - 45 Centigrade |
| 19 | Relative Humidity | 30% - 75% |

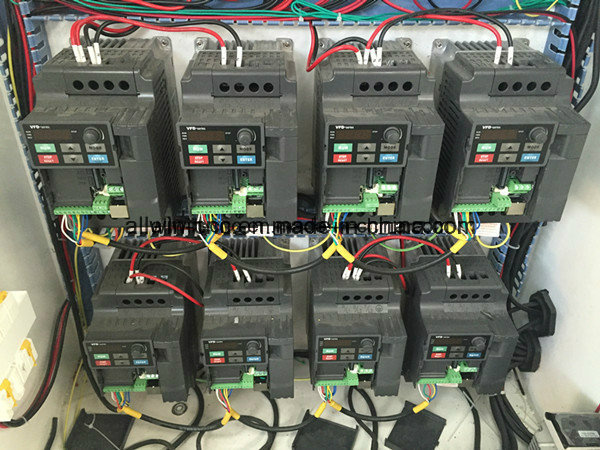

| 20 | Inverter | Delta |
| 21 | Electrical components | Schneider |
| 22 | Limit switch | OMRON |
| 23 | Tool sensor and lubrication | With |

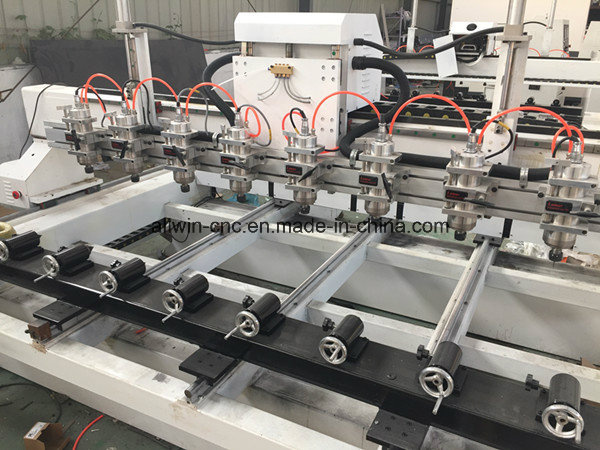

| 23 | Rotary axis | 8 pc 150x1500mm |
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.Customized:Support
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.

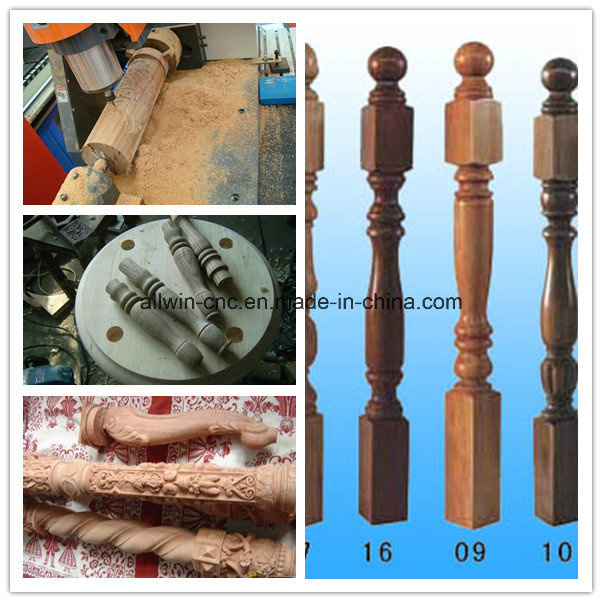

Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Packing & shipment :
Save space as much as possible for container loading.
