Name: 1530 with 4 Axis CNC Engraving Machine with Spindle Rotating 180 Degree
Brand: china-crystals.com
SKU: 732060552
Availability: InStock
Rating: 4.6 (105 reviews)

Price:	US $ 9900/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	1530
Service:	Offering Oversea Service
Voltage:	240V
Z Axis:	Big Z Axis Works

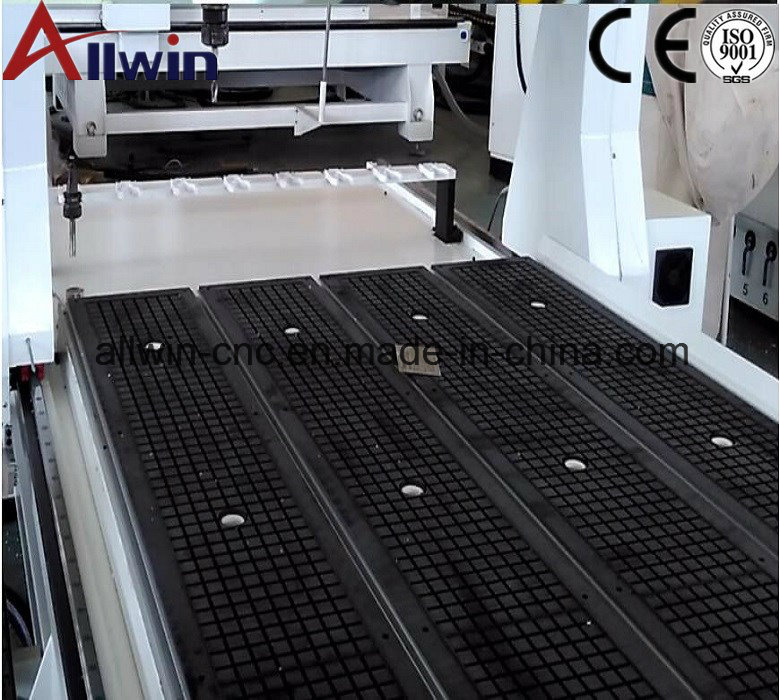

Table:	Tab T-Slot or Vacuum Adsorption Table
Motor:	Stepper Motor
Inverter:	Fuling or Delta
Rotary Shaft Length:	1500mm
Spindle Power:	4.5kw Water Cooling Spindle
Rotary Shaft Diameter:	250mm
Z Axis Travel:	200-700mm
Carving Material:	Wood

Product Description

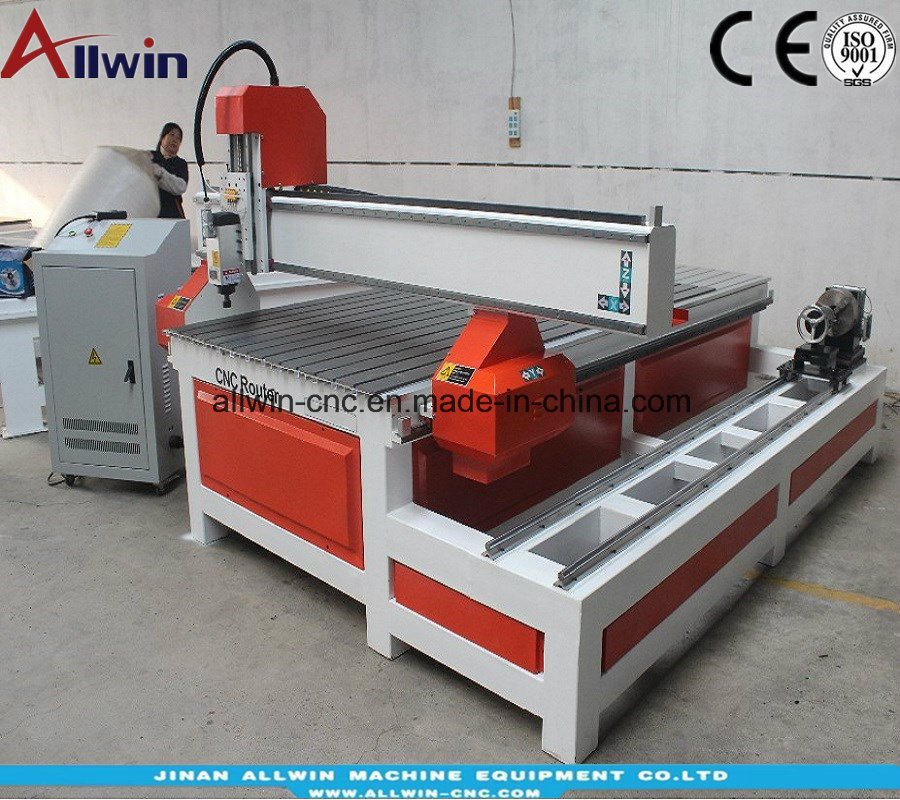

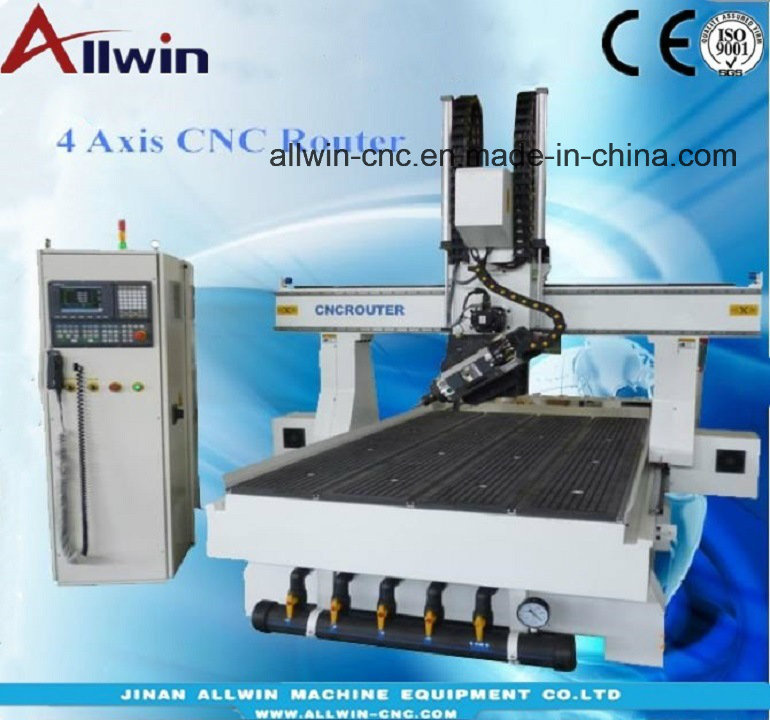

4 Axis cnc engraving machine with spindle rotating 180 degree 1500x3000x400mm

1	Model	ALLWIN- 1325	ALLWIN-1530	ALLWIN-1836	ALLWIN-2030	ALLWIN-2040
2	X,Y Working Area	1300x2500mm	1500x3000mm	1800x3600mm	2000x3000mm	2000x4000mm
3	Z axis travel	200mm-700mm(according to your requests)
4	Table Surface	Vacuum and T-slot Combined(double use)
5	Frame	Thicken steel Square Tube Heavy structure ,15mm thicken steel gantry with T type

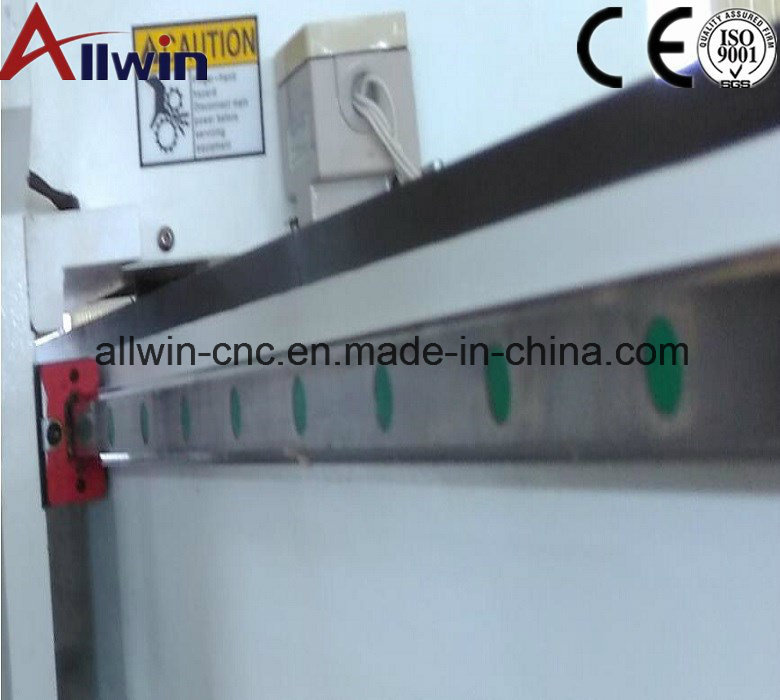

6	X, Y Structure	Helical Gear and rack transmission, Taiwan HIWIN Linear Rail
7	Z Structure	Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail
8	Spindle Power	China top brand Water cooling spindle / Italy HSD Air cooling spindle
9	Spindle Speed	0-24000RPM / 0-18000RPM

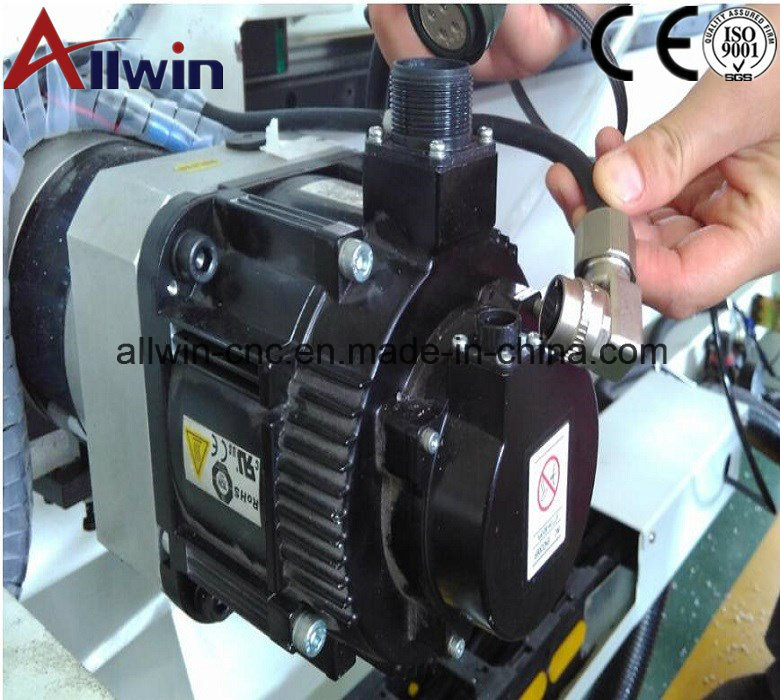

10	Drive Motors	Stepper Motor Driver/ Servo Motor Driver
11	Working Voltage	AC220V/380V 1PH/3PH 50/60Hz,
12	Command Language	G Code
13	Operating System	DSP A18 / Taiwan SYNTEC control system
14	Computer Interface	USB port
15	Flash Memory	512M
16	Collet	ER20/ER25/ER30
17	Inverter	China top brand Fuling inverter / Taiwan Delta inverter
18	Software Compatibility	Type 3 /Artcam

Advantages:
1.Advertising/artwork/woodworking/cutting
2.CE, SGS,ISO
3.Customized:Yes
4.High sensitivity
5.High efficiency
6. Warranty: 1 year
7. Engineers Available to Service Machinery Overseas
8.Door-to-door technical service and 24 hours technology online support

Application Industry and Materials:
Advertising industury: Cnc router can engrave all kinds of signage,logo products, trademarks, nameplates, badges, decorative gift, embossed
medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.

Artwork industry:
in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.

Samples:

Package and shipping:
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package
Below: Steel Tube

FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents

Contact information:
JINAN ALLWIN CNC MACHINERY CO;LTD
Address: 906 Room of Luding Building,Jinan City, Shandong Province, China.
Contact Person: Cherry

Tel: 0086-18053176036
Website: http://www.allwin-cnc.com/

Jinan ALLWIN CNC Machinery Co. Ltd is located in Jinan, Shandong Province, which specializes in manufacturing CNC and laser machines.

ALLWIN CNC Machinery Co. Ltd is a platform for equal and mutual benefit, no cheating but a win-win. We are friends of suppliers as well as buyers, our aim is to let buyers to find great products at a reasonable price.

Our main products are CNC Router and Laser Machine, 5 Axis ATC CNC Router, General 3 Axis CNC

Router, CNC Plasma Cutting Machine, The application covers Woodworking, Advertising, Marble,

Metal, Nonmetal, MDF, Plastic, etc. Our products are widely sold in European, American countries

Africa, Asia, etc.

And we also have some very gold partner for Laser engraving machine and cutting machine.

We are trying our best to produce innovative products to help customers lower their cost and our business is to improve your business. We offer overservice to our clients and we are looking for sales agent over the world
