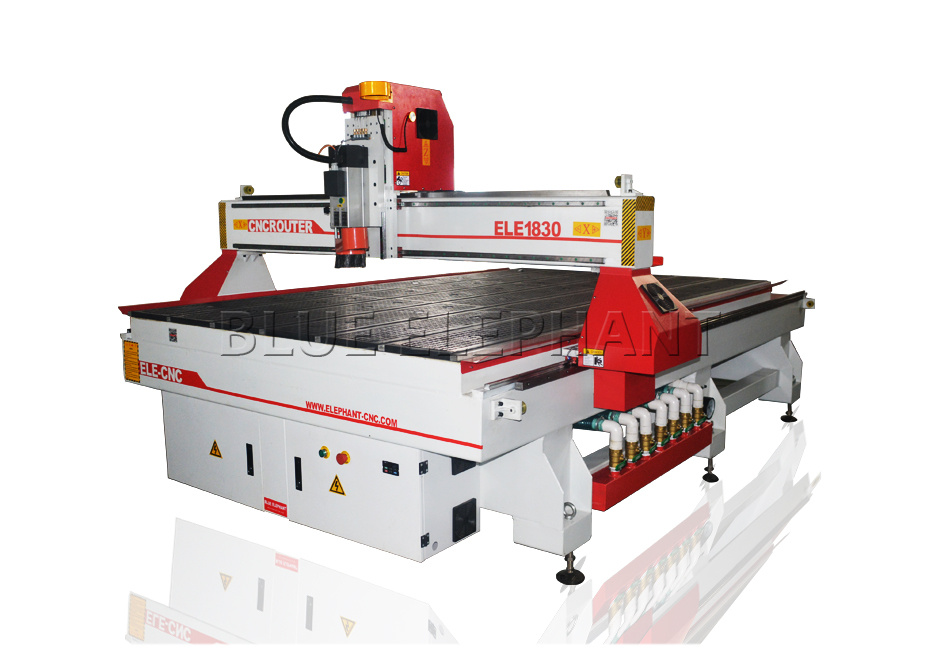

1800*3600mm Working Table Routers CNC, 3D Wood Cutting Machine
| Price: |
US $ 4999set |
| Min Order: |
1set |
| Pay Type: |
L/C,D/P,Paypal,Money Gram |
Product Specifications
| Prod Model: |
ELE 1830 |
| Product Name: |
CNC Cutting Router |
| Model Number: |
Ele1830(Customerized) |
| Spindle Power: |
7kw Water Cooling Spindle |
| Linear Guide Rail: |
Hiwin 20# Square Linear Guide |
| Structure: |
20mm Heavy-Duty Big Steel Tube Structure |
| Drive Motors: |
Japan Yaskawa Servo Motor and Driver |
| Electrical Wires: |
Shanghai Cardiff Cable with UL Certificates |
| Place Of Origin: |
Shandong, China (Mainland) |
| Voltage: |
AC380V/50/60Hz, 3pH (Option: 220V) |
| Controlling System: |
DSP Control System, USB Interface |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
FDA |
Product Description
1800*3600mm working table routers cnc , 3d wood cutting machine
Parameters| Description | Parameter |
| X,Y,Z Working Area | 1800x3000x200mm |
| Table Size | 1850×3050mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | T-slot Table (Option: Vacuum and T-slot working table) |
| Frame | Welded Structure |
| X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| Max. Power Consumption | (Without Spindle) 3.2Kw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 3kw Italy cooling spindle |
| Spindle Speed | 0-18000RPM |
| Drive Motors | stepper |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| Command Language | G Code |
| Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| Collet | ER25 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
Features1. 3KW water cooling spindle, with 3.7kw inverter
2, Taiwan HIWIN Linear guide for all axis (durable and high precision),
3, DSP control system (easy operation and high precision),
4, Welded steel structure, T structure, 10mm thickness beam cross,
5, double use working table: Vacuum & T-slot working table,
6, gear transmission for X, Y axis, Taiwan high precision TBI ball screw transmission for Z axis,
7, Double motors for Y axis, FL Stepper motor with 8 wires (top quality in China),
8, big strength stepper driver YAKO 2608
9, Tool sensor, Manual lubrication, Type3 Software.
10, All Electronic component are CE standardDetails
Optional terms1.servo motor(you also can choose the famous servo system from Taiwan Or Japan)
2.rotary device(For engraving on cylindrical shape materials.)
Please kindly tell us your cylindrical shape materials' length and diameter. Then we can add right rotary axis to the machine, and quote the right price for your rotary axis.
Related ProductsWe also have any other models. Such as ATC cnc machine, mini cnc machine, multi-head cnc machine, cnc machine with rotary.
It also can be cusmized according to your working area or processing material.
Customer Service1. Small parts will be supplied to you for free, such as, software CD, dongle.
2. Any problem will be replied to you within 24 hours!
3. By video, solution manual in English, Email, skype, QQ, telephone etc.
4, We supply lifelong after-sale service under our professional's guide for free!
5, Free training in our factory.
Applications1). WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2).Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word
making, blaster molding, and other advertising materials derivatives making.
3).Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4).relief sculpture and 3D engraving
5).Cylindrical objectFAQA This is the first time I use this kind of machine, is it easy to operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, please contact us by email / skype/ phone /trademanager online
service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
1 set machine, mixed order is also welcomed.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
6. Send your order by air or by sea.Company information

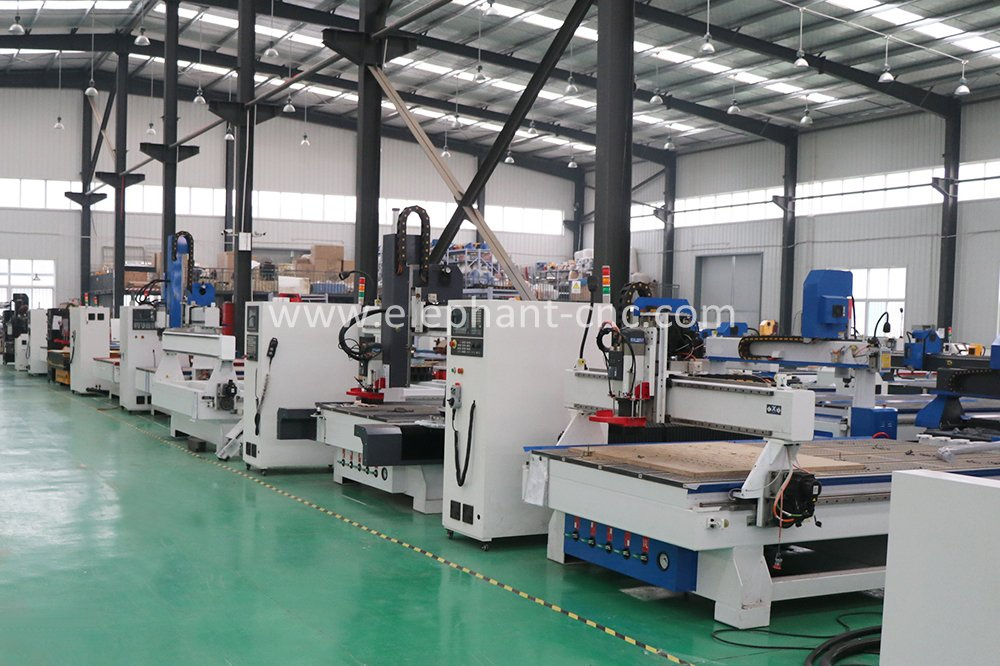

Jinan Blue Elephant CNC Machinery Co.,Ltd ,located in Jinan,Shandong,China.We have our own factory and CE Certification.
