| Price: | US $ 1600/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | 3020 3030 3040 |
|---|---|
| Service: | Offering Oversea Service |
| Voltage: | 110V/220V |

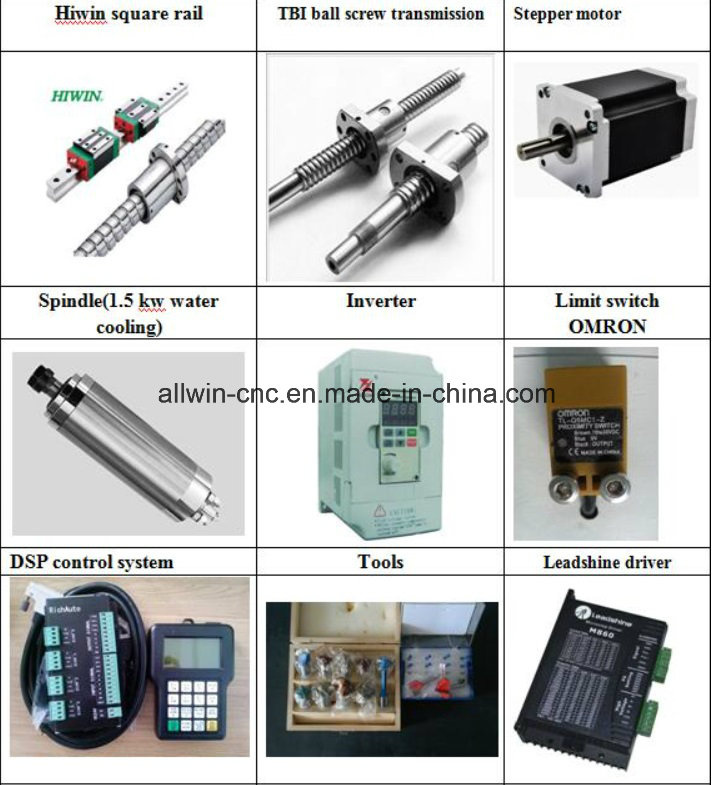

| Xyz Transmission: | Tbi Ball Screw and Hiwin Linear |
| Table: | Tab T-Slot |
| Driver: | Leadshine or Optional |
| Inverter: | Fuling |
| Cutting Material: | Stone Metal or Wood |
| Service Provided: | Engineers Available in Oversea |
| Xyz: | Xyz Axes Use Tbi Screw |
| Rotary Axis: | for Optional |
| Carving Material: | Wood Metal So on |
| Feeding Height: | 140mm |

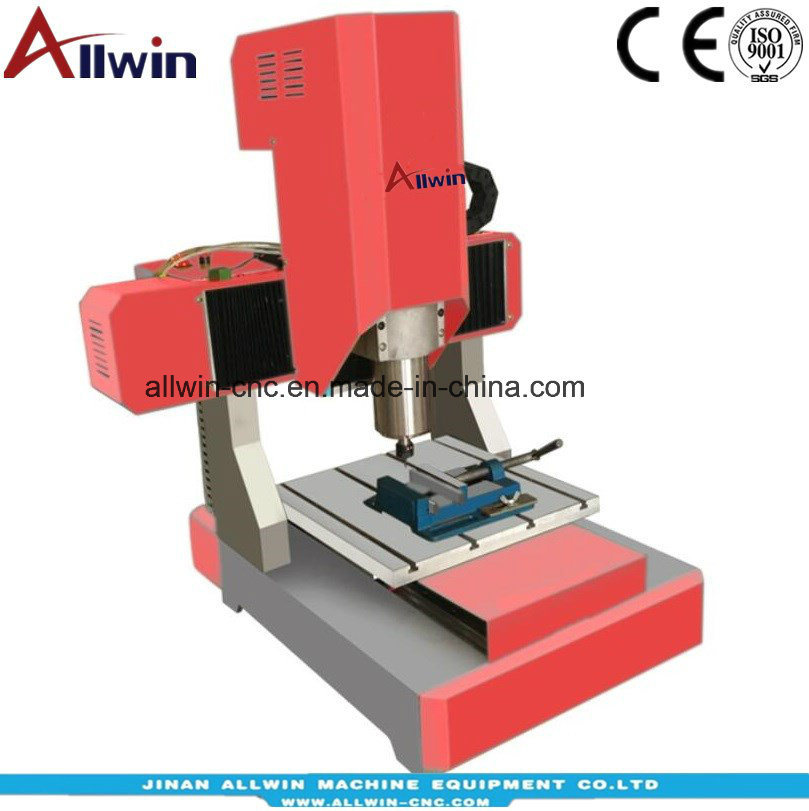

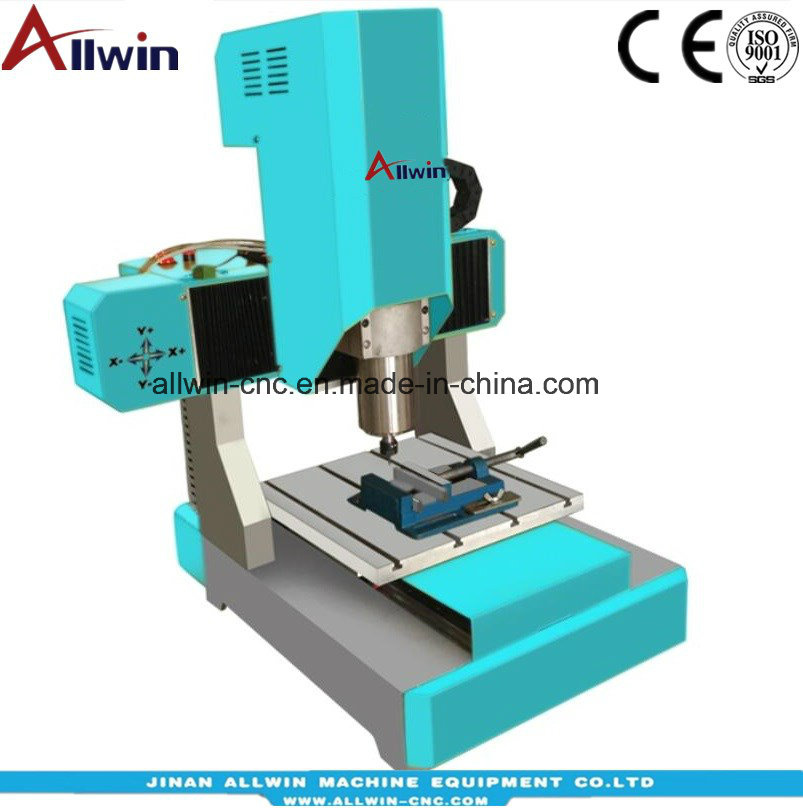

| Model Number | ALLWIN-3020 |
| Dimension | 700x695x865mm |
| Table size | 360x360mm |
| Acceptable material thickness | 140mm |
| Effective working area | X300*Y200*Z140 |
| Spindle motor | 1.5kw/2.2kw Water cooling spindle |
| Drive mode | Stepper Motor |
| Max traveling speed | 4000mm/min |
| Carving speed | 50-5000mm/min |
| Machining accuracy | 0.01-0.03mm |
| Spindle speed | 0-24000rpm/min |
| Transmission | XYZ axes use TBI screw |
| Guide rail | Linear guide rail |
| Control System | Mach3/Ncstudio |
| Voltage | AC220V/AC110V |
| Frame structure | Cast Iron |
| Compatible software | Type3/ArtCAM/Castmate/ |
| Weight | 80Kg |
| Application | Furniture,Wood door,Cabinet,MDF, Arts & Crafts,wood sculptures,3D |
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.High precision
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving
Packing & shipment :
Save space as much as possible for container loading.
