Product Specifications
| Prod Model: |
Murphy-Jet |
| Printer Model: |
Ceramic Tile Printing Machine Flatbed UV Printer |
| Printing Technology: |
Micro Piezo |
| Print Head: |
Dx5 (5760dpi) |
| Ink Type: |
UV Curing Ink, Soft UV Ink, Flexible Ink |
| Color: |
8color Cmyk+Wwww |
| Printing Size: |
33*60cm |
| Print Speed: |
120s/Full Size |
| Printing Material: |
Metal, Glass, Crystal, Tile Ceramic, Acrylic, PVC |
| Media Thickness: |
170mm of This UV Printer |
| Rip Software: |
Focusrip V8.2.6 |
| Plate: |
Relief Printing |
| Structure: |
Flat-Bed Cylinder Press |
| Color & Page: |
Double Faced Multi Colors |
| Printing Interface: |
USB3.0 |
| Printing Speed: |
63s/A4 |
| System Supported: |
Windows 7/8/10/XP |
Product Description
Murphy-Jet 3D ceramic tile screen printing machine Flatbed uv printer New low cost Murphy-Jet 3D ceramic tile screen printing machine Flatbed uv printer was specical designed for customer who want to get a industrial printing speed and commercial printing result, special for customer who want to get a vivid color result and high density of white ink printing. Also this 3D ceramic tile screen printing machine Flatbed uv printer was built with industrial level configuration as Linear rail for both X carriage and Y flatbed motion. Dual Servo motor go with the Ball screw to let the motion with high precision. Also the one pass printing model (Print white ink and color ink in one time) and high carriage printing frequency up to 18000K can save the time and improve the printing speed for customers with this stable printing effect.
New low cost Murphy-Jet 3D ceramic tile screen printing machine Flatbed uv printer can print on metal, glass, crystal, tile ceramic, acrylic, phone case, PVC, PU, Leather, Silicome, wooden... ...No matter what material printed on, it will dry immediately. The speed for printing 1 iphone 5s case about 1-2min. Please check the clear explaination as following: | Model | Murphy-Jet 3D ceramic tile screen printing machine Flatbed uv printer |
| Print Method | Eightcolor On-demand inkjet (micro piezo print technology, intelligence drops transformation technology) |
| Print head | R2000 with DX5 MicroPiezo print head |
| Printer resolution | 5760*1440dpi |
| Print speed (Two heads) | 120seconds / Full A3 size |
| Print direction | Unidirection / Bidirection |
| Ink cartridge type | Split type |
| Minimum ink drop size | <1.5PL |
| Ink cosume | 15-20ml/square meter |
| Ink supply system | CISS |
| Ink configuration scheme | 8 color: CMYK+WWWW |
| Max printable area | A3 320 *580mm |
| Max adjustable height | 170mm |
| Max object thickness | 160mm |
| Printing gap | 1mm-5mm |
| Height adjust | electric |
| Printing resolution | 720*1080dpi / 720*1440dpi / 720*2160dpi/ 720*2880dopi |
| Speed | 400 Mbp |
| Support Ink type | LED-UV Curing ink /soft uv ink/ flexible ink |
| Color management | ICC Curve &Default ICM |
| Rip software | FocusRIP-8.2.6 / Photoprint servo |
| Printhead Protection | Intelligent Self Protect System |
| Power | 100-120V/200-240V 50-60HZ (Special requirements can be customized) |
| Printing Interface | USB2.0/3.0/LTP |
| Operation System | WindowsXP/32bit, WIN7/32bit
WindowsXP/64bit, WIN7/64bit |
| Working Environment | 50%humidity, 21-29Degree, Clean room, low dust, less sun light, good |
| Printer Size | L900mm*W750mm*H600mm |
| Shipping Size | L1080mm*W950mm*H850mm |
| Printer N.Weight/G.Weight | 90kg/120kg |
1.

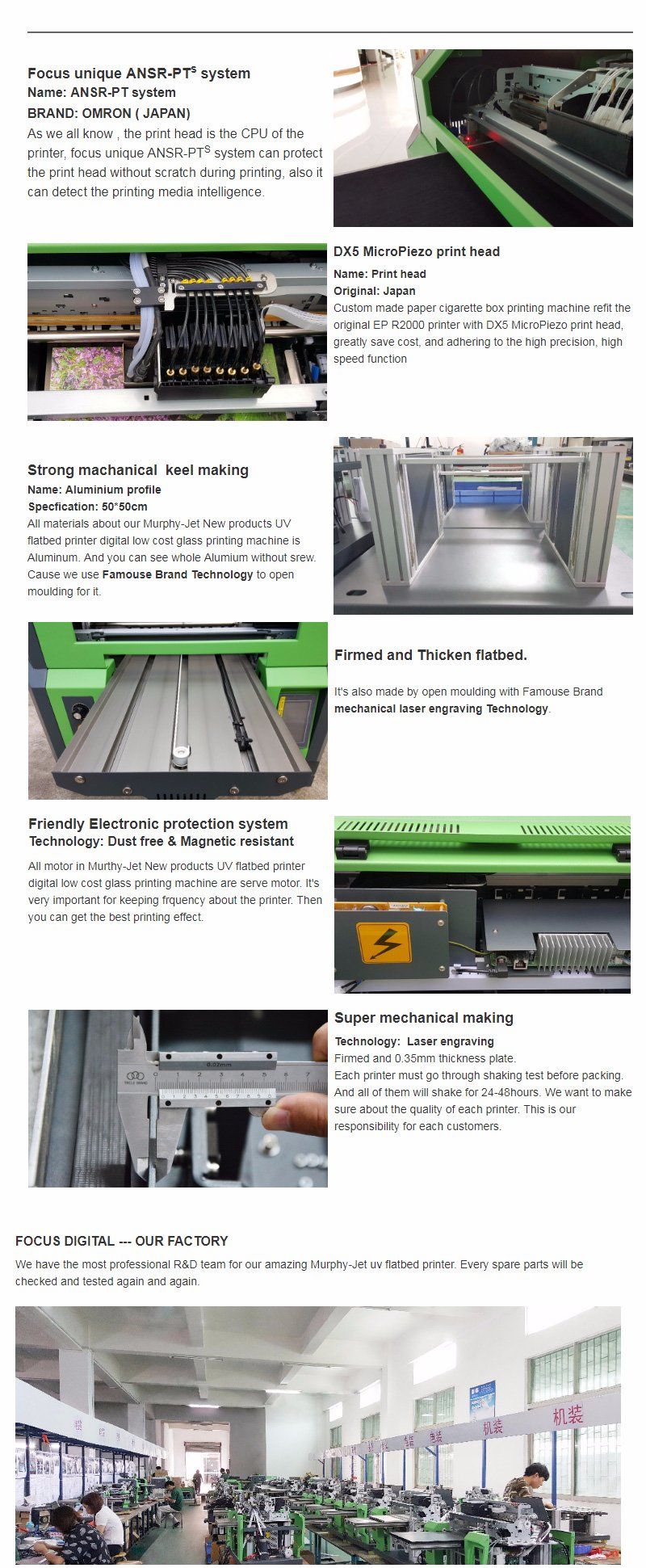

Focus unique ANSR-PTs system Name: ANSR-PT system
BRAND: OMRON ( JAPAN)
As we all know , the print head is the CPU of the printer, focus unique ANSR-PTS system can protect the print head without scratch during printing, also it can detect the printing media intelligence.
2. The Focus Murphy-Jet UV flatbed printer refit the original EP R2000 printer with DX5 MicroPiezo print head, greatly save cost, and adhering to the high precision, high speed function
3.All materials about our Murphy-Jet is Aluminum. And you can see whole Alumium without srew. Cause we use Famouse Brand BRO Technology to open moulding for it.
4. It's also made by open moulding with Famouse Brand BRO mechanical laser engraving Technology.
5. Friendly Electronic protection system
Technology: Dust free & Magnetic resistant
All motor in Murthy-Jet are serve motor. It's very important for keeping frquency about the printer. Then you can get the best printing effect.
6. Super mechanical making
Technology: Laser engraving
Firmed and 0.35mm thickness plate.

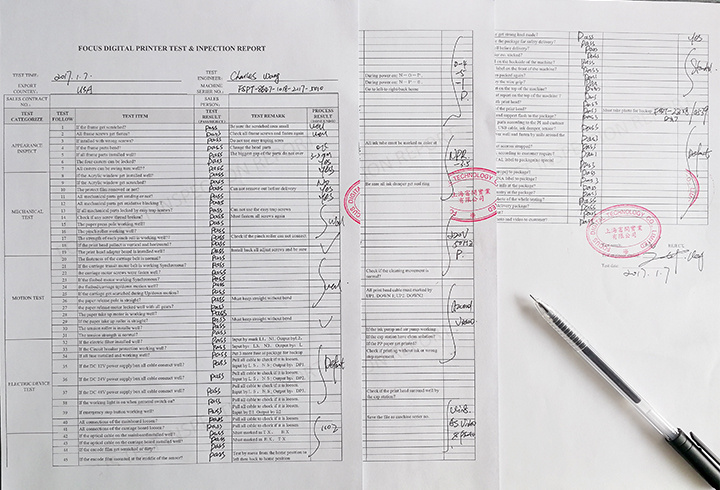

Each printer must go through shaking test before packing. And all of them will shake for 24-48hours. We want to make sure about the quality of each printer. This is our responsibility for each customers.
QUALITY IS OUR CULTURE
Our mission is making the best solution for international printing industry!
Welcome to vist our company and willing to contact us if you need any further support before or after sales:
Focus Digital Technology Company Limited.
ADD: Jianan Hongta Road, #246 Sibao Road, Sijing Town, Songjiang District, Shanghai 201615, China.
Website: www.focus-printer.com
www.focusdigi.com
Please contact us for Big surprise :) ( Only limited for first 10 enquiry people each day on Beijing time)
Don't hesitated to contact us, this is the machine you need. Please click " send " immidiately!
Focus digital technology Co., Ltd (Online register checking). Was set up in Shanghai, China. Which is the manufacturer to create and produce the best and potential DTG direct to garment printer, digital LED-UV flatbed printer, CTS computer to screen imaging system, signs &adverting products for the customers. We had focus in this digital printing field for 17 years. We supply all products by the reasonable price and real-time support lean upon our own production line, professional experience, strict parts purchase channel and altitudinal responsible action, we focus on the market to provide the latest major news and create the profitable products, our experiential support team gather all the technique and receive the newest training timely to provide the best support.
All the merchants may face these problems: Good quality but high price, Reasonable price but bad service, Good support but bad quality, inconsequential charge, cannot got the fully training, cannot got the real-time support, Response be delayed as the complex examination and application. Focus digital is a company to solve out this kind of problem for you maximal
How we do?
------- Rigorous "FOUR CHAIN" quality control; Real-time "LONG-DISTANCE-LOG-ON -DIAGNOSIS" Support; "ONE STOP" service
We refers to the rigorous " Four Chain (Material department control-Assemble line control-QC department control-Logistic department control ") quality control system to make sure all the products are intact before delivery, But no products are 100% perfect,
The real-time and effective support are the most important, customer can got the real-time effective support by our ONLINE SUPPORT and LONG-DISTANCE-DIAGNOSE SUPPORT to insure that all the problems and questions can be solved out quickly. Also we gather all the problems together to form as the solution documentations, so the customer can download from our FTP expediently.
For save customer's time and energy, we provide the "ONE STOP" service that includes Call center register, Question require, Problem handling, Online diagnosis, Spare parts shipping and return forwarding.
