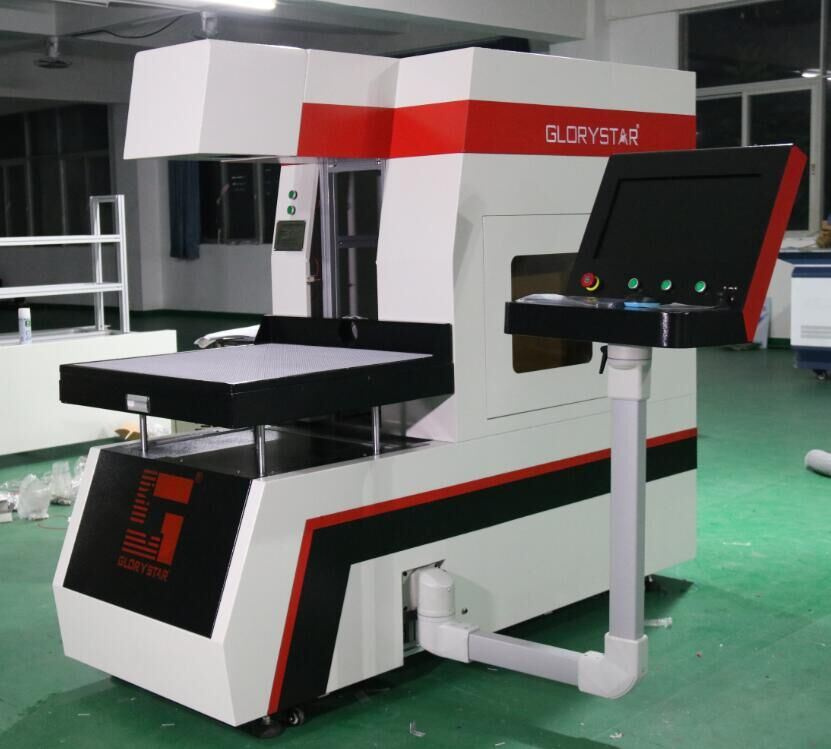

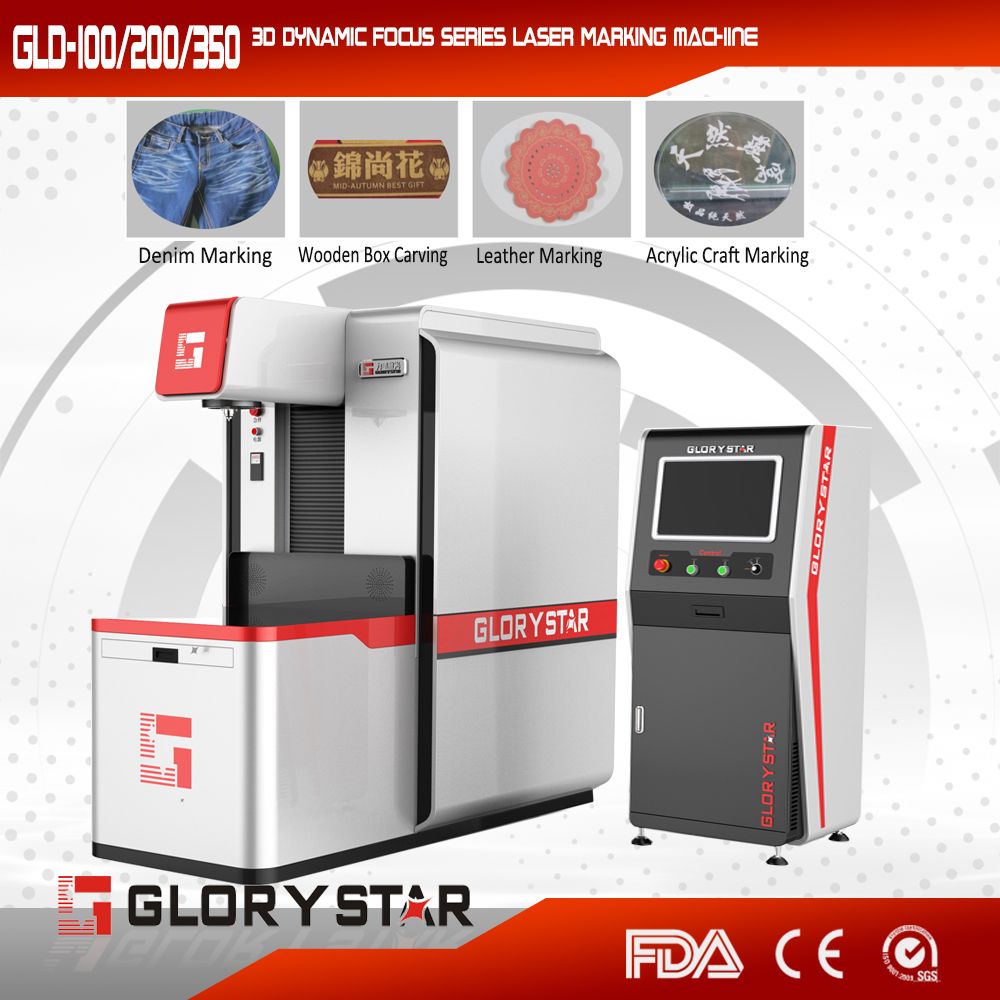

3D Dynamic Focus Large-Scale Laser Marking Machine
| Price: |
US $ 32000-70000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
GLD-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Power: |
Small Power |
| Drive Type: |
Stepper Drive |
| Certification: |
GS, SGS, Ce, RoHS, ISO 9001 |
| Laser Type: |
CO2 |
| Control: |
Automatic |
| Product Name: |
Laser Marking Machine |
| Cooling Method: |
Water Cooling |
| Laser Wavelength: |
10640nm |
| Woking Distance: |
360mm/400mm/600mm/720mm |
Product Description

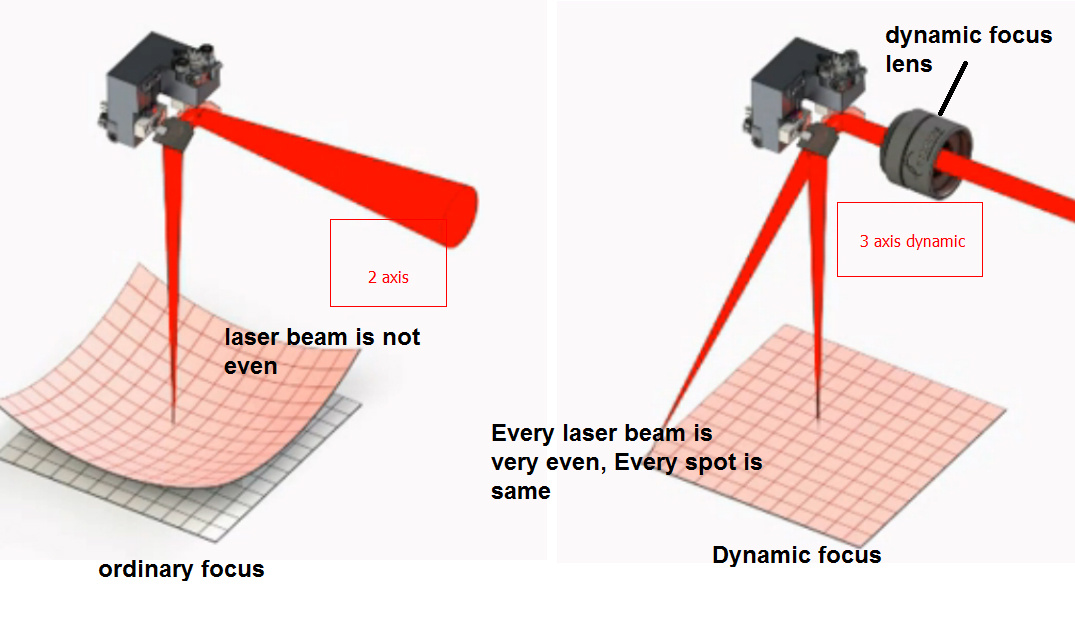

3D Dynamic Focus Large-Scale Laser Marking MachineProduct FeaturesThe laser optical system is totally-enclosed and maintenance-free, without adjustment. It can be assembled at any time if needed.
The coherent RF laser, imported from the USA, is characterized
By large power, high-quality light spot, stable power and long service life. The 3 axes laser scanning system features compact construction, dust-proof, convenient and accurate installation, strong anti-jamming ability, etc. The heat elimination problem method of the scanning motor and the drive board has been taken into full consideration during the design of the system, so as to ensure the stability of the system under long-hours working condition.
This equipment has been enabled to run more stably and with even longer service life by utilizing water cooling on both the RF laser and extender lens. USB interface bus has been adopted for the control card, which supports offline operation, stepper motor with X, Y, Z and R axis (X, Y and Z axis linked. ), start-up and stopping marking by external control. It supports 2 methods of distorted correction, including formula correction and Newton interpolation correction.
Strong graphics drawing and editing functions enable direct marking of color graphic or marking after color convert from RGB to grey scale.
New Design
Advantage
ApplicationsArts & crafts, bamboo and wood products, advertising decoration, clothing, plate making for printing on leather, decoration
And architectural model.
MaterialNon-metal materials, including leather, rubber, wood board, bamboo products, organic glass, ceramic tile, plastics, marble,
Jade, crystal and cloth etc

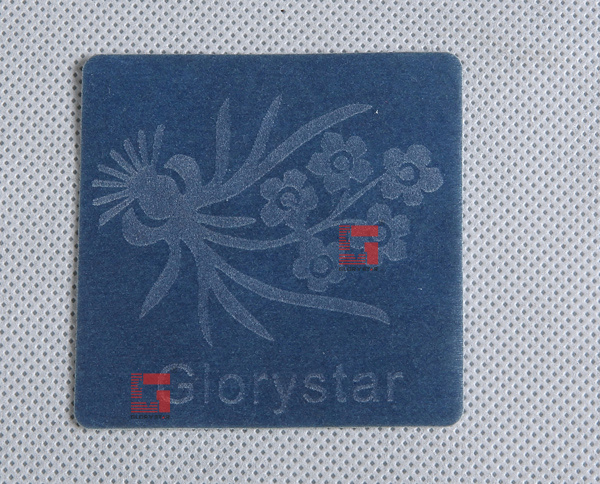

Sample Show
Fabric Marking Sample
Jeans Marking Samples
Bamboo Marking Sample
Technical Data| Model | GLD-100 |
| Laser power | 0-100W adjustable continuously |
| Laser wavelength | 10640nm |
| Marking area | Standard 500mmx500mm/400mmx400mm/600mmx600mm |
| Maximumlinespeedmarking | 7000mm/s |
| Minimum Character | 1mm |
| Repeting accuracy | ± 0.02mm |
| cooling method | water cooling |
| Power | AC 220V 30A 50Hz |
| Average power | ≤ 6.5kw |
| Working area | 300mmx300mm/400mmx400mm/500mmx500mm/600mmx600mm |
| Woking distance | 360mm/400mm/600mm/720mm |
| Mean focal diameter | 190μ m/260μ m/320μ m/380μ m |
