| Price: | US $ 3000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | 4040 |
|---|---|
| Service: | Offering Oversea Service |
| Voltage: | 220/380V |
| Table: | T-Slot Aluminum |
| Spindle Power: | 3.0kw/4.5kw/6kw/9kw |
| Driver: | Leadshine |
| Motor: | Stepper Motor |
| X,Y,Z Traveling: | 400X400X150mm |
| Inverter: | Fuling or Delta |
| Z Working Area: | Flexible |
| Memory: | Memory Support&Nbsp;U-Disk |
| Function: | Lettering |
| Automation: | Manual |
| Control: | CNC |
| Current: | AC |
| Application: | Stone Industry |
| Application Material: | Wood Metal So on |
Metal moulding machine 4040 high quality cnc router for sign making/Mini cnc router full closed 4040
Advantages:
1.Advertising/artwork/woodworking/cutting
2.CE, SGS,ISO
3.Customized:Yes
4.High sensitivity
5.High efficiency
6. Warranty: 1 year
7. Engineers Available to Service Machinery Overseas
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury: Cnc router can engrave all kinds of signage,logo products, trademarks, nameplates, badges, decorative gift, embossed
medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry:
in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Technic specification:

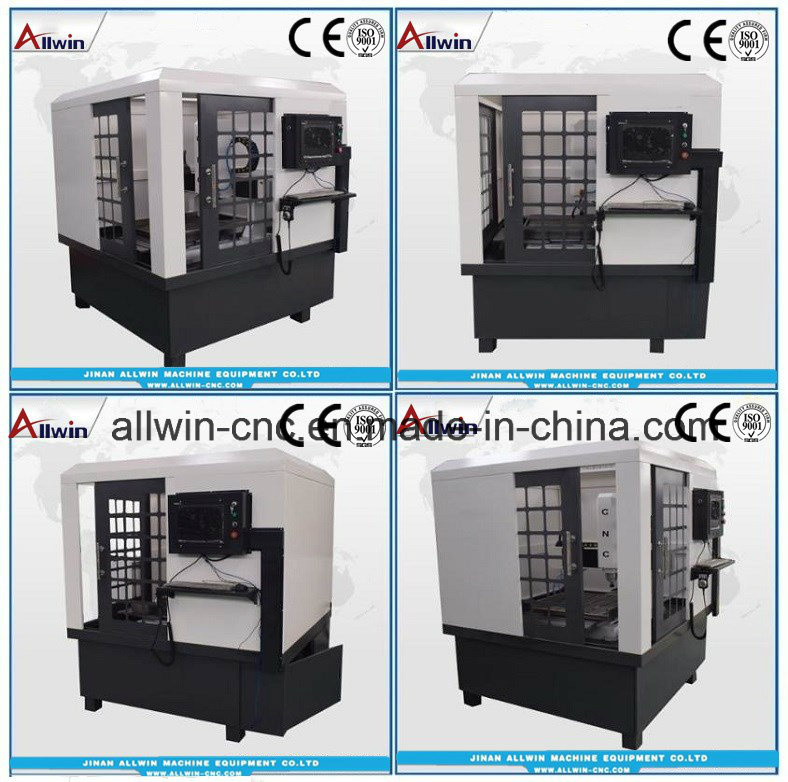

400x400mm Metal Cnc Milling Machine With Full Cover
Features: 1. Aluminum grooved and moving table, ideal for machining metal or wooden molds
2. Axes X, Y, Z are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity
3. TBI ball screw transmission improves positioning accuracy and fast speed
4. Selection of high speed 3.0kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials.
5. With the Nc studio operating system, it has the breakpoint memory function, which allows you to continue working in the event of a power failure or next day's workrements

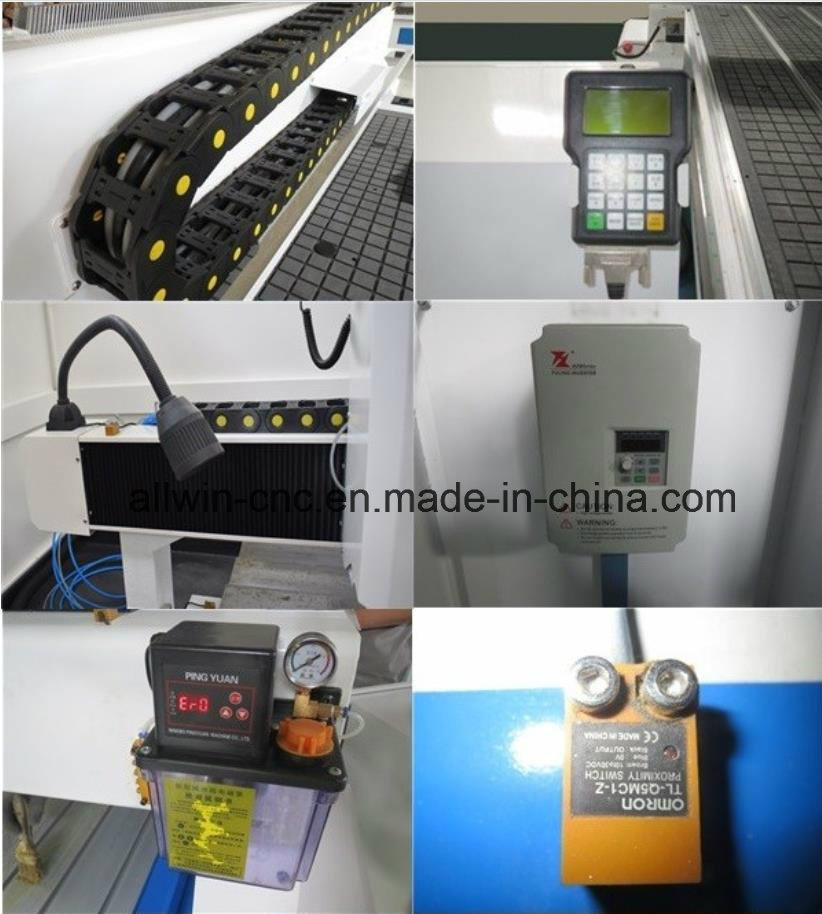

Other Accessories with this machine:
1. Feeler block 2. Wireless handwheel 3. LED light 4. Stainless steel dust 5. Water Pump 6. Tools 7. Power Cables 8. USB Cables 9. User's Guide 10. CD For installation / operation
Parameter:
| Model | ALLWIN-4040 CNC Mold Machine |
| X,Y,Z Working Area | 400*400*150mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | T-slot Aluminum +PVC |
| Frame | By cast iron |
| X, Y,Z Structure | HIWIN Rail Linear Guide and TBI Ball Screw |
| Z Structure | HIWIN Rail Linear Guide and TBI Ball Screw |
| Max. Rapid Travel Rate | 16000mm/min |
| Max. Working Speed | 10000mm/min |
| Spindle Power | 5.5 kw water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Stepper Motor |
| Working Voltage | AC220/380V, 50/60Hz |
| Command Language | G Code |
| Operating System | Ncstudio or Mach3 PC Software |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/Ucancame V9 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
| Inverter | Delta/Fuling |
| Electrical components | Schneider |
| Limit switch | OMRON |
| Driver | Leadshine or Yako |
| Warranty | One year, expect consumable parts |
| ER clamp holder | ER 11 |
Samples:
Package and shipping:
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package
Below: Steel Tube
FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents
