China CNC Laser Machine for Metal and Non-Metal Cutting

Name: China CNC Laser Machine for Metal and Non-Metal Cutting
Brand: china-crystals.com
SKU: 717950002
Availability: InStock
Rating: 4.5 (38 reviews)

Price:	US $ 6000-10000/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	FLC1325A
Certification:	Ce
Automation:	Automatic
Working Area:	1300*2500mm
Laser Power:	130W-300W

Product Description

Features:

This machine is the newest design with the 130W-180W CO2 laser tube, can cut the metal materials,such as the stainless steel,carbon steel, also used for cutting the non-metal materials, such as acrylic,wood,leather,etc. It is equipped with special laser head system, if the metal sheet is not flat, the system can sense the distance from the nozzle to the metal surface and follow the surface up and down to automatically adjust the certain focus distance to keep the highest precision cutting quality.

Application materials:

Stainless steel, carbon steel, Wood, bamboo, jade, ceramic, textile, garments, crystal, plastic, Color plates, Plexiglas, glass, acrylic, wood, paper, leather, cloth, rubber, marble, granite, tiles, shells and other non-metallic materials.

Application industries:

Mainly used for advertising industries ( stainless metal and carbon steel ), sheet metal industry (carbon steel ), packaging industry (die board )and so on .

steel industries,Plastic and rubber industry, ads/crafts/presents industry. Strumpet/machine components, leather cloth industry. Advertising logo signs, gifts, crystal ornaments, paper cutting techniques, relief, wood carving Jane. Printing plate, leather clothing, embroidery, decoration, frame making and other industries

Specifications:

Model	FLC1325 mixed laser cutting machine
Working size	1300mm*2500mm
Laser power	100w-300w
Cutting speed	0 - 50 mm/s
Reposition accuracy	±0.05mm
Working voltage	AC110- 220V±10%,50-60Hz
Consuming power	less than 1,000W
Working temperature	0 - 45°C
Working humidity	8 - 95%
Minimum letter size	English :1 x 1mm Chinese:2 x 2mm
Supported file format	BMP, HPGL, PLT, DST, DXP, and AI
Driving system	Stepper
Cooling system	CW-5200 chiller
Other auxiliary equipment	Exhaust-fans and air-exhaust pipe
Laser control software	DSP control system Leetro
Compatible software	CorelDraw, AutoCAD, Photoshop
Laser tube type	Sealed CO2 glass laser tube

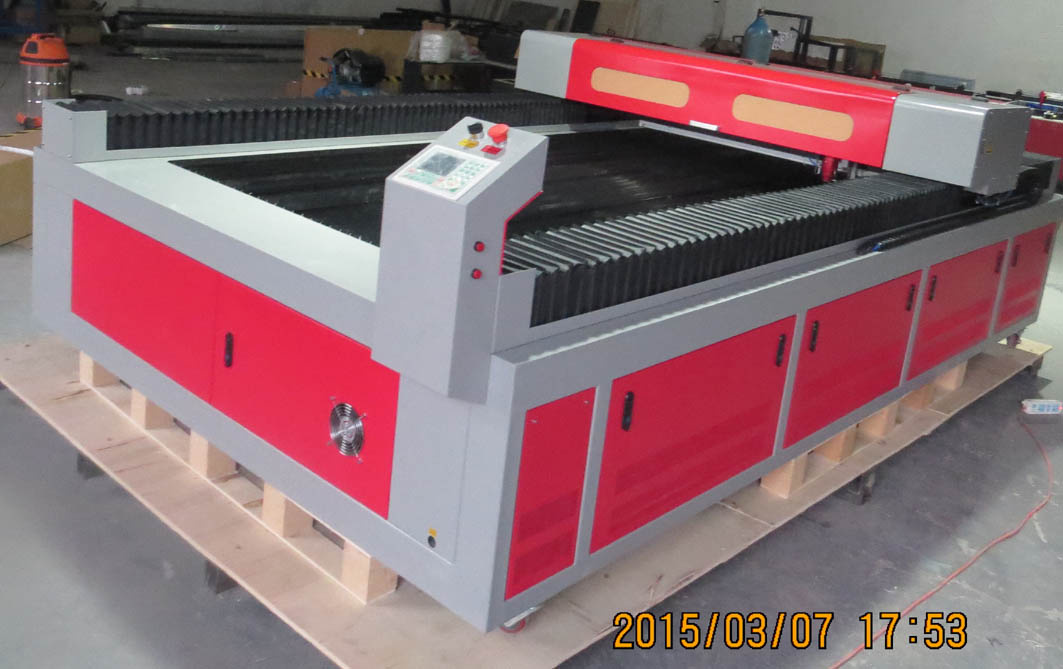

CO2 Laser Cutter for Metal and Non-Metals

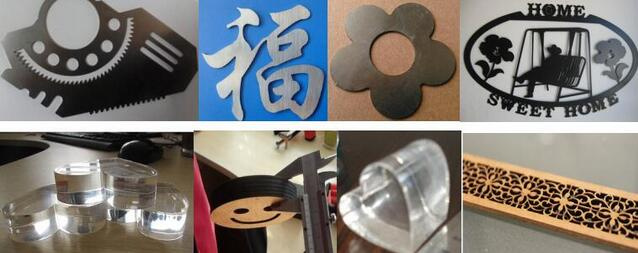

Samples Display:

Flying Technology Development Limited. Was established in 2008. We are well known for our superior quality and service in the field of engineering and manufacturing of Laser Equipment and CNC Router that includes: Laser Engraving and Cutting Machine, CNC Router, CNC plasma cutting machine, Acryling Bending machine, Cutting Plotter, and so on.

Our company is the modern enterprise in combination with resarching, producing and selling, have excellent engineers, technical experts, etc. Each product has its enterprise standard. All of them have the strict quality testing departnment detection, complete with product standards. The product passed the European Union CE authentication and American FDA certificate, the products are sold in eighty countries. Most of the m- aterials which the product use for imported steel and electrical devices, true material anticipates, worth of the money. The employee of our company is very rigorous, serious and responsible. The product from design to production, every link excellence, plus factory's strict inspection so that making the product has excellent quality and minimum malfunction probalility.

Our company is famous for high quality and better after-sale service as the competitive price. Our products are widely used in the following industry, such as Woodworking, Advertising, Artmaking, Model, Electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on.

We are searching the distributors around the world. Hope we can cooperate for the world market.
