| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Paypal |

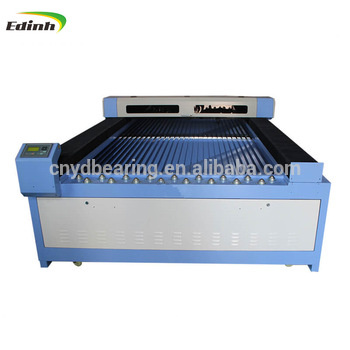

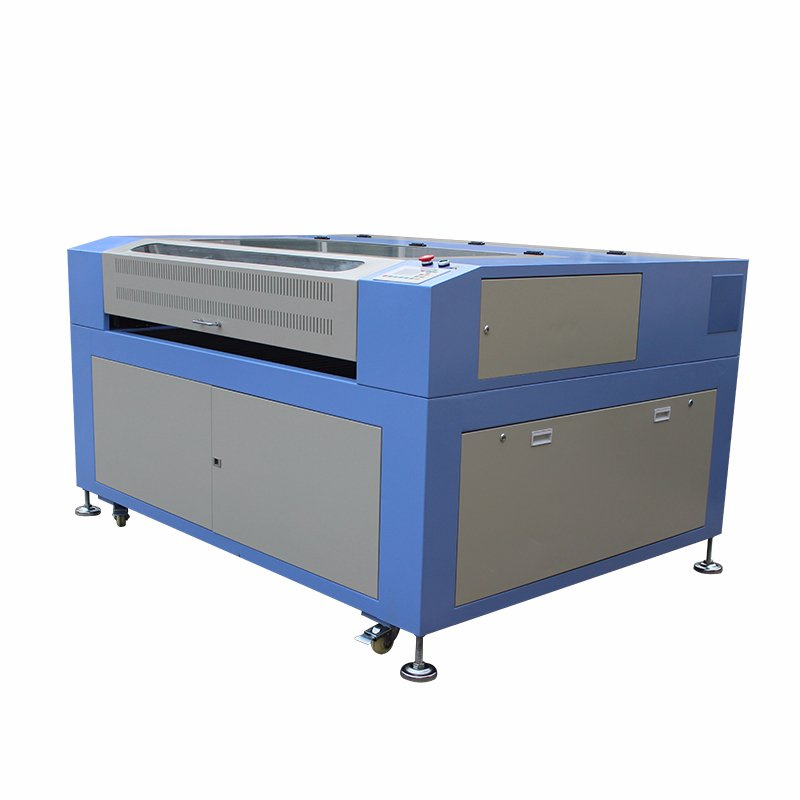

| Prod Model: | 1325 laser machine |
|---|---|
| Spindle: | Water Cooling Spindle 1.5kw,2.2kw |
| CNC Or Not: | CNC |
1.Taiwan HIWIN square linear guide rail installed on X&Y axis, make sure the works stably and precisely.
2.The only manufacturers adopts square tube framework in China, with more than 40% higher fuselage
strength than iron sheet structure. This design prevents the machine from quivering, resonance and distortion
during long term work.
3.New-style high efficiency laser tube is adopted.Laser beam is more stable than the traditional type. Usage age is more than 10000 hours.
4.Red dot position system is added in standard configuration, contributing to simple and precise working position.
5.Humanized and modern appearance showing RECI's consistent humanity idea, making operation and
maintenance quite easy.
6.Advanced DSP control system, with professional motion control chip, has the function of consecutively
high-speed curve cutting and the shortest path selection, which largely improves your working efficiency.
7.USB offline control system makes the operation more convenient and faster.
8.Automatic up-down table can be chosen for thick materials and high objects.
Technical parameter:
| Model | Edinh-1325 |
| Working area | 1300*2500mm(L*W) |
Dimension | 1590*1210*970mm |
Laser type | Sealed CO2 laser tube,water cooling |
Laser power | 80W/100W/130W/150W/180W |
Engraving speed | 0~60000mm/s |
Cutting speed | 0~40000mm/s |
Minimum shaping character | English letter 1.0*1.0mm, Chinese 2.0*2.0mm |
Graphic format supported | PLT BMP DXF AI CDR PCX DST GIF DWG |
Laser output control | 1-100% software setting |
Highest Scanning Precision | 4000DPI |
Resolution ratio | <0.01mm |
Location precision | <0.01mm |
Controlling software | DSP control system |
Working temperature | 5°C-40°C |
Operating humidity | 5%-95%(without condensed water) |
Color separation | Yes |
Drive system | High-precision 3-phase steppe motor |
Compatible Software | CORELDraw,Photoshop,AutoCAD,TAJIMA,etc |
Working voltage | AC220V 50Hz 3A / AC110v 60Hz 3A |
Auxiliary Equipment | Exhaust fan and air exhaust pipe |
Option parts | Up-down worktable, Auto focus, Rotary Device |
Applicable industries:
Applied to cloth,leather,toys,computer embroidery cutting, mould ,crafts ,bamboo and wood ,advertising and building
decoration ,packaging and printing ,paper products industries.
Applicable materials:
Available for engraving and cutting such nonmetal metal hard material as acrylic,color plates,ABS board,rubber,plastic,
cloth toys,leather ,wool, crystal, glass, ceramic tile, jade, bamboo products, wood products.
(1)Laser head:
Professional laser head for all kinds of Non-metal materials, high precision,high speed.We can also custom multi-head laser machine for you.
2)Control system:
The quality of RD control system is better,in the process of using it almost no problem.You can see the engraving tool-path from the RD control panel.
3)Beijing Reci laser tube:
Beijing Reci laser tube has a good beam and strong stability with about 10000hours life time.
4)Taiwan Hiwin Guide rail:
Taiwan HIWIN square linear guide rail installed on X&Y axis,make sure the works stably and precisely.
Packaging & Shipping
1.Woodcase package
2.Ship out by sea
Company information
Zaozhuang Yiding Co., Ltd located at Zaozhuang, Shandong, China. Our company have high quality CNC Router, Woodworking machine, Stone engraving machine, Metal engraving machine, CO2 Laser Engraver, CO2 Laser cutter, plasma metal cutting machines and so on. Edinh products are now used by over 50,000 companies, schools, government offices in more than 30 countries. For instance, countries and area like USA, England, France, Germany, Canada, Russia, India, Southeast Asia, Middle East and so on. Our principle: Good quality is the life of our company, New technology is the basis of our development, Innovation is the key of our progress, and the good after-sale service gains the wide market. The business objective of Edinh is to provide the market with the most reliable products in best price, and support impeccable service.
