Crystal Rhinestone Diamond PVD Vacuum Coating Machine Metallizing Machine
| Price: |
US $ 8-88/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
LH-1110, LH-1215, LH-1618 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: |
Crystal Rhinestone Vacuum Coating Machine |
| Technology: |
Ion+Sputtering Coating |
| Structure: |
Vertical, Single Door |
| Control System: |
Manual Automatic Integrated |
| Operating System: |
PLC Touching Screen |
| Coating Color: |
Gold, Rosegold, Silver, Black, Blue, Rainbow Ect |
| Chamber Material: |
Stainless Steel |
| Chamber Size: |
1600mm*1800mm |
| Model: |
Lh-1215, Lh-1618 |
| Brand: |
Hcvac-Huicheng Vacuum |
| Type: |
Coating Production Line |
| Coating: |
Vacuum Coating |
| Substrate: |
Glass, Metal, Ceramic, Alloy, Crystal, Mosaic |
Product Description

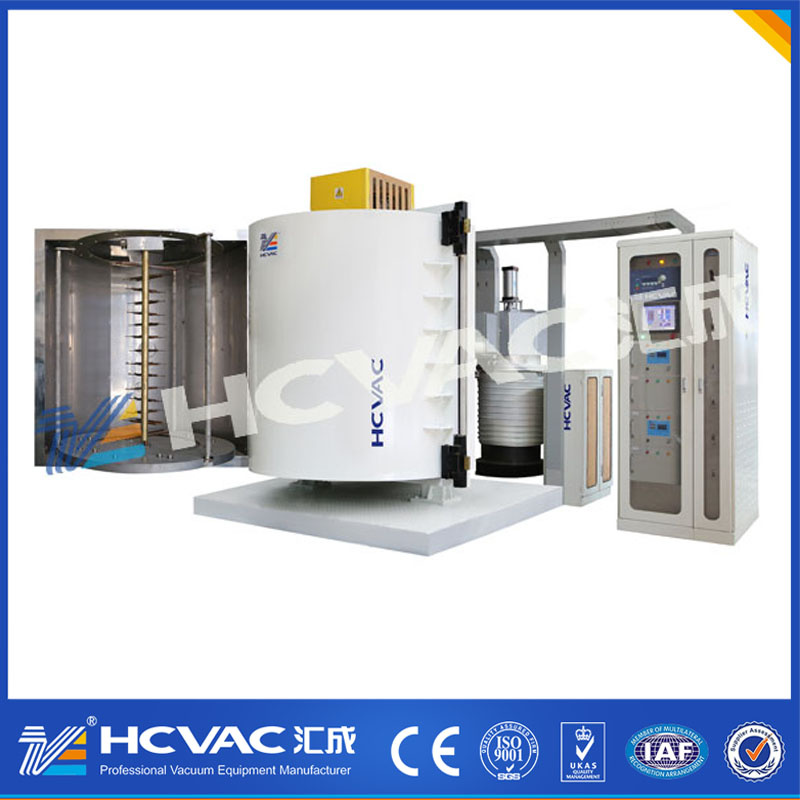

Crystal Rhinestone Diamond PVD Vacuum Coating Machine Metallizing Machine
The equipment adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
Characteristic: Reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.
Ion bombard cleaning system is optional.
Applied industry: Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys, tableware, sanitary ware, shoe heel, ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, TPU, etc.
Electroplating effects: General electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, seven colors;
Coating color: Gold, silver, red, blue, green, purple, multi color, and so on.

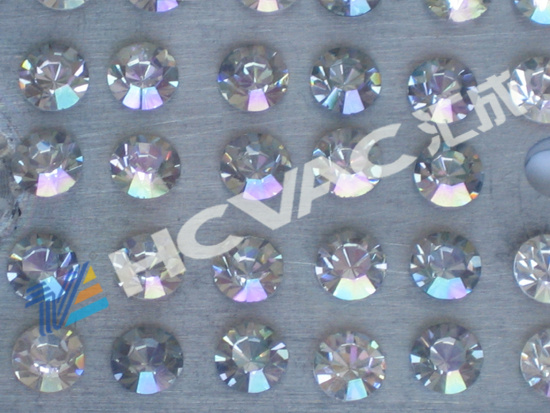

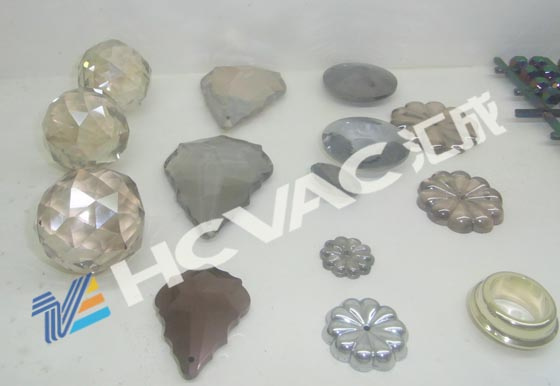

It can coat silver, golden, blue, purple, AB rainbow color, etc. It's also suitable for the plastic beads to coat aluminum film or AB rainbow color.
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
Please feel free to contact us for further information!Contact: Lillian Yang
Mobile: 0086-13825720037
Technical parameters: Mode
Dimension | LH-800 | LH-1250 | LH-1416 | LH-1618 |
| 800*1000mm | 1200*1500mm | 1400*1600mm | 1600*1800mm |
| Coating mode and main confirguration |

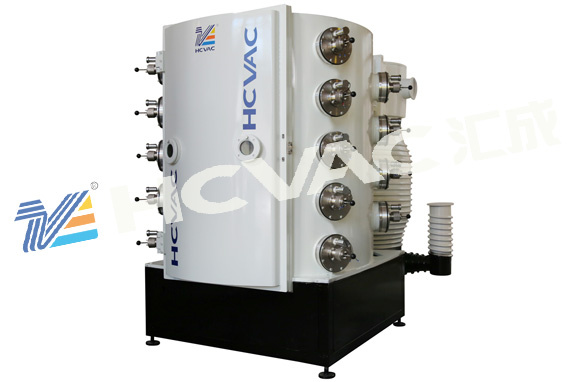

Eight multi-arc targets |
Twelve multi-arc targets |
Fourteen
multi-arc targets |
Twenty
multi-arc targets |
| Power source | Electric-arc power, Filament power, Pulsed bias power supply |
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve |

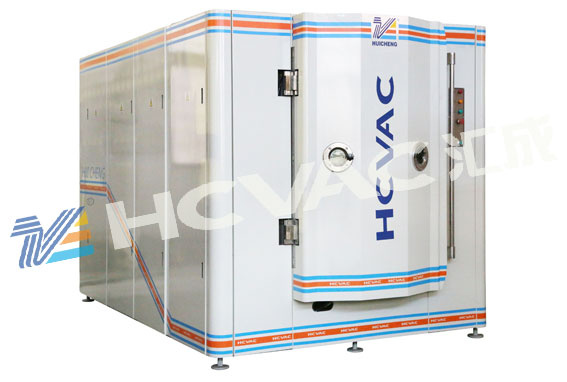

| Vacuum chamber structure |
Vertical side opening door, pump system postposition, double water cooling |
| Vacuum system | Molecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa)
Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa) |
| Workpiece baking temperature |
Normal temperature to 350 centi-degree PID control, radiation heating. |
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute |
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa |
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode |
| Remark | We can design the dimension of the equipment according to customer's special technique requirement. |

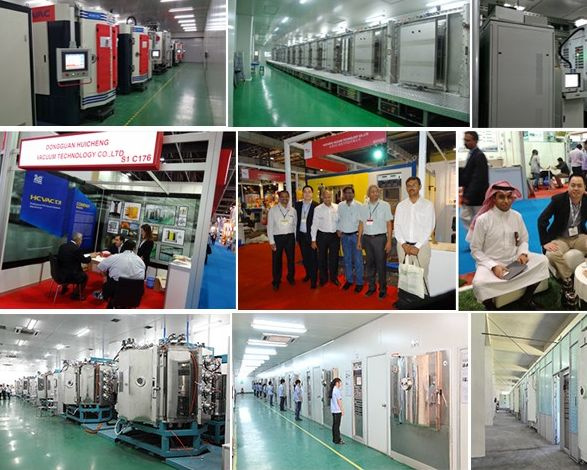

DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.
