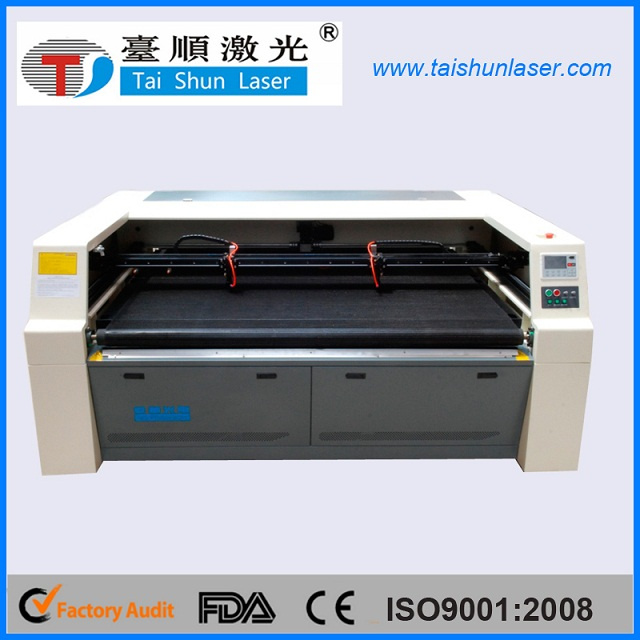

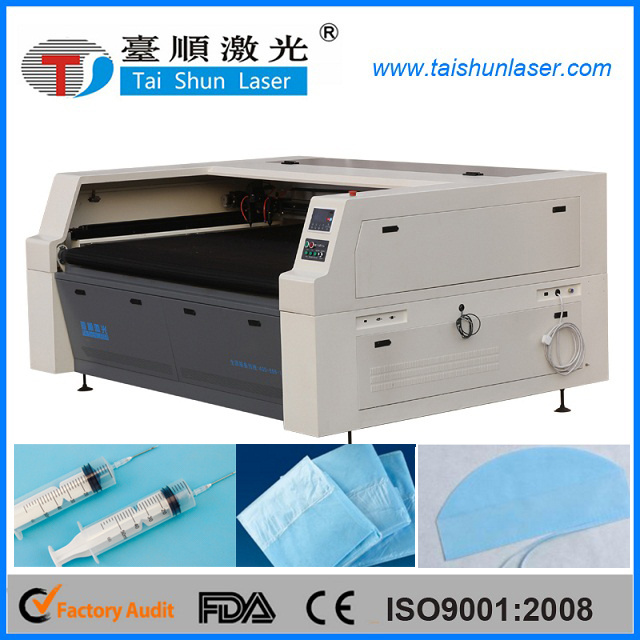

Customized CO2 Laser Engraving Acrylic/MDF Machine Price

Product Specifications

Prod Model:	TSYQ180100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Laser Type:	CO2
Laser Power:	80W
Working Area:	1800mmx1000mm
Position Accuracy:	+/-0.1mm
Movement System:	Stepping Motor System
Guarantee:	1 Year Free Maintanence
Interface:	USB2.0
Electrical Voltage:	AC220V+-5% 50/60Hz
Applied Material:	Acrylic MDF Fabric Paper

Product Description

Feature:
1,The following-up fume extractor system is going with laser head to save power consumption and good fume chasing effect.
2, DSP control system support online and offline data transferring.
3, Built up a data base in computer to save space room for the cutting workshop
4 The stepper motor guarantees cutting and engraving smooth.
5 Singapore mirrors and lens, guarantee the powerful cutting strength and correct work.

Technology parameter:

Laser type	Glass Co2 laser tube	Movement system	single side servo system
Output power	80W	Cooling system	Water cooling
Working area	1800mmx1000mm	Electrical Voltage	AC220V+-5% 50/60hz
Working table	Conveyor working table	Supported file format	AI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF
Working speed	Adjustable	Standard accessories	2 set 550W exhuast fans
Position accuracy	plus minus 0.1mm	Optional accessories	100w,130w,150w laser tube,auto feeding system,water chiller

Technic parameter:

Model	TSC160300LD	TSC210300LD	TSC320600	TS160100LD	TSHY180100LD	TSHY180140	TSZD9050	TSZD15090
Working Area	1600x3000mm	2100x3000mm	3200x6000mm	1600x1000	1800x1000mm	1800x1400mm	900x500mm	1500x900mm
Laser power	80w	80w	80w	80wx2	80wx2	80w	60W	60W
Cutting Depth	Rubber 0-25mm
Engraving speed	0-1000mm/s adjustable
Cutting speed	0-600mm/s adjustable
Worktable	Fiex or conveyor or honeycomb work table
Resetting Positioning Accuracy	≤±0.01mm
Graphic format supported	PLT/DXF/BMP/JPG/GIF/PGN/TIF,AI etc.
Software supported	Coreldraw, Photoshop, AutoCAD
Motor type	Stepper Motor
Cooling  System	Water pumb/Water chiller
Laser tube lifetime	EFR/SPT/SP laser tube :3500h      Reci laser tube:10000h
Power supply	220V±10% 50HZ or 110V±10% 60HZ
Main configuration	1x Laser tube
	1set x Reflector and lens
	1xWater chiller  1x air compressor  1x exhaust fan ,1x water pipe
	1x USB cable      1xcommunication cable    1x U disk
Optional  Devices	Rotary device :engraving Cylinder, Pen ,Glass Cup
	Red dot pointer, Auto Focus system
	Auto-feeding system
	Water chiller system
Consumable Parts	Laser Tube 80w/100w/130w ,reflectors and lens

FAQ:
Q1.What's the guarantee for the product quality?
 We offer one-year free maintenance services for our customers. Generally speaking, our technician will figure out what the cause may be one the problems arise according to clients' feedback. Fault parts with the valid period will be replaced for free except for consumable parts.

Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.

Q3. What i need to do when the machine suffer trouble?
A: Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.

Q4. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.

Q5 .How about the life-span of the laser tube ?
A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RECI laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months

Q6: How can I know the power of the laser tube has been exhausted?
A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color.

Q7:Is it better to increase blow system to improve laser processing performance?
A: It works for some kind materials,it can stop firing

Q8: How long time does it take for a learning of the laser machine operation ?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation, You just need to do some simple tests on different processing materials to learn how to adjust the speed and laser power.

Q9: Is it harmful to human body when in operation ?
A: It is not harmful, as long as the laser don't direct shoot the skin and eyes.

Q10: Does it need to be connected by a laptop or computer ?
A: Yes, either is ok, It supports Windows 2000, Windows XP, Win 7 and other operating systems.

Q11:How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)
2. Laser tube diameter(relatively speaking, the thicker,the stronger)
3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting.

Guarantee&After-sale service
1, Best components, perfect technics and strictly ex factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.


 Order Notice
Please let us know following informations:
1. What materials you want to cut ?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for?
5. Are you an end user or retailer?
According to your above information,we'll recommend the most suitable machine to you.


Why our product better than other similar product?
1.International quality certificate:CE,FDA,SGS,ISO9001:2008,BV

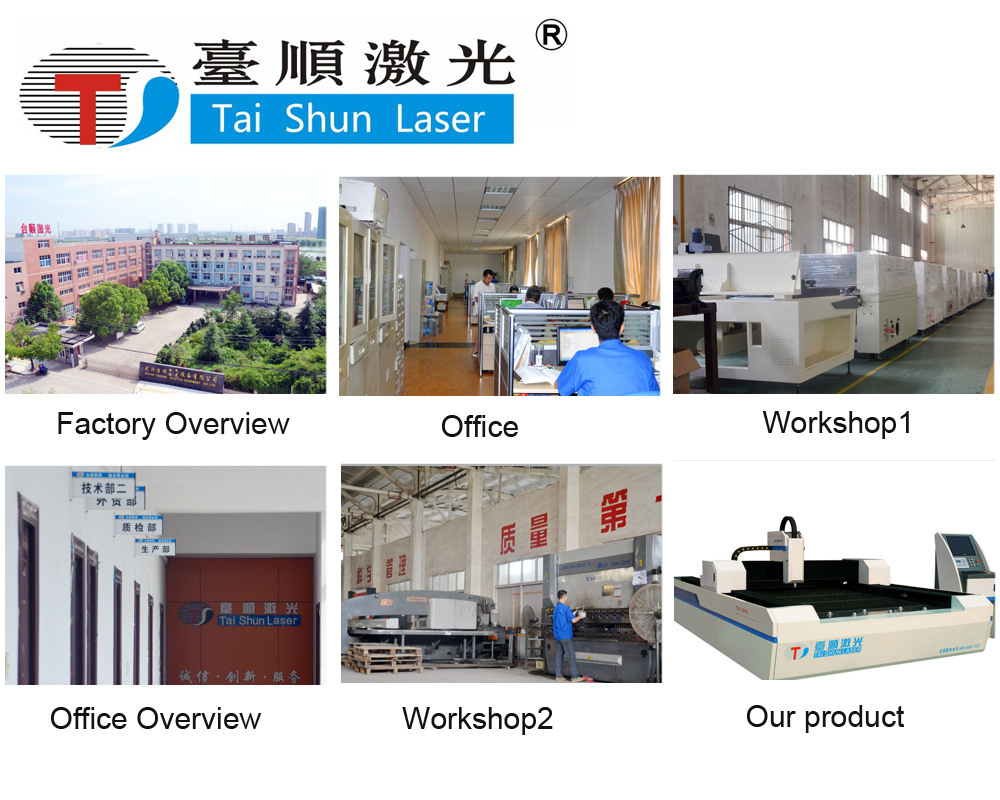

2. Professional laser machine supplier in China with 12 years experience,over 80 type machines.
3. Adopt Japan imported mainboard and chip .
4. Adopt Germany imported bearing and high accuracy stepping belt.
5. The reinforced and thickened machine body ensure the long working process stable and withstand quake
6 High Precision Stepping motor makes cutting and engraving more precise.
