| Price: | US $ 1800/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | 3030 |
|---|---|
| Service: | Offering Oversea Service |
| Voltage: | 220/380V |

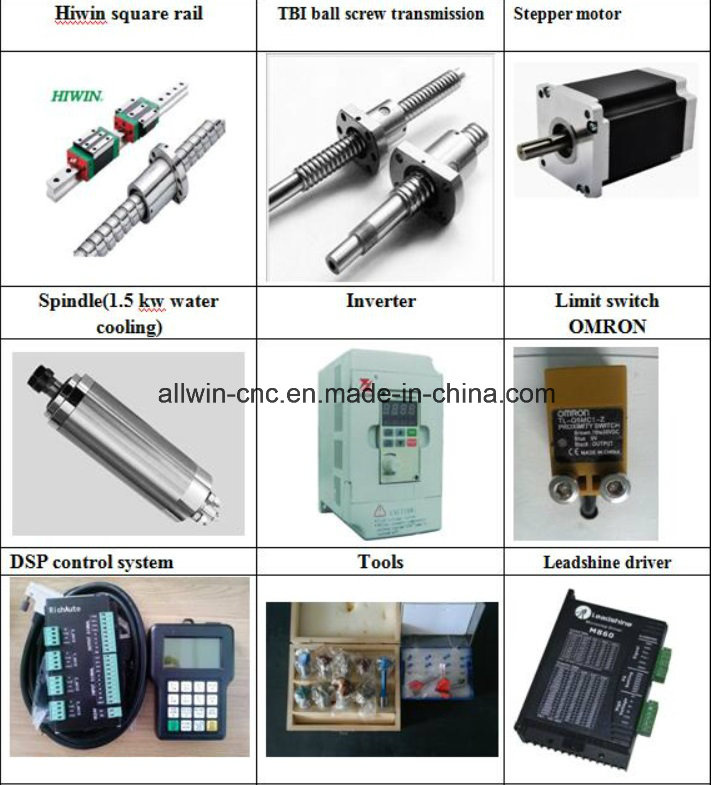

| Xyz Transmission: | Tbi Ball Screw and Hiwin Linear |
| Table: | Tab T-Slot |
| Driver: | Leadshine or Optional |
| Inverter: | Fuling or Delta |
| Cutting Material: | Stone Metal or Wood |
| Service Provided: | Engineers Available in Oversea |
| Xyz: | Square Linear Guide Rail |
| Control System: | Match 3 DSP or Weihong |
| Carving Material: | Wood Metal So on |
Mini cnc milling machine Features
Spindle: 1.5KW Chinese Spindle
Driving System: Stepper
Operating System: NC ARM Hand Held
Table Surface: T-Slot Extrusions
Japanese OMRON Switch
2D, 3D CAD/CAM Machining Capabilities. Perfect for Machinist,
Signmaker Artist, Engraver etc.

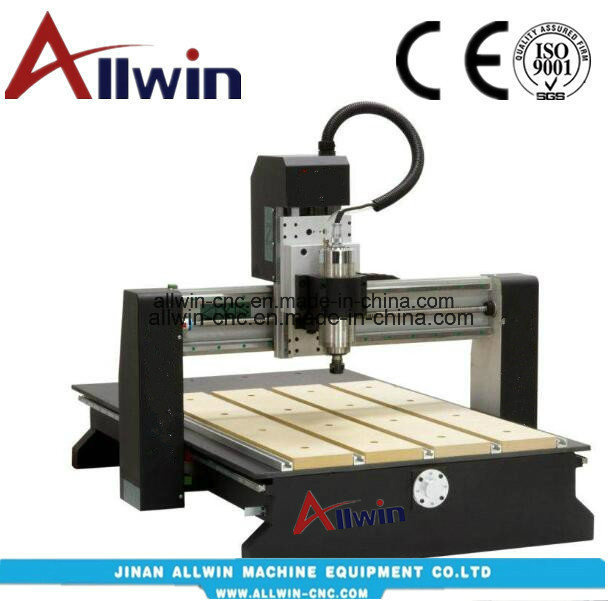

Mini cnc milling machine
| Functions | Parameter |
| Working Size | 300*300*100 mm |
| Table Size | 300*300mm |
| Table Structure | T-slot Extrusions |
| Transmission | X,Y ,Z Ball Screw |
| Speed | MAX Travelling Speed :6000 mm/min |
| MAX Working Speed :5000 mm/min | |
| Spindle Power | 1.5KW Self-Cooling Spindle |
| Spindle Speed | 24000r/min |
| Driving System | Stepper |
| Working Voltage | AC220V/1PH/50Hz/60Hz |
| OOperating perating System | NC ARM Hand Held |
| Net Weight | 60KG |
| Gross Weight | 84KG |
| Option | Operating System: NC PCI Controller |
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.Customized:Support
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.

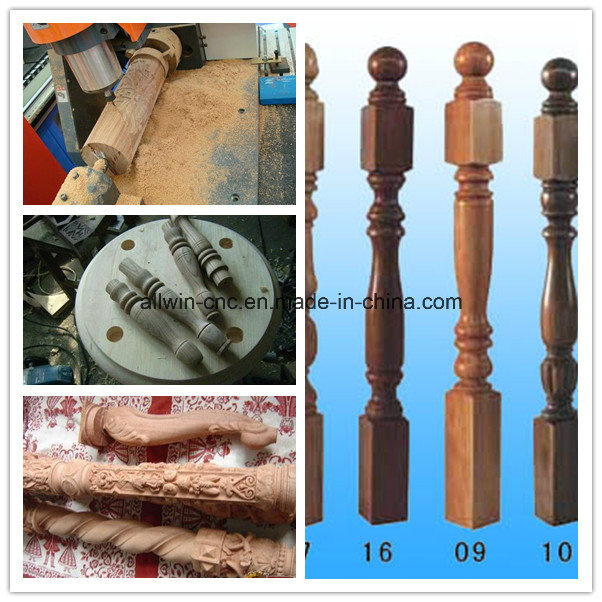

Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Packing & shipment :
Save space as much as possible for container loading.
