| Price: | US $ 25999-59999/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE-3030 |
|---|---|
| Voltage: | 380 V 3pH |
| Weight: | 7300kg |
| Reducer: | Germany Brand |
| Warranty: | 12 Months for Whole Machine |
| Motor: | Japan Yaskawa Servo Motor |
| Transmission: | Helical Rack Transmission |
| Orbit: | Taiwan Hiwin Linear Guide |
| Dimension(L*W*H): | 2300X4800X1900mm |
| Power(W): | 9kw |
| Spindle Speed: | 24000rpm/Min |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |

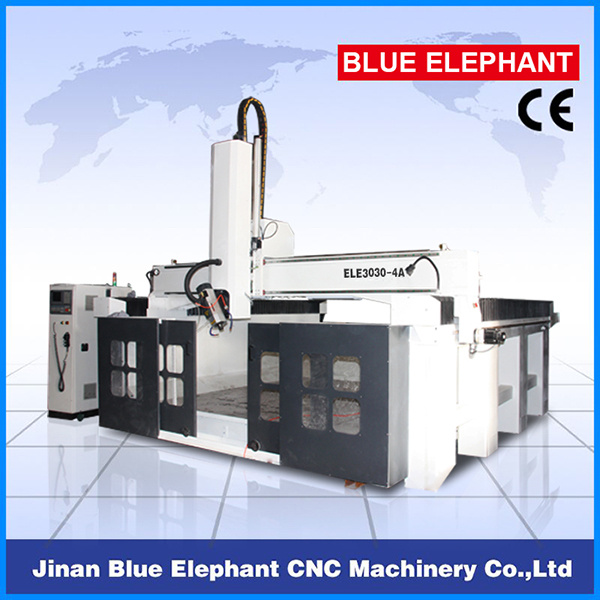

Parameters of 4 axis cnc router
Description | Parameter |
X,Y,Z Working Area | 3000x3000x1000mm*180° |
X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
X,Y,Z repositioning Accuracy | ±0.01mm |
Table Surface | Milling steel table (T-slot) |
Frame | Welded structure (cast iron) |

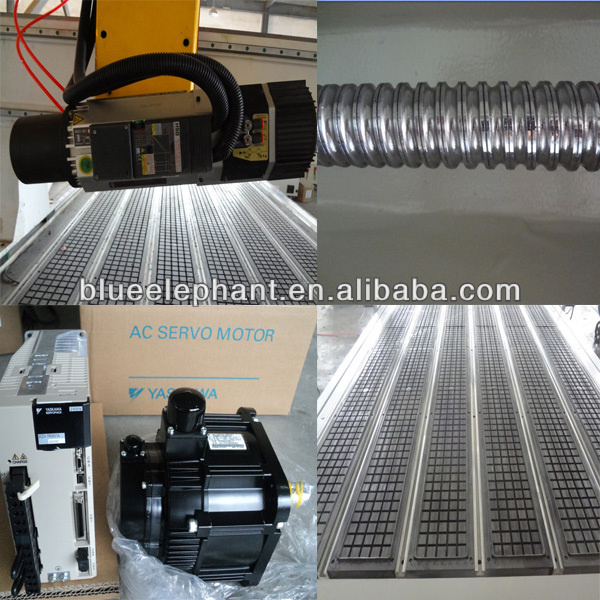

X, Y Structure | Oblique Rack and Pinion Drive from Taiwan, Hiwin Rail Linear Bearings:X axis, Y axis, 30mm |
Z Structure | Ball Screw, Hiwin Rail Linear Bearings :Z axis, 25mm |
Max. Power Consumption | (Without spindle) 6.5Kw |
Max. Rapid Travel Rate | 40000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 9KW Italy HSD ATC air cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | Yaskawa servo system : 1.3kw Z axis is with band brake |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
Command Language | G code |
Operating System | Syntec control System : EZ3M (Osai) |
Computer Interface | Ethernet |
Flash Memory | 256 M(with CF card) |
Collet | BT40 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3, UcancameV9, Art cam software |
Running Environment Temperature | 0degree - 45 degree |
Relative Humidity | 30% - 75% |
Packing Size | 2300X4800X1900mm (in parts) |
N.W. | 7300KG |
G.W. | 8000KG |
Guarantee | One year from the date of commission |
Optional Parts | Air cooling spindle or Water cooling spindle |
Dust collector | |
Rotary system | |
Mist-cooling system | |
Panasonic Servo motors/Delta servo motors |
Features of hot sale 4 axis cnc router
1,The machine is particularly suitable for automotive foam mold, wooden ship model, wooden model aviation,trains and other wooden mold.
2,We use top-quality four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine. It can balance the force in all directions to ensure the machine's accuracy and strength when engraving.
3,The route of Z axis can be heightened to 1000mm, so it is suitable for processing large-scale and super-thickmaterial.
4,The design documents of intelligent processing cross-border protection can prevent the excessive process caused by mechanical impact.
5,The diversified processing speed can be controlled separately. The speed of idle running and roll setting improve the quality of processed products and processing efficiency greatly.
Application:
1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,MDF, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificialmarble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
Samples:
Packaging & Delivery
Packaging Details:1. Outside package: Standard marine export plywood cases
2. Inner package: Stretch film and plastic film for humidityDelivery Detail:15-30 working days after receiving payments or deposit.
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory. 8.Machine will be adjusted before it is delivered , operation disk/CD was included.
