Ele 6015 Desktop CNC Milling Machine CNC Router for Sale
| Price: |
US $ 1999-2999/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ELE 6015 |
| Power(W): |
1.5kw |
| Voltage: |
AC380V/50/60Hz, 3pH (Option: 220V) |
| Weight: |
170kg |
| Warranty: |
12 Months |
| Moving Type: |
Gantry Moving |
| Spindle: |
1500W Water Cooling Spindle |
| Table: |
T-Slot Table |
| Driver: |
Yako 2608 Big Driver |
| Transmission: |
Tbi Ball Screw |
| Orbit: |
Taiwan Hiwin Linear Guide |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description

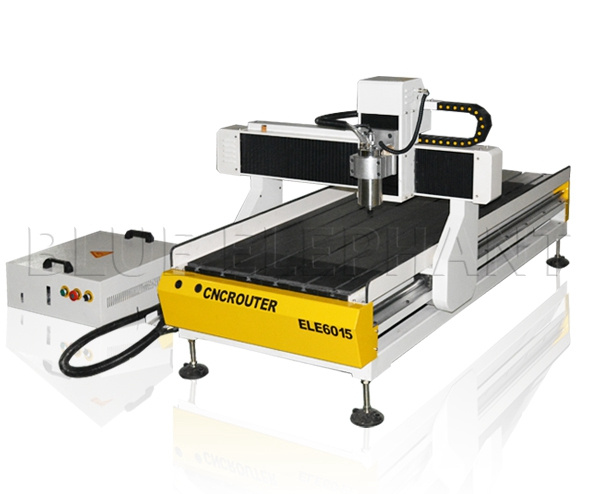

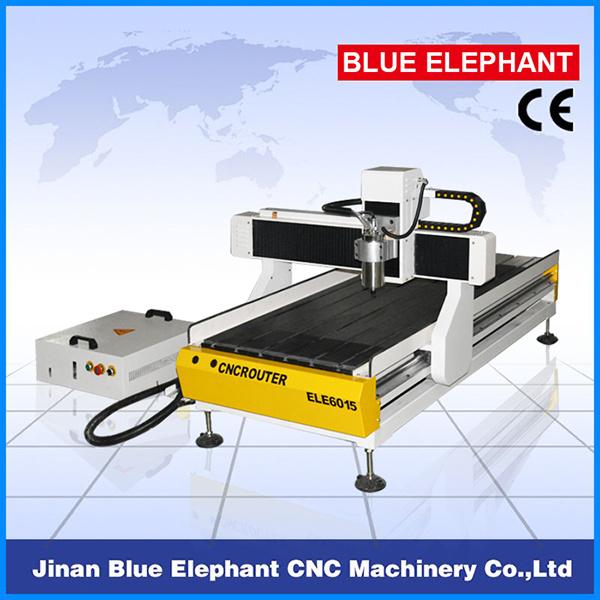

6015 desktop cnc milling machine, mini desktop milling cnc router
Main features:1). Adopt constant power water-cooled frequency spindle, great cooling effect, high speed,
low noise and long life.
2). It is very suitable for CNC hobby friends, small engraving shop and factories as well.
3). Popular DSP control system is very easy for every buyer and beginner,and no need to be
connected with a computer,very convenient; easy to operate.
4). Ball screw gives it good resolution and less noise. We use Taiwan TBI brand,more stable
and precise.
5). We use accurate LM linear (HIWIN) for Y axis, more stable,higher precision,longer lifetime
and lower noise.
6).We use YAKO 2608 driver,very powerful,ensuring the machine is stable and long lifetime.
7).We use Highly flexible towline; fire-resistant double-sheathed cable, Prevent electrostatic
interference;also with cable carrier outside to protect the cable. Specifications:
Working area | 600*1500/600*900*120mm |
Table | Aluminum profile T-slot working table with PVC protection |
Spindle power | 1.5kw water cooling,24000rpm(option:HSD air cooling spindle) |
Motor system | Stepper motor system(option:servo motor) |
Control system | DSP with USB interface |
Transmission | TBI ballscrew from Taiwan |
Linear rail | Taiwan HIWIN linear guide for Y axis |
Inverter | 1.5kw Fu Ling inverter(option:Delta inverter fromTaiwan) |
Driver | YAKO 2608 driver(top brand in China) |
structure | cast iron bed |
Speed | Max travelling speed:6000mm/min |
Max working speed: 5000mm/min |
Switch | Japanese OMRON Switch |
Cable | Highly flexible towline;fire-resistant double-sheathed cable |
Software | Type3 |
Package | Plywood case |
Working voltage | AC220V/1PH/50Hz (option:110V) |

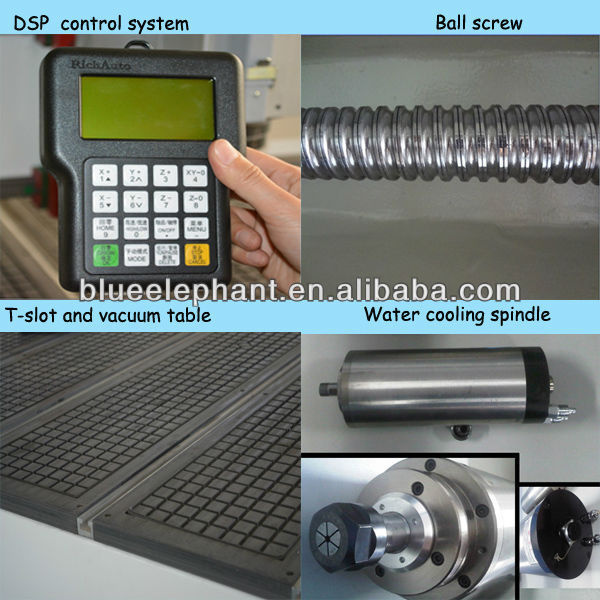

Main parts:
Applications:1).WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2).Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making, blaster molding,and other advertising materials derivatives making.
3).Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial
marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4).Relief sculpture and 3D engraving.
5).Cylindrical object.Samples:
Packaging & Delivery
| Packaging Details: | Standard wood box package for cnc milling machine. |
|---|
| Delivery Detail: | Whithin 7 working days after confimation of payment. |
|---|
Our Service:1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.Welcome to our factory:
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
- Just looking forward to service every customer, like you.
Contact us:
Mobile: 0086-15064026772
Web: www.elephant-cnc.com
Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
We have always been devoting to the research and manufacture of CNC engraving machines. We have R&D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in woodworking, advertising, model, electric, CAD/CAM industry model, clothing, package printing, marking, laser sealing and so on.
We can offer you the high quality products with the competitive price. Our products have got CE certificate. Our main products are as follows: CNC router, laser engraving and cutting machine, laser cutting machine, marble CNC router, cutting plotter, plasma metal cutting machine, advertising CNC router and so on.
Business Type: Manufacturer, OEM, ODM
Main Products: Wood CNC router machine, laser engraving and cutting machine, stone CNC router, plasma cutting machine, laser machine
Location: Shandong, China (Mainland)
Year Established: 2013
Number of Employees: 11 - 50 People
Total Revenue: US$10 Million - US$50Million
Main Markets: Oceania, Western Europe, North America, Africa, Southeast Asia
