Name: Fabric Laser Cutting Machine for Clothes Making
Brand: china-crystals.com
SKU: 695370082
Availability: InStock
Rating: 5 (102 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	HX- 1525Z
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	High Power
Drive Type:	Stepper Drive
Engraving Machine Type:	Laser Engraving Machine
Control:	Automatic
Current:	AC
Laser Type:	CO2
Usage:	Plastic
Certification:	GS, CE
Condition:	New

Product Description

1. It is high-tech laser engraving machine developed by our company, which integrate computer, laser technology, automatic control and precise optical machinery.
2. Features:

- Auto-feeding system for continuous and automatic cutting process

- Vacuum exhaust absorption worktable

-Faster speed, smooth cutting and small joint

-Totally enclosed lightway, powerful security

-Imported linear guideway, higher precision

Application:

-Clothing cutting

Applicable materials:

Non-metal materials such as double color board, Plexiglas, glass, bamboo and wood, rubber, marble, granite and tiles,leather
Applicable industry:

Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery,decoration and upholster industry.

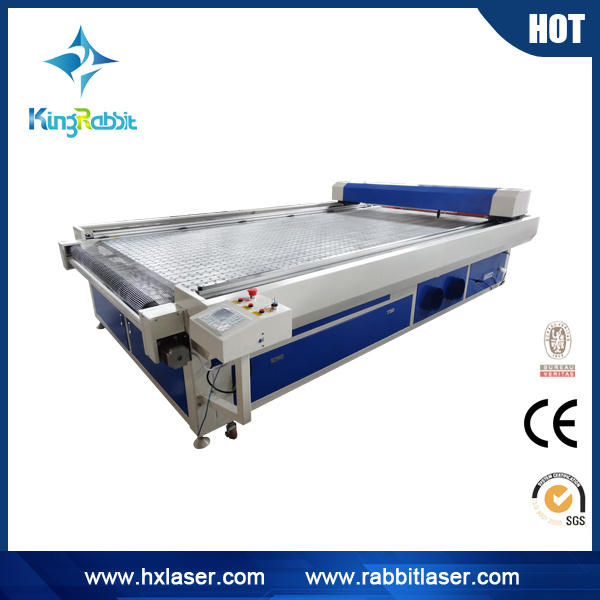

Detail pictures of machine:

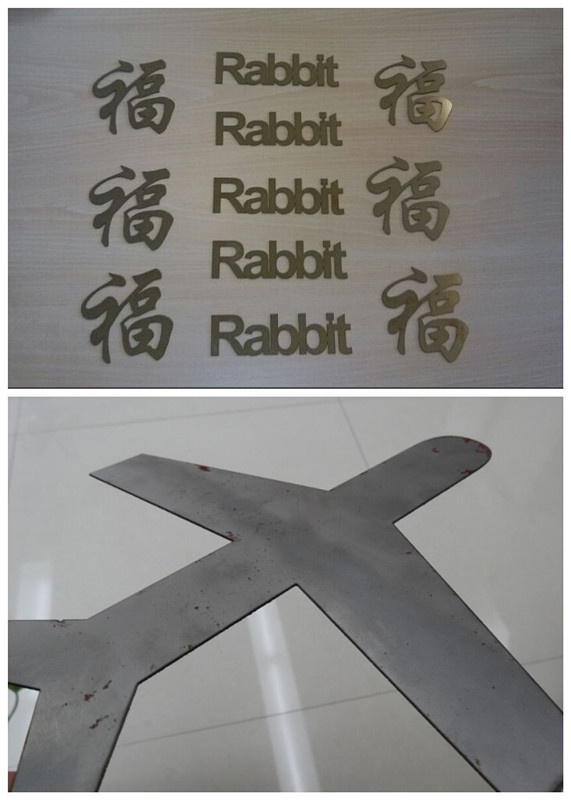

Pictures of sample:

Parameter	HX- 1525Z
Working area	1500 x 2500mm
Max auto-feeding width	1650mm
Laser power	80W/100W/130W
Laser type	CO2 Laser tube
Feeding speed	1-300mm/s
Feeding length	Limitless
Cutting Speed	0 - 200mm/s
Resetting positioning accuracy	<0.01mm
Cutting Depth	Acrylic 0~25mm
Maximum forming character	English:1.5 x 1.5mm
Power supply	220V±10% 50HZ or 110V±10% 60HZ
Software supported	ArtCut, CorelDraw, PhotoShop, AutoCAD
Graphic format supported	.PLT \ DXF \ BMP \ JPG \ GIF \ PGN \ TIF
Water Cooling	Yes
Laser Tube (life hours)	1500 hours
Assistant Equipment	Water pump	Exhaust Fan	aluminium alloy worktable
Optional spare parts	Water cooling system
Recommended Spare Parts/Consumables	Laser Tube and Lens
Dimension	3130 x 1860 x 960mm

JINAN KING RABBIT TECHNOLOGY DEVELOPMENT Co., Ltd. Was founded in 1999. It mainly produces laser Engraving/Cutting Machine, Vinyl Plotter, CAD Plotter and CNC Router, and is a high scientific and technical enterprise that combines research, development, production and sale together.

For many years, the company has been devoting to the developing of optical, mechanic and electric integral technology and products which have received independent intellectual rights. It widely cooperates with foreign and domestic experts, univerersities and colleges, continuously explores and keeps forging ahead, forms an enterprise team with strong strength, special skill and innovative creation.

KING RABBIT Company relies on many years of market experience, and has established a relatively stable, continuously expanding and perfect sale and after-sale service network. Our products have been spread all over the country and some of them have been exported to more than 60 countries in the world.

The Laser Engraving/Cutting Machine which is developed by KING RABBIT Company independently has been more and more widely used in various industries such as Arts and Crafts processing, Advertising Decoration, Clothing cut-out, Leather processing, Model and Printed hectograph making and so on.

KING RABBIT Company adheres to the product manufacturing concept of "excellent quality; Innovative science and technology", insists on the enterprise spirit of "credit first; Service foremost", and is willing to cooperate with friends both home and abroad to create a brighter future.
