Product Specifications
| Prod Model: |
ELE 1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
CNC Engraving Machine |
| Working Size: |
1300*2500*400mm |
| Control System: |
DSP A15 Control System for Wood Engraving Router |
| Spindle Speed: |
0-18000rpm |
| Spindle: |
Hqd Air Cooling Spindles for Wood Engraving Router |
| Spindle Power: |
4.5kw for Wood Engraving Router |
| Motor: |
FL118 Stepper Motors for Wood Engraving Router |
| Driver: |
Yako 2811 Big Drivers for Wood |
| Inverter: |
5.5kw Fuling Inverter for Wood |
| Table Surface: |
T-Slot and Vacuum Working Table |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description

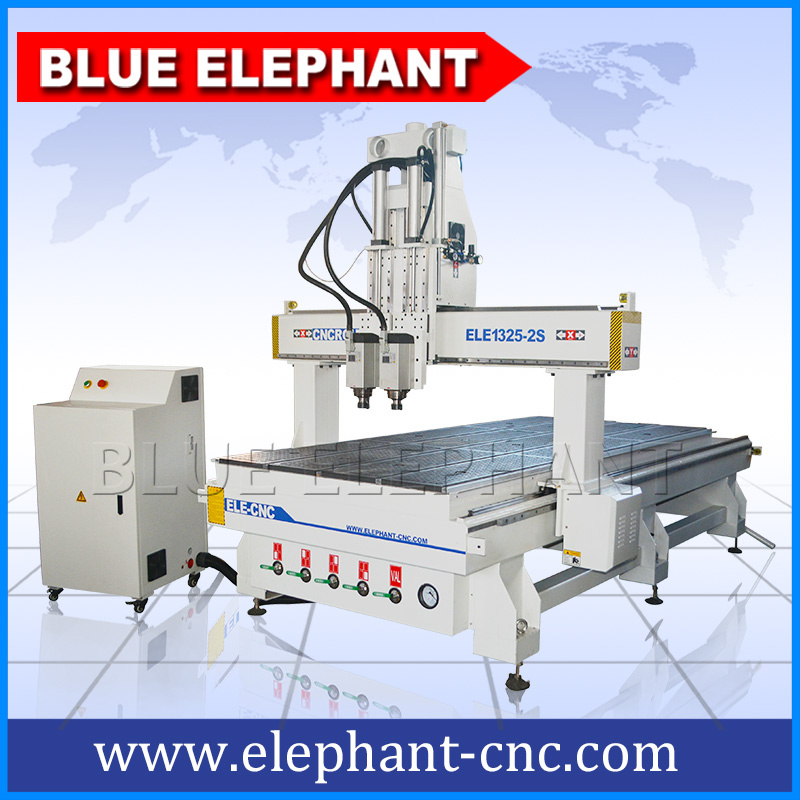

1325 Multi Spindle CNC Engraving Machine For Wood CNC Router From China Factory
Parameters of wood engraving router:
| Descriptions | Parameters |
| Model | ELE1325-2S |
| Working area | 1300*2500*400mm |
| Control system | Richauto DSP A15 control system |
| Working Voltage | 400V, 3Ph, 50Hz (220V 380V for optional) |
| Spindle | 2 sets 4.5kw HQD air cooling spindle |
| Spindle speed | 0-18000rpm |
| Inverter | 5.5kw Fuling inverter |
| Motor and Driver | FL118 stepper motor and Yako 2811 big driver |
| Table surface | T-slot and vacuum working table |
| Structure | New type thicker and bigger heavy duty welded frame and gantry |
| Lubrication system | Manual lubrication system |
| Transmission | X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw X,Y,Z axis: Taiwan PMI linear square rail #25 |
| Vacuum pump | 5.5kw water circulation vacuum pump, 400V, 3Ph, 50Hz |
| Control box | Separate double-sided control box |
| Software | Artcam |
| Vacuum Pump | 5.5kw Water cycle vacuum pump (415V, 3PH, 50HZ) |
| Dust collector | 1.5kw new type double bag vacuum cleaner (400V, 3Ph, 50Hz) |
| Others | Japan Omron limit switch Shanghai Cardiff wire |
PS:All the working area and specifications can be customized according to your requests.
Advantages of wood engraving router:

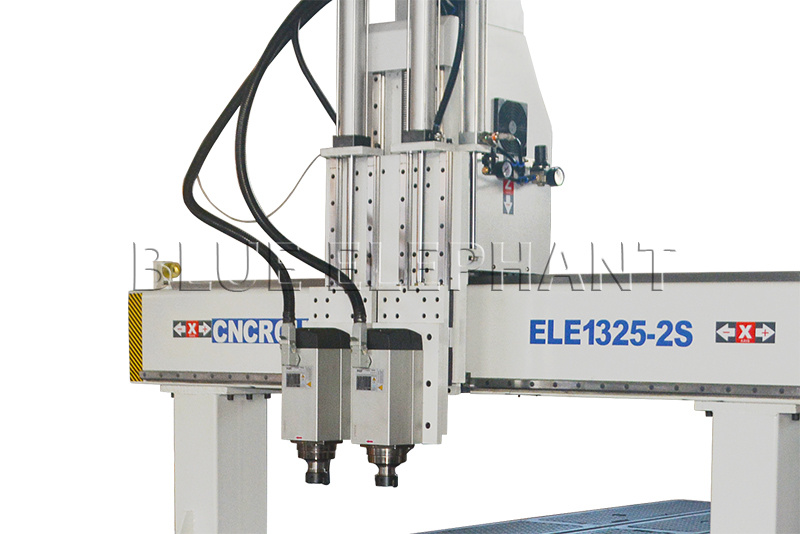

The pneumatic cnc router with two spindle, the two spindles do different work, they work one by one, it's a simple automatic tool changer cnc router.
Heavy duty frame and gantry 8-12mm, the machine Z axis is 400mm , it can process more thickness material.
The machine spindle is 4.5Kw HQD spindle. It's more economic and good performance.

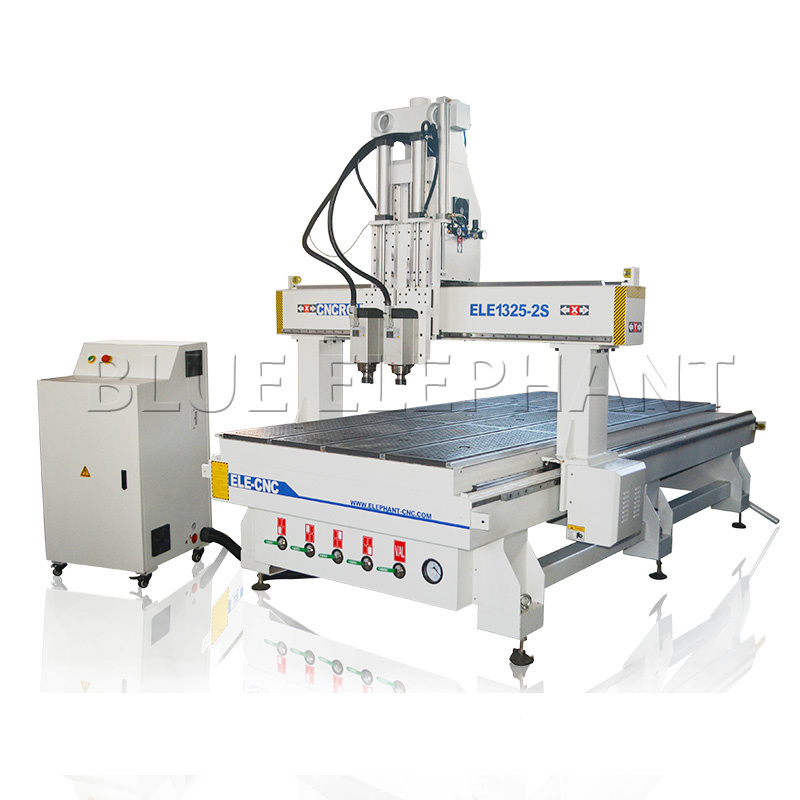

Product details of wood engraving router:
Features of wood engraving router:
- 1300*2500*400mm effective working area
- 4.5kw HQD air cooling spindle (2 spindles)
- 5.5kw Fuling inverter
- FL118 stepper motor and YAKO2811 big driver
- DSP A15 control system
- Taiwan PMI linear Guide #25
- French Schneider safety switch
- Vacuum and T-slot working table
- Japan OMRON limit switch for X, Y, Z axis
- Highly flexible towline, fire-resistant double-sheathed Shanghai Gardiff cable with UL certificate
- 10~12mm Heavy duty Body
- 5.5kw water vacuum pump
- Newest double bags dust collection system with CE certificate
- Manual lubrication System
- Tool sensor calibration
Applications:
- The wood products: wave board processing, wood door, folding screen, window, etc.various kinds of furniture products, wood door making.
- Advertising industry: ad signs, Logo making, acrylic cutting, HPL panels, the production of advertising decorative products.
- Furniture: wooden doors, cabinets, office and wood furniture, computer table, panel furniture, office furniture, wooden speakers, other furniture processing, etc.
- Other industries: Non-metallic mold industry, Poly dragon auto mould industry processing.
- Processing materials: MDF board, wood, organic glass, PVC board, metal, copper, aluminum, marble, crystal.
Samples:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 20 working days after payment.
Our ServiceA Guarantee:
12 months for the whole machine.
Within 12 months under normal use and maintenance,
if something is wrong with machine, you will get spare part for free.;
Out of 12 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.
B Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
C After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory. You
will also get free suggestion and consulting, technical support and service by

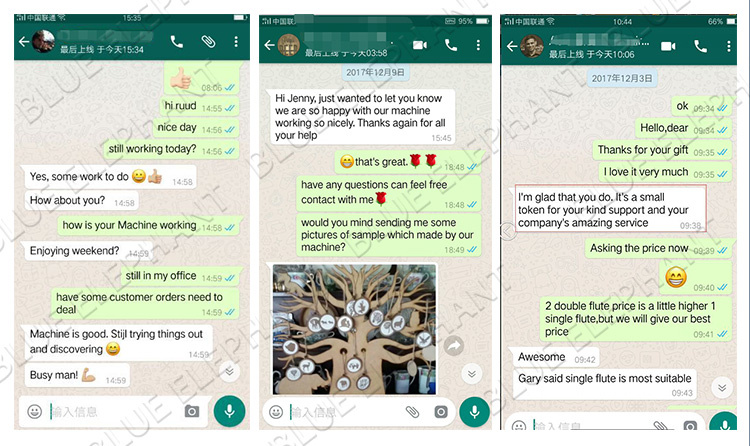

email/fax/tel and lifetime technical support. Feedback:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment

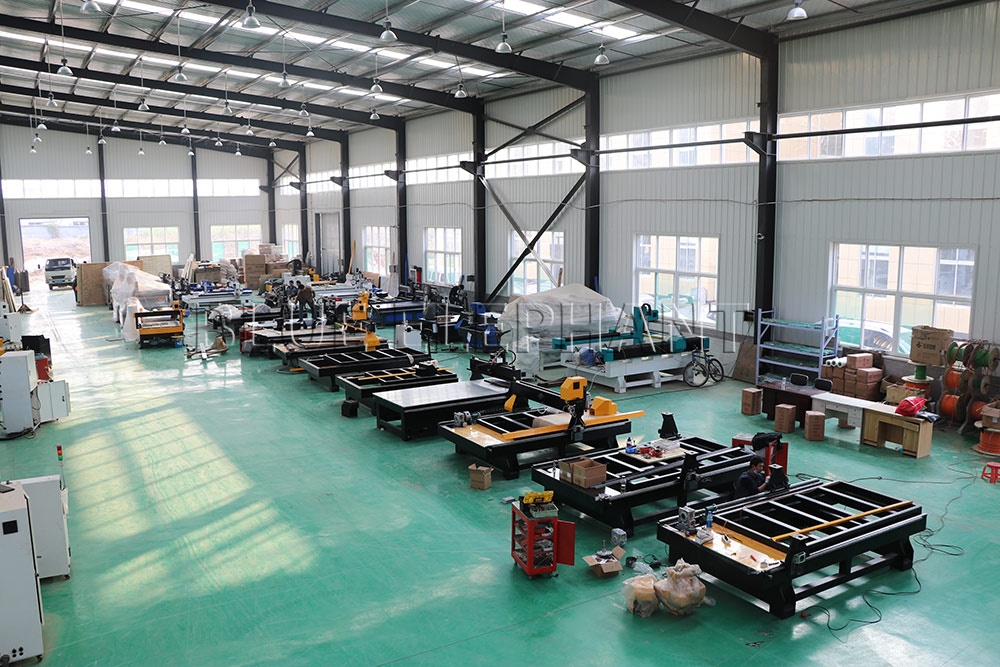

Welcome to our factory:
