Factory Price 3n5 Pure Tungsten Plate for High Temperature Furnance
| Price: |
US $ 30-8016 |
| Min Order: |
116 |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
W1 |
| Key Product: |
Factory Price Tungsten Sheet |
| Material: |
99.95 Pure Tungsten |
| Grade: |
W1 |
| Standard No.: |
ASTM B708 |
| Surface: |
Polished, Chemical Cleaning |
| Certificate: |
ISO9001:2015 |
| Size: |
Tungsten Sheets According Request |
| Processing: |
Rolled |
| Advantage: |
Factory Price Tungsten Sheet |
| Feature: |
High Temperature Resistance |
| Type: |
Tungsten Sheets |
Product Description

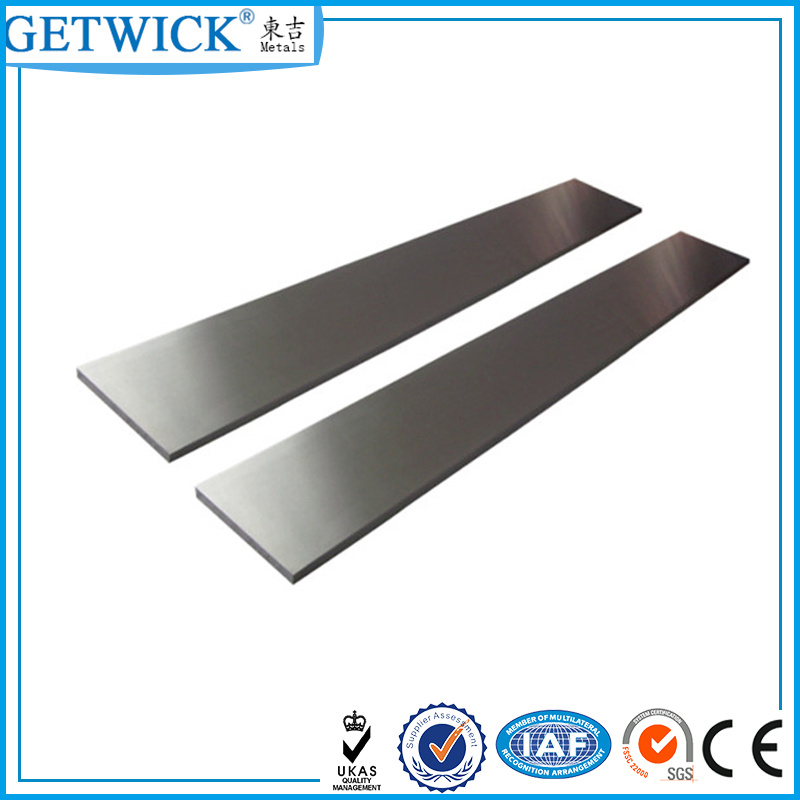

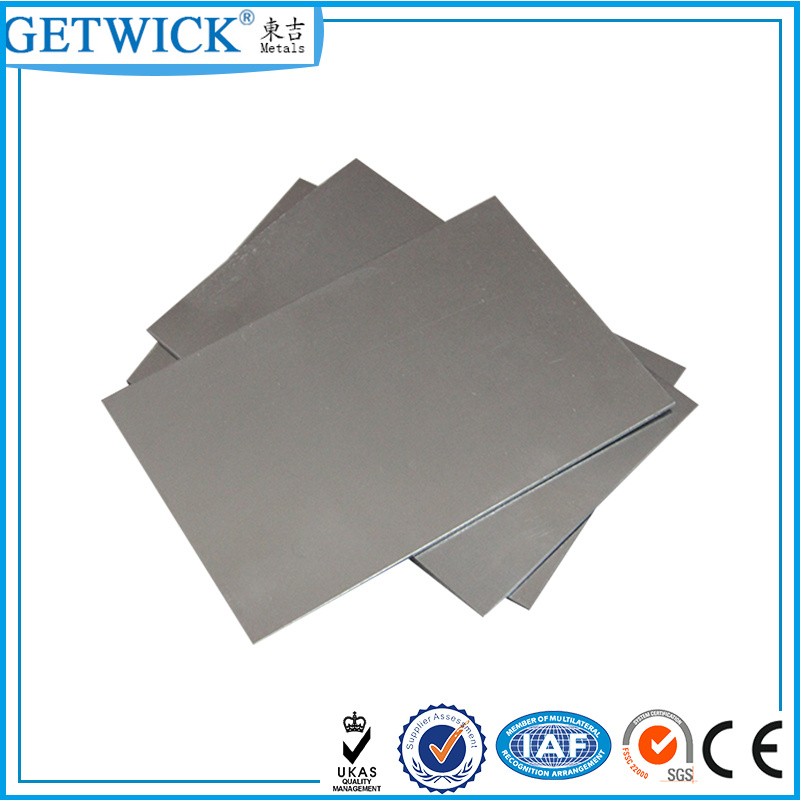

Factory Price 3N5 pure Tungsten Plate for high temperature furnance
Pure tungsten, also called wolfram products are widely used for furnace parts, semiconductor base plates, components for electron tubes, emission cathodes for electron beam evaporation, cathodes and anodes for ion implantation, tubes / boats for sintering of capacitors, targets for X-ray diagnostics, crucibles, heating elements, X-ray radiation shielding, sputtering targets and electrodes. Tungsten wire, plate, sheet, disc are popular types for the above application machining
Our tungsten is very popular for use in melting and solidification vessels in the field of sapphire crystal growth. Its high level of purity prevents any contamination of the sapphire crystal and its good creep resistance guarantees the product's dimensional stability. Even at extremely high temperatures, the results of the process remain stable.
We offer high purity 99.95% pure Tungsten plate with factory price for 10 years. Specification:
Product name: Tungsten plate sheet
Standard: ASTM B 760-07 ,GB/T3875-83
Grade: W1
Density: 19.3g/cm3
Purity: 99.95% min.
Size: T0.1mm min.*W400mm max.*L1000 mm max.
Melting point:3260ºC
Boiling point:5927ºC
Surface:Black Polished Alkali wash
Processing :Hot rolling and Cold rollingChemical composition:| Chemical composition |
| W | Impurity content ( % ) , ≤ |
| Al | Ca | Fe | Mg | Mo | Ni | Si | C | N | O |
| blance | 0.002 | 0.005 | 0.005 | 0.003 | 0.01 | 0.003 | 0.005 | 0.008 | 0.003 | 0.005 |
Dimension Range| NO. | Tungsten plate/sheet | Thickness | Width | Length | Basis |
| 1 | Normal size | min: 0.10mm
max: >6.0mm | <400mm | <1000mm | ASTM B760
ASTM B777
GB-T 3875 |
| 2 | Special size | 0.1~0.5 | Discussion | Discussion | As requests |
Why choose GETWICK? | 1 | More than 2000 products are available. |
| 2 | An ISO9001:2008 , ISO14001 ,C E Certified. |
| 3 | Offer you professional rare metal products and customized services. |
| 4 | We feedback in 24 hours online and provide professional advice on products. |
| 5 | With an annual output of 300 MT of tungsten & molybdenum and other precious metals. |
| 6 | More than 10 years experiences, Winning customers 'trust and satisfaction from all over the world. |
Located in Baoji Shaanxi, which is also called "Ti-Valley City", Shaanxi Getwick Nonferrous Metals Co., Ltd. Supplies different kinds of rare metal products since 2007. We passed ISO9001: 2008 and ISO14001: 2004 certificate in 2013. At the same year, our Nitinol Shape Memory Alloy R&D centre was set up. Till the end of 2017, we have 2 branch offices and 1 factory base.
We're committed to offer clients High quality products with most favorable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Our product line including: Tungsten, molybdenum, titanium, nickel, tantalum, niobium, zirconium, chromium...
We export goods to American, European countries such as Turkey, Swiss, Sweden, Unit Kingdom, Russia, Asia countries like Korea, Japan, Singapore, Thailand.
