| Price: | US $ 6000-15000set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE2030-3S |
|---|---|
| Voltage: | AC380V/50/60Hz, 3pH (Option: 220V) |
| Working Area: | 3200*2140*1850mm |
| After-Sales Service Provided: | Engineers Available to Service Machinery Overseas |
| Applicaion: | 3D CNC Wood Carving Machine |
| Control System: | Weihong Pm95A-3L Control System with Handle |
| Control Box: | an Empty Control Box, You Can Put Your Own Compute |
| Inverter: | 7.5kw Fuling Inverter |
| Drivers And Motors: | 750W Japan Yaskawa Servo Motors and Drivers |
| Lubrication System: | Semi-Automatic Lubrication System |
| Gantry Structure: | Gantry Moving |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |
Features:
Parameters:
| Description | Parameter |
| Model | ELE2030-3S |

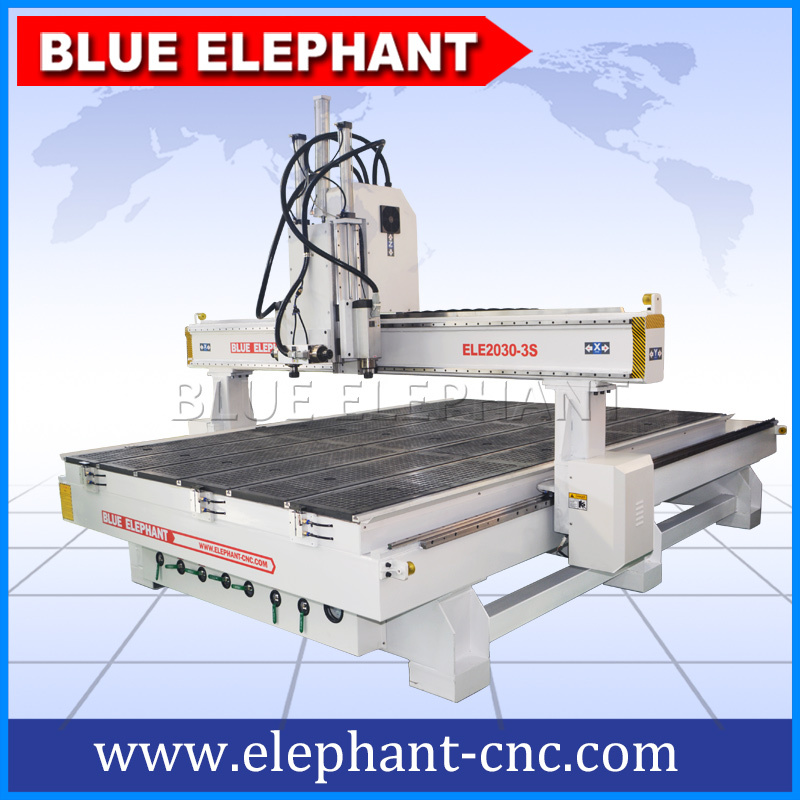

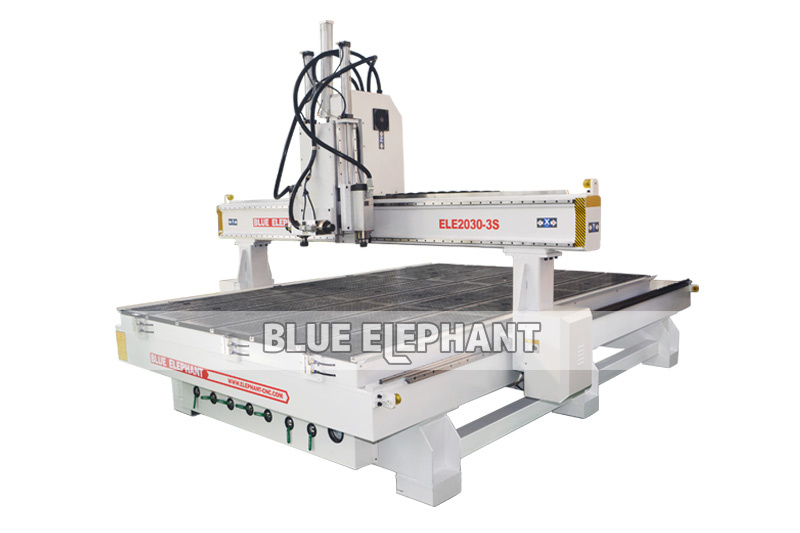

| Product Name | Pneumatic System 3 Spindles CNC Router |
| Color | The whole machine is white with red logo (Color can be customized) |
| Working Voltage | AC380V, 3Phase, 50Hz (Voltage can be customized according to local conditions) |
| Working Area | 2000*3000*300mm |
| Spindles | Vertical spindle: 1 set 6kw HQD air-cooled spindle 1 set 3.5kw HQD air-cooled spindle Horizontal spindle: 1 set 3.5kw Changsheng air-cooled spindle |
| Control System | WEIHONG PM95A-3L control system with handle |
| Control Box | An empty control box, you can put your own computer in it |
| Inverter | 7.5kw Fuling inverter |
| Drivers and Motors | 750w Japan YASKAWA servo motors and drivers |
| X,Y,Z Axis Transmission | X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw drive X,Y,Z rail: Taiwan PMI/ABBA linear square rail |

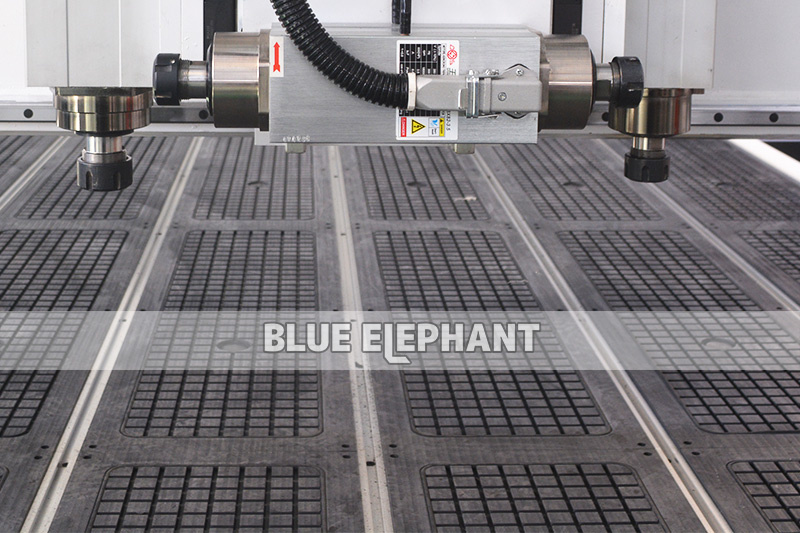

| Table Surface | T-slot and vacuum working table with 6 zones separately controlled |
| Lubrication System | Semi-automatic lubrication system |
| Gantry structure | Gantry moving |
| Mist cooling system | None (Optional: Water mist cooling sprayer, or Oil mist cooling sprayer) |
| Frame structure | New type 10-12mm thicker and bigger heavy duty welded frame and gantry |
| Vacuum Pump | 7.5kw air type vacuum pump (380v, 3ph, 50hz) |
| Dust Collector | None (Optional: New type double bag dust collector) |
| Positioning cylinder | A total of 7 sets: X-axis has 3 sets, and Y-axis has 4 sets |
PS:All the working area and specifications can be customized according to your requests.
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
