Product Specifications
| Prod Model: |
AKH-65 |
| Steel Body: |
Press machine |
| Hydraulic Press: |
Customize |
| CNC Type: |
punching machine |
| Type: |
High-Speed Punching Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
Product Description

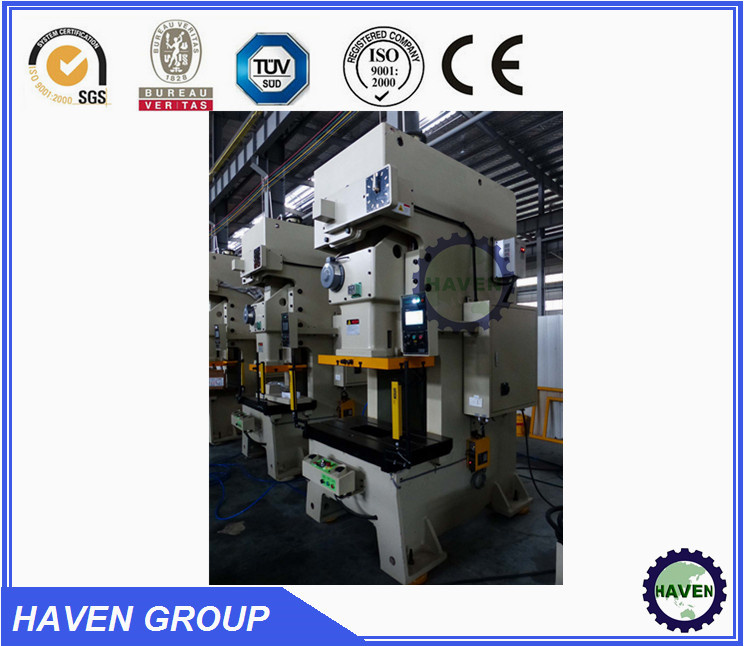

high speed power press machine punching metal
Features:
high precision stamping machine,compact steel frame,siemens motor,DELTA PLC ,NSK bearing.
TAIWAN TECO motor
Italy OMPI dry clutch
Japan TACO double solenoid valve
Japan NSK bearing, oil seal, seals
Japan PLC
AKH Series Special High Speed Preed Precision Press Machine
Tri-round guide polar slider structure , ally bush, added forced lubricating,so having minimum heating and highest precision.
Dynamic balancing system, can balance the vibration caused by slider and crank running in high speed, keep stability of lower dead point.
Manual mold height adjusting, equipped mold height indicator and oil pressure mold interlock device.
Person machine interface (electronic cam+rotary encoder) convenience andaccuracy in operation.
The wholly operation function display liquid crystal screen as well as the automtic machine seat trouble dispaly.
The high sensitive clutch/brake, international up-to-date single-link electromagnetic valve, guarantee accuracy and safety of running and stop of slider.
Electorate electric loop design are compostable with various automatic equipments, reduce cost and improve efficiency for autoimmunization production.
| Name | | AKH-65 | |
| Model | | A | B |
| Capacity | Ton | 60 | |
| Stroke | mm | 30 | |
| Stroke per minute | s.p.m | 200-400 | 200-550 |
| Die height | mm | 305 | |
| Bolster | mm | 840*470*105 | |
| Area of slide | mm | 550*340 | |
| Slide adjustment | mm | 30 | |
| Bed opening | mm | 320*160 | |
| Motor | kw | 7.5 | |
| Press precision | | JB/T6580-93(JIS 1Class) | |
| Lubrcation | | Forceful Autom ation | |
| Speed control | | Inverter | |
| Clutch & brake | | Air & Frication | |
| Auto top stop | | Standard | |
| Vlibration system | | Optional | |
Standard Accessories
Top stop
Manual slide adjusting device
Die height indicator
Inverter
Programmabhle logical controller
Touch pad (preset counter, angle indicator include)
Encorder(electrical)2 sets obligate
Operation cabinet at the front of frame
Air outlet
Sticking release divice
Mainmotor (adjustable)
Hydraulic die locking device
Mechanical crank angle indicator
Circulated lubricaton system
Tool box
User manual
Socket
Separate comtrol cabinet
Optional Accessories
Anti-vibration
Amounts
Feeder
Decoiler
Matrerial
Lubrication device
B.D.C. Detector
Oil cooler
Die room light
Air Ejector
Nantong Haven Machinery Co., Ltd. is specialized in manufacture metal forming machinery
And equipment, such as Hydraulic Press, Hydraulic Press Brake, Hydraulic Shearing Machine, Hydraulic Rolling Machine and other metal forming machine. Our business scope also includes
Contracting overseas projects and engineer training services with over 20 years experience, our
Products have been exported to more than 40 countries and regions, that including German, USA,
Canada, UK, Poland, Spain, Netherlands, Denmark, Greece, Australia, New Zealand, Singapore,
Malaysia, Thailand, India, Indonesia, Middle East countries etc. To supply better service for Euro
Customer and South East Asia customer, we also have set branch company in Poland and Malaysia.
HAVEN has its own workshop in Haian county of Nantong city, we have professional quality control
Team who can inspect every machine carefully in our workshop before delivery. Our target is: High
Quality, excellent service, efficient co-operation, reliable honesty.
HAVEN releases products information through Made-in-China over 9 years ( has passed the SGS
Certificate for AUDITED SUPPLIER ) and Alibaba over 8 years ( has passed GOLDEN SUPPLIER
ASSESSMENT, Bureau Veritas Certificate), we will keep spirit of innovation to improve our machine
Both inner quality and appearance. You are welcome to visit our website and contact us, We will give
You quick response upon any of your requirement.
