| Price: | US $ 2150/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | 4040 |
|---|---|
| Service: | Offering Oversea Service |
| Voltage: | 220/380V |
| Table: | T-Slot Aluminum |
| Spindle Power: | 3.0kw/4.5kw/6kw |
| Driver: | Leadshine |
| Motor: | Stepper Motor |
| X,Y,Z Traveling: | 400X400X100mm |
| Inverter: | Fuling or Delta |
| Z Working Area: | Flexible |
| Memory: | Memory Support&Nbsp;U-Disk |
| Function: | Lettering |
| Automation: | Manual |
| Control: | CNC |
| Current: | AC |
| Application: | Stone Industry |
| Application Material: | Wood Metal So on |

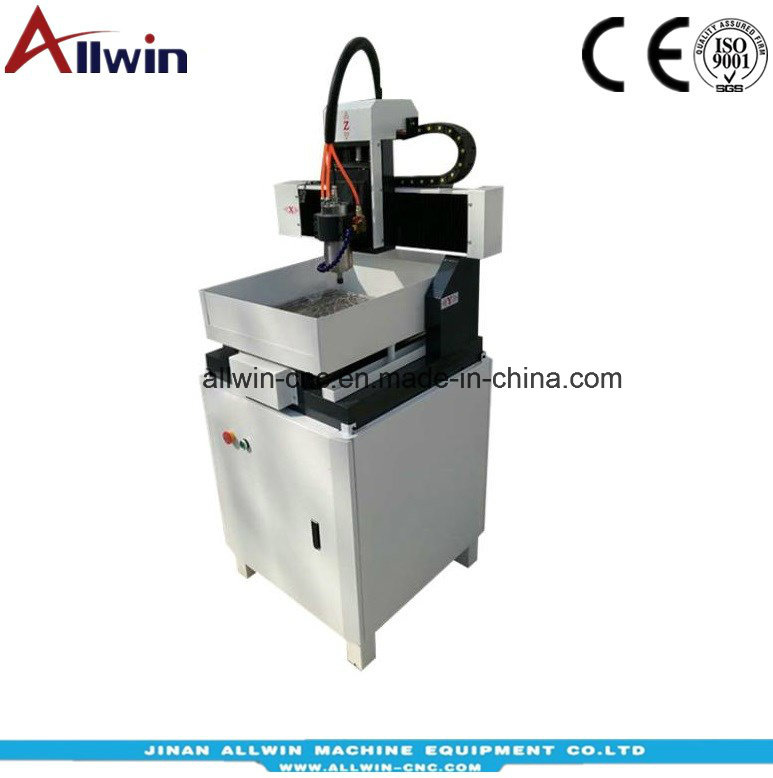

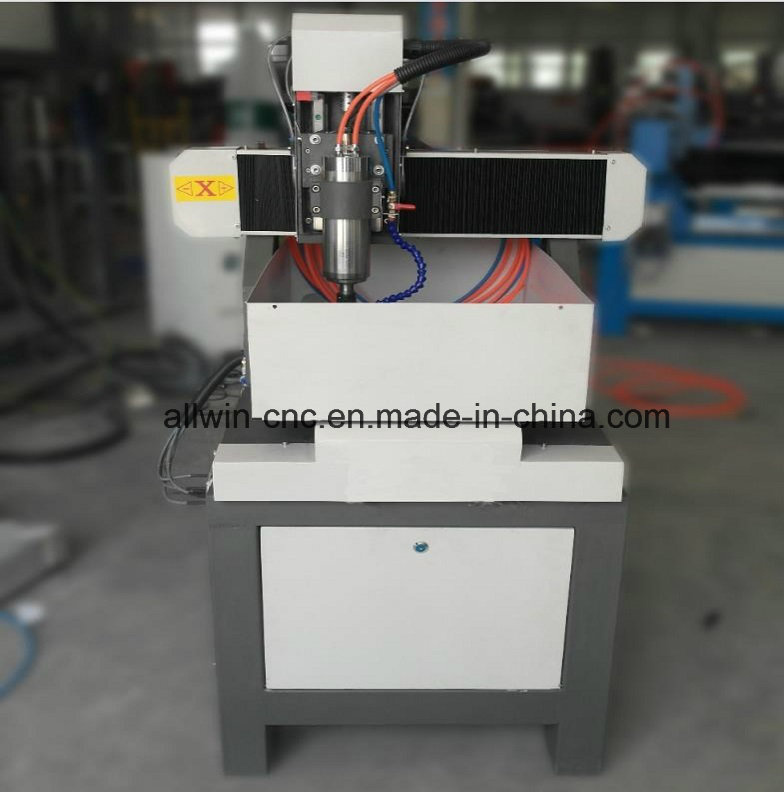

Hot Sale Mini CNC Router 4040 4 Axis CNC Milling Machine with Half surrounded
Advantages:
1.Advertising/artwork/woodworking/cutting
2.CE, SGS,ISO
3.Customized:Yes
4.High sensitivity
5.High efficiency
6. Warranty: 1 year
7. Engineers Available to Service Machinery Overseas
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury: Cnc router can engrave all kinds of signage,logo products, trademarks, nameplates, badges, decorative gift, embossed
medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry:
In the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Technic specification:
400x400mm Metal Cnc Milling Machine With Half surrounded.

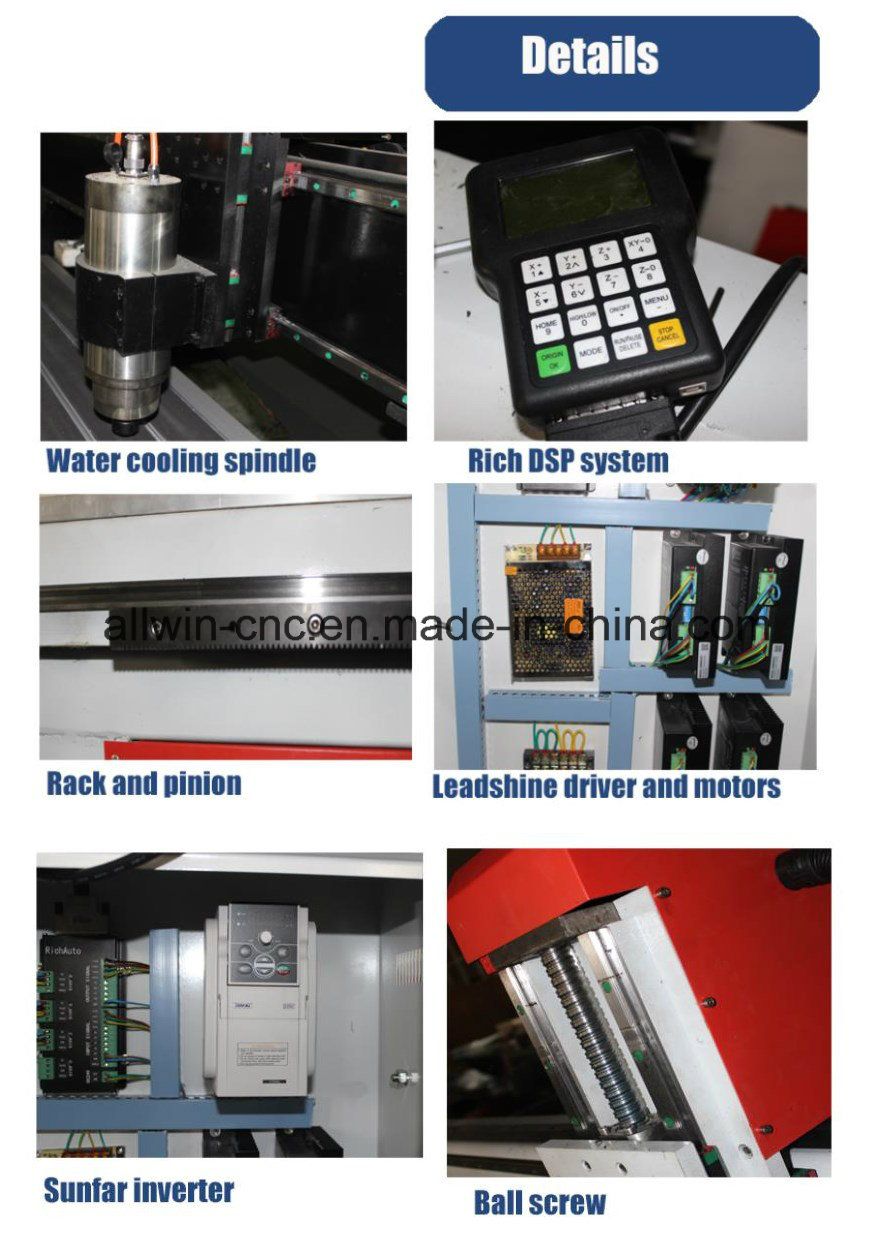

Features:
1. Aluminum grooved and moving table, ideal for machining metal or wooden molds
2. Axes X, Y, Z are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity
3. TBI ball screw transmission improves positioning accuracy and fast speed
4. Selection of high speed 3.0kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials.
5. With the Ncstudio operating system, it has the breakpoint memory function, which allows you to continue working in the event of a power failure or next day's workrements.
Parameter:
Model: | ALLWIN-4040 CNC ROUTER |
Machine body: | Whole cast iron |
Guideway: | XYZ-axis use square guideway |
Driving mode : | XYZ-axis use ball screw |
X,Y-axis working area : | 400*400mm |
Z-axis working area: | 80-100mm |
Max. Feeding height: | 100mm or bigger |
Cut thickness of material: | 80mm |
Max. Speed: | 8000mm/min |
Working speed : | 0-4000mm/min |
Mechanical precision: | 0.04mm/300mm |
Compatible Software: | Type 3 software , Artcut software , Artcam software |
Max. Power consumption: | 2.2KW |
Power source: | AC220/50HZ |
Driver type: | 542 prime mover |
Memory: | >256M |
Spindle: | 1.5KW(80mm)or3.0KW(100mm)variable speed , water-cooled motor |
Spindle speed: | 0-24000rpm |
Blade diameter: | 3.175mm,4mm,6mm |
Control system: | DSP control system |
Command: | G code |
Running circumstance temperature: | 0-45C |
Relative humidity: | 30%-75% |
Optional: | Rotary axis , vacuum table and dust collector |
Samples:
Package and shipping:
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package
Below: Steel Tube
FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents
