| Price: | Negotiable/Square Meter |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 50/Square Meter |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | BLP-STG |
|---|---|
| Markets: | North America,Southeast Asia,Mid East,Western Europe |
| Thickness: | 4mm+4mm, 5mm+5mm, 6mm+6mm,8mm+8mm |
| Max Specification: | 1800*3650mm |
| Glass Material: | Tempered Glassn,Float Glass and So on. |
| Type: | Float Glass |
| Structure: | Solid |
| Color: | Clear |
| Usage: | Window |
| Shape: | Curved or Flat |
| Appearance: | Curved or Flat |
| Layer Type: | Smart Laminated Glass |
| Function: | Electrochromism Between Opaque and Transparecy |
| Intermediate Film: | Pdlc Film |
Introduction

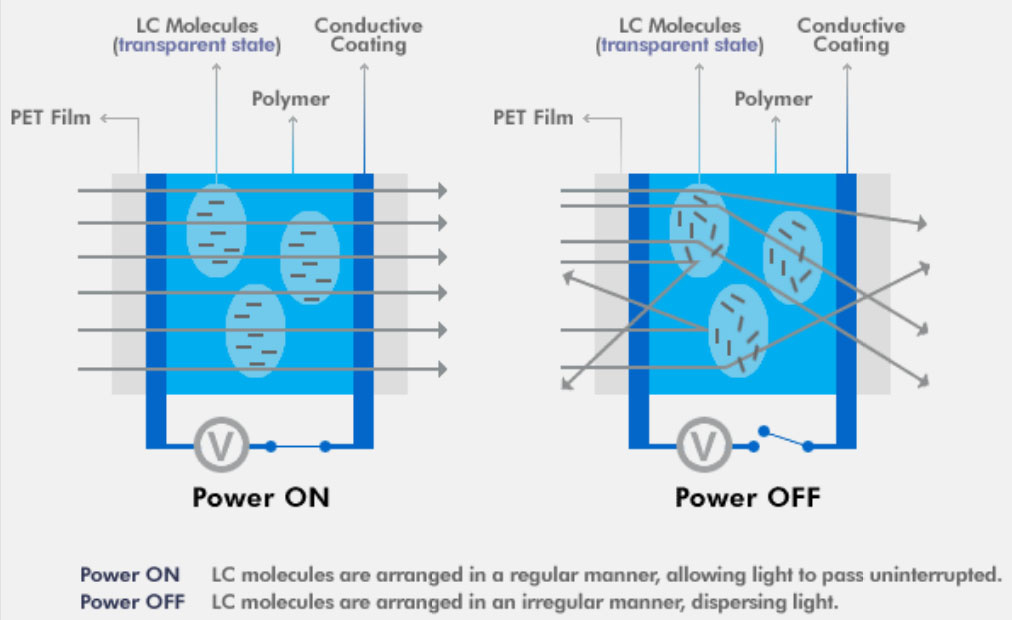

Principle and structure of switchable smart glass.
Glass Structure: Glass thickness(selectable) + Interlayer Film + PDLC film + Interlayer Film + Glass thickness(selectable).

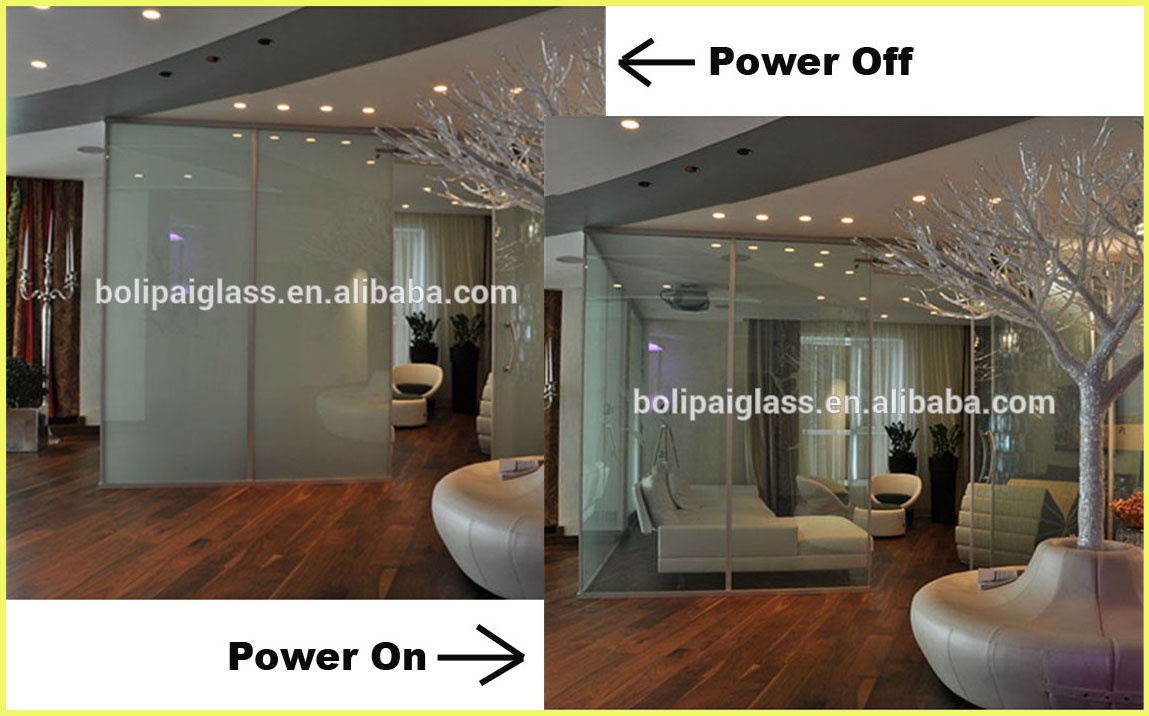

When Bolipai smart glass is connected power supply. Electrical current is passed through the PDLC (Polymer Dispersed Liquid Crystal) inter layer which aligns the microscopic crystals along a number of parallel axes, thus allowing vision through the glass. The glass stays opaque when in a power off mode.
| 1.Total ight transmittance: | ON >76% OFF>50% |
| 2. Haze: | ON<6% OFF>90% |
| 3. Minimum privacy distance: | 3cm (switch off) |
| 4. Operating Temperature: | -20 to 70 ( °C ) |
| 5. Storage Temperature: | <30°,humidity <85% |

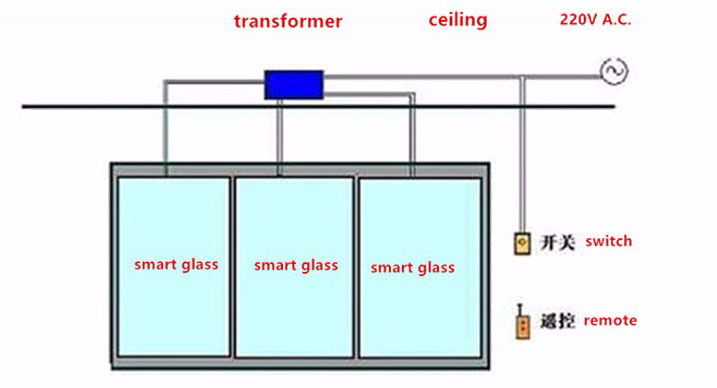

| 6. Rated Voltage: | 45 V(AC,50/60 Hz) |
| 7. Current: | <0.1A/sq |
| 8. Energy Consumption: | 4W/sq.m. |
| 9. Viewing Angle: | > 140 ° |
| 10. Rate of Anti-UV: | ≥98% |
| 11. Response Time: | < 45ms |
| 12. Working life: | >50000 hours |
| 13. Switching times: | >80,000,000 |
| 14. sound insulation: | >35dB |
| 15. heat insulation: | >class 2 |
| 16. shotgun bag impact: | II-1 |
| 17. Vibration performance: | GB18910.5-2008 |
| 18.falling-ball impact peel performance: | GB15763.3-2009 |
| 19. heat resistance: | GB15763.3-2009 |
| 20: damp heat test: | GB15763.3-2009 |
| 21: radiation resistance: | GB15763.3-2009 |
