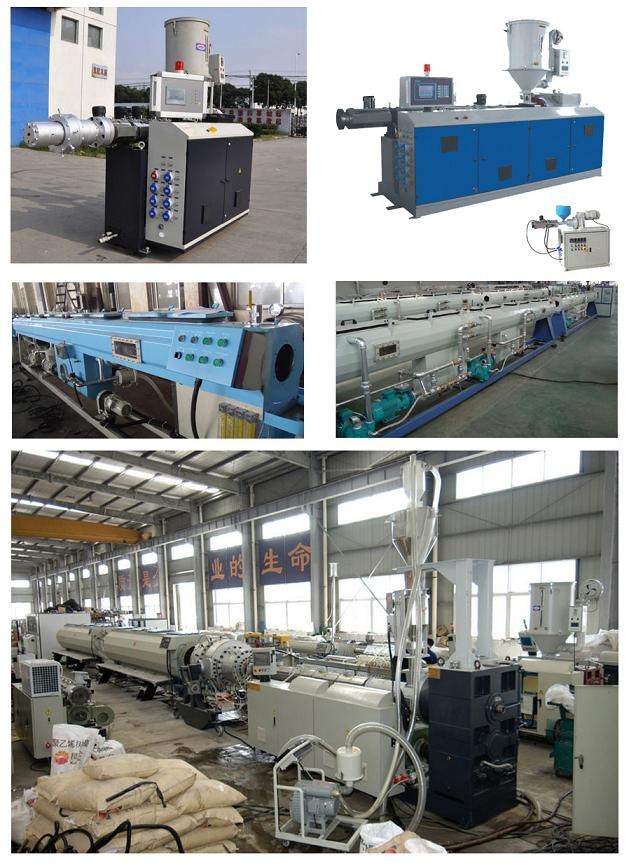

LDPE Pipe Extruder/Making Machines/ Production/Extrusion Line

Product Specifications

Prod Model:	YS630
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pipe Diameter:	16mm-630mm
Electrical Parts:	Siemens, ABB, Schneider
Motor:	Siemens
Extruder Control:	by PLC Screen Touch
PLC Brand:	Siemens
Speed Control:	by Inverter
Inverter:	ABB
Guarantee Period:	1 Year
Manufacturing Time:	50 Days
Delivery:	by Shipment
Product Type:	PE Pipe
Automation:	Automatic
Computerized:	Computerized
Certification:	ISO9001:2008

Product Description

Brief introduction of PE pipes:
PE feed pipe is special polyethylene as raw material with a plastic extruder extrusion molding, applied to urban water supply pipe network, the irrigation water diversion project and agricultural irrigation project, especially suitable for acid and alkali corrosion environment, the plastic tubing.Because of using PE pipe hot melt, hot melt connection to realize the integration of the interface and pipe, and can effectively resist the pressure of hoop stress and axial stress, the impact of heavy metals and PE pipes don't add salt stabilizers, material of non-toxic, not scaling, do not breed bacteria, to avoid the secondary pollution of drinking water.PE feed pipe is special polyethylene as raw material with a plastic extruder extrusion molding, applied to urban water supply pipe network, the irrigation water diversion project and agricultural irrigation project, especially suitable for acid and alkali corrosion environment, the plastic tubing.Because of using PE pipe hot melt, hot melt connection to realize the integration of the interface and pipe, and can effectively resist the pressure of hoop stress and axial stress, the impact of heavy metals and PE pipes don't add salt stabilizers, material of non-toxic, not scaling, do not breed bacteria, to avoid the secondary pollution of drinking water.

Usage of PE pipes:
Urban water supply system;
Conveying system in the domain of foodstuffs, chemical industry;
Sand and mud conveying system;
Landscape network;
Replacement of cement pipe, cast iron and steel pipe

Feature and Function of the machines:

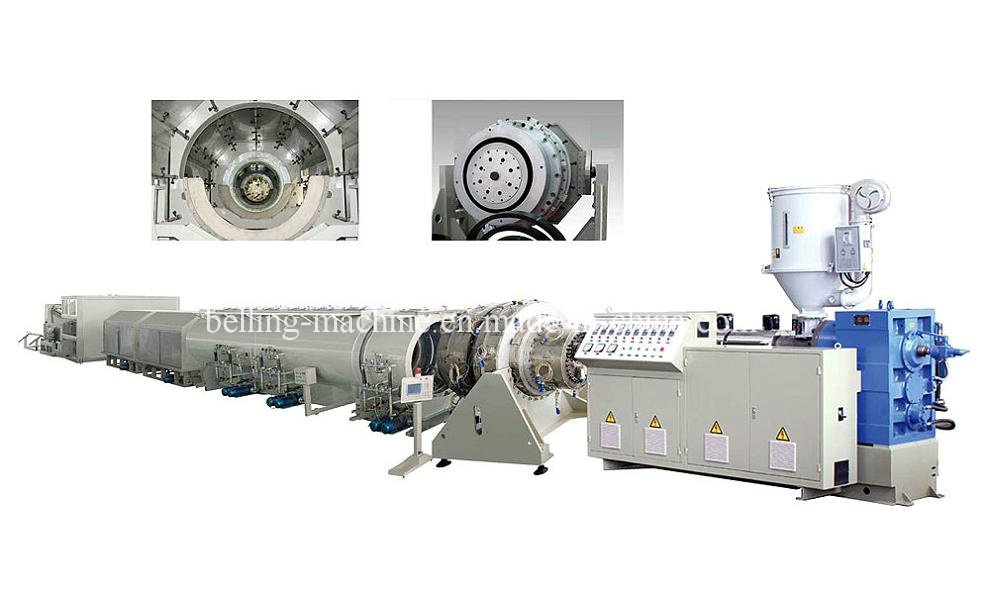

The screw of the extruder is equipped with barrier unit and mixing structure,and the barrel owns new style grooves.All of these offer good plastification and mixing effect.Special design of basket die head for HDPE(PP,ABS) large diameter pipe with thick wall offer lower melting temperature,good mixing,lower pressure of cavity,and stable production.
Special design for sizing and cooling system by using film and water ring to HDPE(PP,ABS) material,which can fit for the requirement of HDPE(PP,ABS).And the design can ensure the stability of diameter and roundness when producing the pipe with thick wall.

Special design vacuum sizing tank can ensure the stability of size and roundness.Speed controllers are used in extruder,haul-off to offer stability and precision.
The whole line adopts PLC control system and large liquid crystal screen,which makes the operation very convenient.The line can be equipped with another extruder used for extruding the mark line.

Procedure of pipe production:
Raw material+Color master batch---Vacuum Loader---Hopper Dryer---Single Screw Extruder---Color line Co extruder---Vacuum calibration Tank---Water Cooling Tank---Words Printer---Haul off---Cutting machine---Stacker/Winding machine.





Main Parameter: Model Pipe Diameter Range(ID) Extruder Max Capacity(kg/h) Power(kw) PE63 20mm-63mm SJ60/33 150 160 PE110 20mm-110mm SJ60/33 150 160 PE160 50mm-160mm SJ75/33 350 235 PE250 75mm-250mm SJ75/33 350 255 PE315 90mm-315mm SJ75/33 350 270 PE450 160mm-450mm SJ90/33 550 320 PE630 315mm-630mm SJ120-33 850 570 PE800 400mm-800mm SJ120/33 850 608 PE1000 630mm-1000mm SJ150/33 1300 750 PE1200 710mm-1200mm SJ150/33 1300 800
