Matrxi Tech Multiblade Cutting Diamond Segment

Name: Matrxi Tech Multiblade Cutting Diamond Segment
Brand: china-crystals.com
SKU: 742969865
Availability: InStock
Rating: 4.8 (37 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	SUDS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Diamond
Color:	Yellow, Silver, Grey
Bond:	Soft to Hard Bond
Support:	OEM
Usage:	Stone Cutting
Manufacturing Arts:	Sinter
Kind:	Stone Sawing Machine
Graininess:	35#-60#
Thickness:	8.4/9.4
Shape:	Triangle
Specification:	1600mm
Brand:	Suniver
Saw Blade External Diameter:	1600mm

Product Description

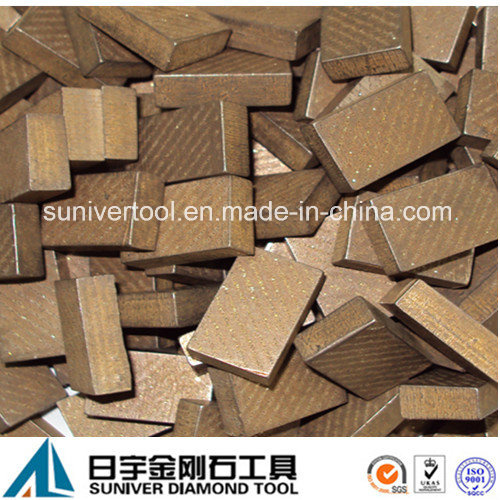

ITEM NAME:DIAMOND SEGMENT
Usage: Stone Cutting
Saw Blade Diameter: As equest.
Brand: SUNIVER
Application:Granite; Marble; Sandstone; Limestone.
Machine: Bridge saw, stone saw, multi-saw
Steel Core Thickness(Mm):2.2mm-10.0mm
Material:Diamond, alloy powder
Support: OEM
Use for:Wet
Export Area:Global
Welding Method:High-Frequency

Product features:

1. Cutting granite in high speed without chipping.
2. Long cutting life and stable performance.
3. Segment is very sharp, high efficiency.
4. Through the validation tested scientific formula.
5. Advanced production process for sintering.
6. Using high quality raw materials, imported cobalt powder and nickel powder, and high-quality diamond single crystals.
7. Strict product quality inspection processes.

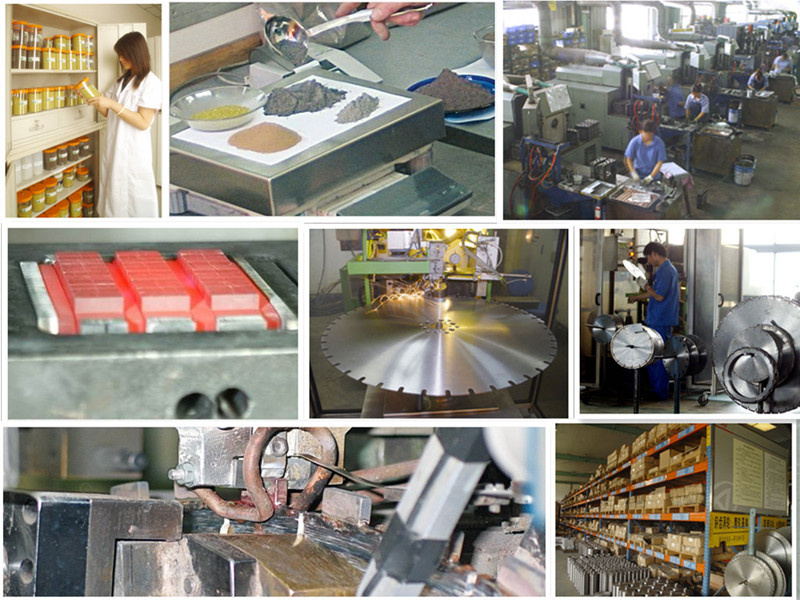

Production:

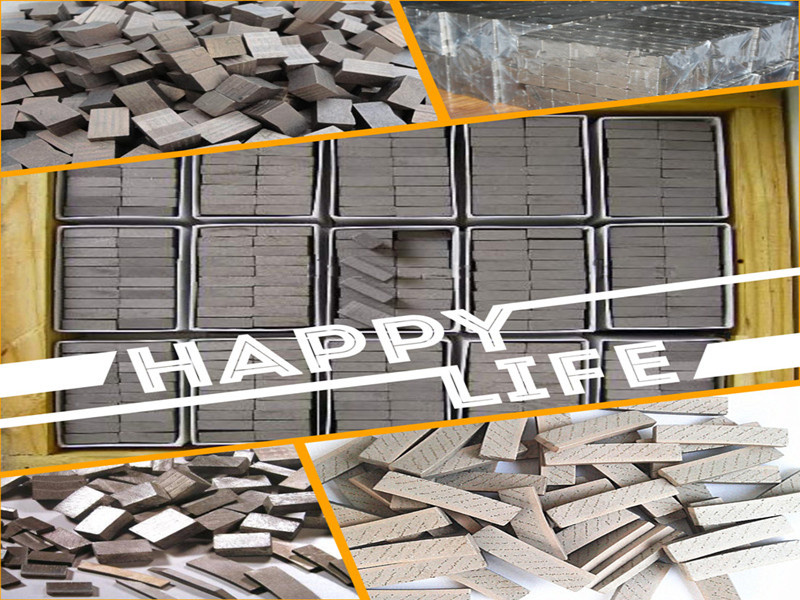

Packing:

Shipping:

Diamond segments					UNIT: mm
Item Numder	Diameter	Segment Dimension L X W X H	Core Thickness	Segment Number	Application
	250	40 x 2.5 x 10	1.8/2.0	18	For trimming and Slabbing Granite
	300	40 x 3.0 x 10/15	1.8/2.2/2.4	21
	350	40 x 3.0 x 10/15	1.8/2.2/2.4	24
	400	40 x 3.6 x 10/15	2.2/2.6/2.8	28
	450	40 x 4.0 x 10/15	2.5/2.8/3.3	32
	500	40 x 4.2 x 10/15	3.0/3.3	36
	550	40 x 4.2 x 10/15	2.8/3.5
	600	40 x 4.6 x 10/15	2.8/3.5	42
	700	40 x 5.0 x 10/15	3.6/4.0
	800	40 x 6.0 x 10/15	4.5	50

(HIGH-FREQUENCY WELDED, suitable for cutting granite)

					UNIT: mm
Item Numder	Diameter	Segment Dimension L X W X H	Core Thickness	Segment Number	Application
	900	24 x 6.6/6.2 x 10/15	5.0	64	For Cutting Granite Block
	1000	24 x 7.4/6.8 x 10/12/15	5.0	70/72
	1100	24 x 7.4/6.8 x 10/12/15	5.5	74
	1200	24 x 7.5/7.0 x 10/12/15	5.5	80
	1300	24 x 7.6/7.0 x 10/12/15	6.0	88
	1350	25 x 8.4/7.7 x 12/15/20	6.0	88
	1400	24 x 9.0/8.4 x 10/12/15	6.5	96
	1600	24 x 9.2/8.6 x 12/15/20	6.5	104/108
	1800	24 x 9.5/9.0 x 12/15/20	7.0	120
	2000	24 x 10.6/9.6 x 15/20	8.0	128
	2200	24 x 11.5/10.5 x 15/20	8.5	132/136
	2500	24 x 12/11.5/11 x 20	9.5	140
	2700	24 x 12/11.5/11 x 20	10	140
	3000	24 x 12.5/12/11.5 x 20	10	160
	3500	24 x 13/12.3/11.1 x 20	10	180

QUANZHOU WANTZEL DIAMOND TOOL Co., Ltd is a professional diamond tool supplier which produce professional quality diamond tools for the stone industry and construction industry. We have long-standing relationships with a lot of professional users overseas and continually develop and source the best products with reasonable prices according to different requests.

Our Products:

1. Resin polishing pads and Metal grinding shoes for concrete floor.

2. Laser weld saw blades for reinforced concrete, asphalt etc.

1) For hand held saw.

2) For walk behind saw.

3) For wall saw.

3. Laser weld core drills fro reinforced concrete.

4. Diamond saw blades for cutting stones.

5. Diamond core drills fro stones.

6. Diamond wires for stone quarry, stone block, reinforced concrete.

7. Diamond grinding/polishing tools for stone.

8. Diamond segments for re-tip.

Our Philosophy:

1) Customer-Oriented

2) Professionally meeting your needs

3) Competence due to long-time experience

4) Long-term customer relationships

Our Promise:

The best quality is guaranteed for customer satisfaction.
