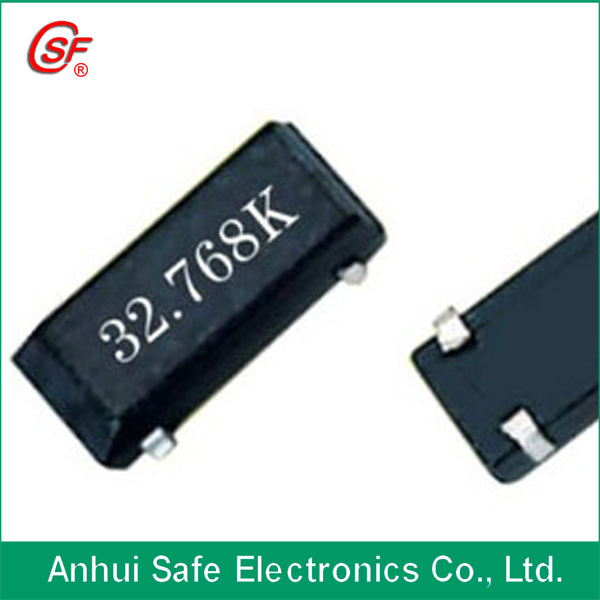

MC306 Type SMD Crystal Resonator 32.768KHz
Features:
SMD type, Source of Clock signal, Suitable for small telecommunication equipment
Specification:
Frequency: 32.768kHz
Size: SMD 8.0x3.8x2.5mm
Frequency Tolerance: +/-10ppm, +/-20ppm
Load capacitance: 12.5pf typical
Operating temp. Range: -40C - +85C
Storage temp. Range: -55C - +125C
Drive level: 1.0uW
Shunt Capacitance: 2.0pf
Motional capacitance: 4.0pf max
Insulation resistance: 500MO min at DC100V
Aging level: +/-5.0ppm/year Max at 25C
Packing: Tape and Reel Package, 3000PCS per reel
| Normal Frequency | F | 32.768Khz |
| Frequency Tolerance at 25ºC | Δf/f | ±20ppm |
| Frequency Stability in Operating Temperature | Δf/f | See frequency VS temp curve |
| Load Capacitance | CL | 12.5pF Typical |
| Operating Temp. Range | Topr | -40ºC ~ +85ºC |
| Storage Temp. Range | Tstg | -55ºC ~ +125ºC |
| Resistance of series resonance | Rs | 50KΩ |
| Drive Level | PWR | 1.0μW |
| Shunt Capacitance | C0 | 2.0pF |
| Motional Capacitance | C1 | 4.0fF Max |
| Insulation Resistance | IR | 500MΩ Min at DC 100V |
| Aging Level | fa | ±5.0ppm/yr Max @25ºC |
| Packing |
| Tape and Reel Package
3000pcs per reel
10000pcs per export carton
|
