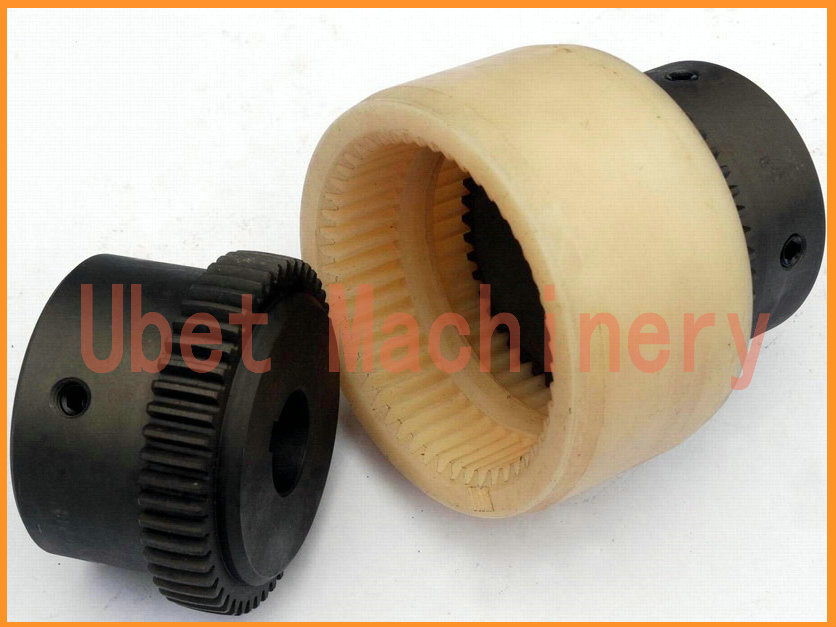

Nylon Ring Gear Coupling (Bowex type)
| Price: |
US $ 0.5-25/Piece |
| Trade Terms: |
FOB,CFR,FCA |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
M14, M19, M24, M28, M32, M38, M42, M48, M55, M65 |
| Markets: |
North America,South America,Oceania,Eastern Asia,Western Europe |
| Bowex 19, 24, 28, 32: |
Black Oxidizing Steel S45c |
| Nylon Sleeve And Steel Conbined: |
No Requirement of Lubrication |
| Excellent Electrical Insulation: |
Vertically or Horizontally Assembled |
Product Description
Nylon Sleeve Gear Coupling
Curved-tooth Coupling / Coupling BoWex
Ubet Nylon Sleeve Couplings flexible shaft connections for a positive torque transmission and specifically suitable to compensate for axial, radial and angular shaft misalignment.
Ubet Nylon Sleeve Couplings are compact and require no lubrication. They are adapted to many applications including vertical and blind installations. They operate over a wide range of temperature at speed up to 5,000 RPM. This type of coupling is widely used in application such as Motor, Generator and Pump etc.
Features:
l Nylon-steel combined, maintenance free
l Compensation for axial, radial and angular misalignment
l Convenient axial plugging assembly
l Without bolts, pins, flanges to affect balance or safety
l No requirement of lubrication
l Excellent electrical insulation
l Can be vertically or horizontally assembled
l Tolerance of finished bore in appliance with ISOH7 | l tem No. | l Item No. | l Finished bore range | l Outside Diameter | l Nominal Torque Nm |
| l UTNL-14 | l UTNL-14-L | l 6-14 | l 40 | l 10 |
| l UTNL-19 | l UTNL-19-L | l 8-19 | l 48 | l 16 |
| l UTNL-24 | l UTNL-24-L | l 10-24 | l 52 | l 20 |
| l UTNL-28 | l UTNL-28-L | l 10-28 | l 66 | l 45 |
| l UTNL-32 | l UTNL-32-L | l 12-32 | l 76 | l 60 |
| l UTNL-38 | l UTNL-38-L | l 14-38 | l 83 | l 80 |
| l UTNL-42 | l UTNL-42-L | l 20-42 | l 95 | l 100 |
| l UTNL-48 | l UTNL-48-L | l 20-48 | l 114 | l 140 |
| l UTNL-55 | l UTNL-55-L | l 25-55 | l 132 | l 240 |
| l UTNL-65 | l UTNL-65-L | l 25-65 | l 175 | l 380 |
Ubet Machinery is a global supplier for Mechanical Power Transmission Parts. It is aimed to provide best quality products at best price. With many years of experience in this industry, it can offer customers practical value.
It focuses mainly on Keyless Locking Devices, Timing Belt Pulleys, Nylon Sleeve Couplings/ Curved-tooth Gear Couplings, Jaw Couplings, Gears and other parts. It boasts a team with rich experience in this industry, focusing on global market. Customers are mostly from Europ, North America, South America, Southeast Asia and other regions.
Hight standard quality, delivery punctuality, competitive price and reliability are it's core value for customer. Any of your inquires or comments will highly be appreciated.
