| Price: | US $ 9-11/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |

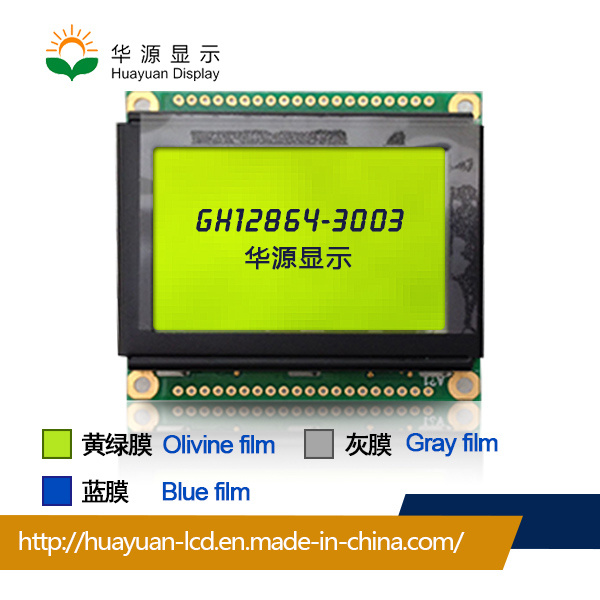

| Prod Model: | GH12864-3003 |
|---|---|
| Construction: | COB |
| Operating Voltage(Vdd): | 3.3V,5V |
| Backlight Voltage(Vbl): | 3.3V,5V |
| Operating Temperature(Degree Celsius): | -20ºC~70ºC |
| Storage Temperature(Degree Celsius): | -30ºC~80ºC |
| Viewing Direction: | 6 O’clock |
| DOT Matrix: | 128*64 |
| Viewing Area: | 43.5*29.0 |
| Active Area: | 40.92*26.92 |
| Outline Dimension: | 54.0*50.0*9.0 |
| Usage: | Small-sized LCM |
| Digital LCD Module Type: | Counting Module |
| Type: | Graphic |
| Response Time: | 10ms |
| Display Technology: | STN |
| DOT-Matrix Graphic LCD Module Type: | Row/Column-Driven |
| LCD Drive Mode: | Static Drive LCD Module |
| Customized: | Non-Customized |
| Touch Screen Type: | No Touch |
| Viewing Angle: | 90 Degree |
| Model | GH12864-3003 |
| Construction | COB |
| Display Type | STN |
| Operating Voltage(VDD) | 3.3V,5V |
| Backlight Voltage(VBL) | 3.3V,5V |
| Operating Temperature(degree Celsius) | -20ºC~70ºC |
| Storage Temperature(degree Celsius) | -30ºC~80ºC |
| Viewing Direction | 6 o'clock |
| Dot Matrix | 128*64 |
| Viewing Area | 43.5*29.0 |
| Active Area | 40.92*26.92 |
| Outline Dimension | 54.0*50.0*9.0 |
| Backlight | LED,White |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| NC | NC | NC | NC | VLCD | V+ | V- | B- | B+ | VSS |
| 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
| VDD | BM1 | BM0 | D7 | D6 | D5 | D4 | D3 | D2 | D1 |
| 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 |
| D0 | WR1 | WR0 | CD | RST | CS0 | NC | NC | NC | NC |
| Q1:Are you a factory or trading company? | A1: We are manufacturer. Please refer to our company show |
| Q2:Where is your factory located?How can I visit there? | A2:Our factory is located in Hunan,China.Welcome to visit our factory. We could pick you up in Changsha Huanghua Airport, or High-speed train Zhuzhou Xi station. |
| Q3:How can I get some samples? | A3:We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity. And you will win the 1-3% discount. |
| Q4:How does your factory do regarding quality control? | A4:Quality is the priority. Our factory has gained ISO9001 RoHS SGS certification. |
| Cooperate Supplier | Tianma, Innolux, Sumsung, Varitronix, CPT, BOE,HSD,Chi mei |
| Company development plan | Our company prepared attend electronics show in Munich, Germany, 2016 |
| Packaging & Delivery | Packaging Details: in an anti-statics bag packed in carton or according to the customer's requirement Delivery Detail: 5-7 days for sample and 25-30 days for mass production |
| 1. Chracter lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4 , etc.) |
| 2. Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240 , etc.) |
| 3.TFT LCD (1.44", 1.77", 2", 2.2",2.4", 2.8", 3",3.2", 3.5", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7".10.1", 10.2", 10.4",17" , etc. |
| 4. TN/STN/HTN/VA segment custom lcd ,LED backlight panel |
| All kinds of LCD Module can customize according to customer`s requirement. |
