Vertical Welded Insulated Liquefied Natural Gas Cylinder 175L-1.37MPa

Name: Vertical Welded Insulated Liquefied Natural Gas Cylinder 175L-1.37MPa
Brand: china-crystals.com
SKU: 733455842
Availability: InStock
Rating: 4.7 (42 reviews)

Price:	US $ 1250-1600/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	DPL450-175-1.37
Empty Vessel Net Weight:	116 Kg
Pressure Level:	Low Pressure (',0.1MPa≤p<1.6MPa)
Condition:	New
Storage Medium:	LNG

Product Description

Vertical Cryogenic Liquefied Gas Cylinder

Product Description

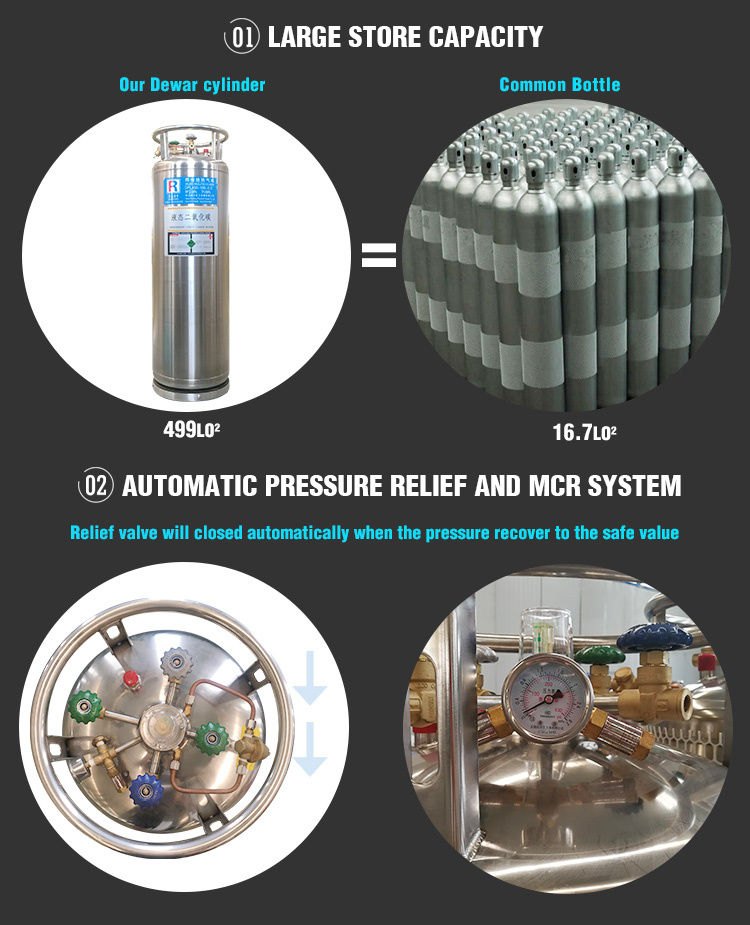

Vertical liquid cylinder is multi-layer heat insulating removable cryogenic liquid vessel, to store, transport the liquefied oxygen, argon, nitrogen, carbon dioxide. It can be applied to the plant of gas supply, smaller pipeline concentrates gas supply.

Vacuum Flask (Vertical)
ITEM	Low Pressure MP Series
Model	DPL-175-1.37					DPL-195-1.37				DPL-210-1.37
Dimension(O. D. × Height )mm	φ 505×1551					φ 505×1676				φ 505×1761
Nominal Volume L	175					195				210
Effective Volume L	160					180				195
Service Pressure MPa	1.37					1.37				1.37
Empty Vessel Weight (Kg)	116					125				142
Setting Pressure of Safety Device MPa	Filling LNG, 1 class safety valve setting pressure :1.59, 2 class valve pressure: 2.41 Filling LO₂ /LN₂ /LAr, safety valve setting pressure : 1.59, Burst pressure of bursting disc: 2.4
Filling Medium	LO₂	LN₂	LAr	LNG		LO₂	LN₂	LAr	LNG	LO₂	LN₂	LAr	LNG
Max. Filling Weight Kg	170	120	208	70		190	134	232	78	205	145	250	84
Standard Volume Nm³	119	96	116	97		133	107	130	109	143	116	140	117
Normal Evaporation Rate %/d	LN₂ ≤2.1					LN₂ ≤2.02				LN₂ ≤1.99
Liquid Level Gauge	Float					Float				Float
Surface Treatment	Polish					Polish				Polish

ITEM	HP series
Model	DPL-175-2.3					DPL-195-2.3				DPL-210-2.3
Dimension(O.D. × Height ) mm	φ 505×1551					φ 505×1676				φ 505×1761
Nominal Volume L	175					195				210
Effective Volume L	160					180				195
Service Pressure Mpa	2.3					2.3				2.3
Empty Vessel Weight (Kg)	133					145				160
Setting Pressure of Safety Device Mpa	Filling LNG, 1 class safety valve setting pressure :2.41, 2 class valve pressure: 3.45 Filling LO₂/LN₂/LAr, safety valve setting pressure :2.41, Burst pressure of bursting disc: 3.62
Filling Medium	LO₂	LN₂	LAr	LNG	LCO₂	LO₂	LN₂	LNG	LCO₂	LO₂	LN₂	LAr	LNG
Max. Filling Weight Kg	170	120	208	70	164	190	134	78	183	205	145	250	84
Standard Volume Nm³	119	96	116	97	83	133	107	109	93	143	116	140	117
Normal Evaporation Rate %/d	LN₂ ≤2.1					LN₂ ≤2.02				LN₂ ≤1.99
Liquid Level Gauge	Float					Float				Float
Surface Treatment	Polish					Polish				Polish

ITEM	VP series
Model	DPL-175-2.88					DPL-195-2.88				DPL-210-2.88
Dimension(O.D. × Height ) mm	φ 505×1551					φ 505×1676				φ 505×1761
Nominal Volume L	175					195				210
Effective Volume L	160					180				195
Service Pressure Mpa	2.88					2.88				2.88
Empty Vessel Weight (Kg)	158					169				169
Setting Pressure of Safety Device Mpa	Safety valve setting pressure :3.45 Burst pressure of bursting disc: 5.17
Filling Medium	LO₂	LN₂	LAr	LCO₂		LO₂	LN₂	LAr	LCO₂	LO₂	LN₂	LAr	LCO₂
Max. Filling Weight Kg	170	120	208	164		190	134	232	183	205	145	250	197
Standard Volume Nm³	119	96	116	83		133	107	130	93	143	116	140	100
Normal Evaporation Rate %/d	LN₂≤2.1					LN₂≤2.02				LN₂≤1.99
Liquid Level Gauge	Float					Float				Float
Surface Treatment	Polish					Polish				Polish

Show Details

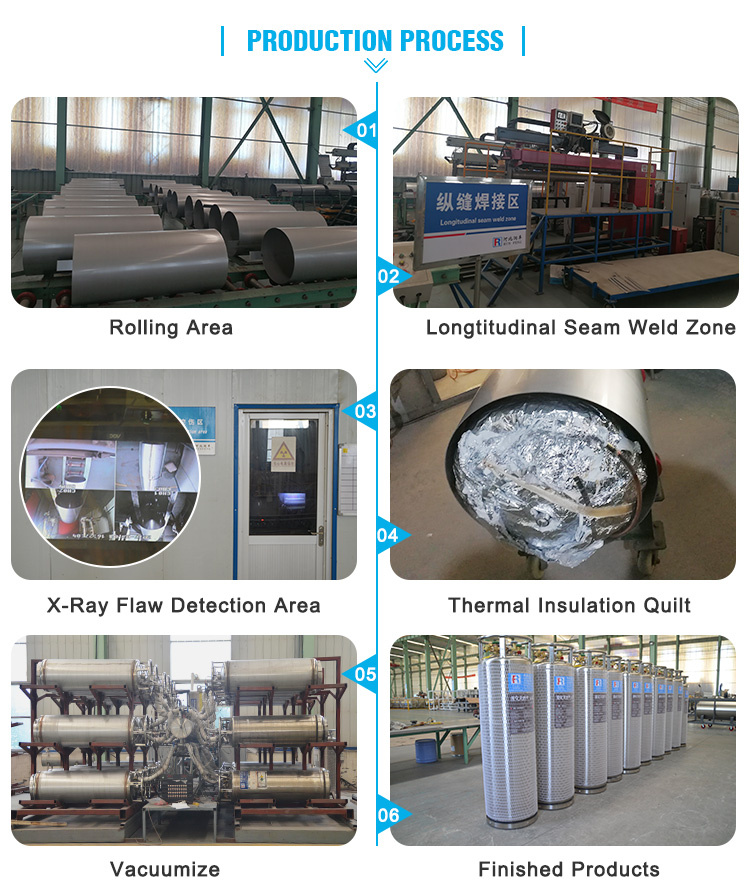

Production Process

Product Application

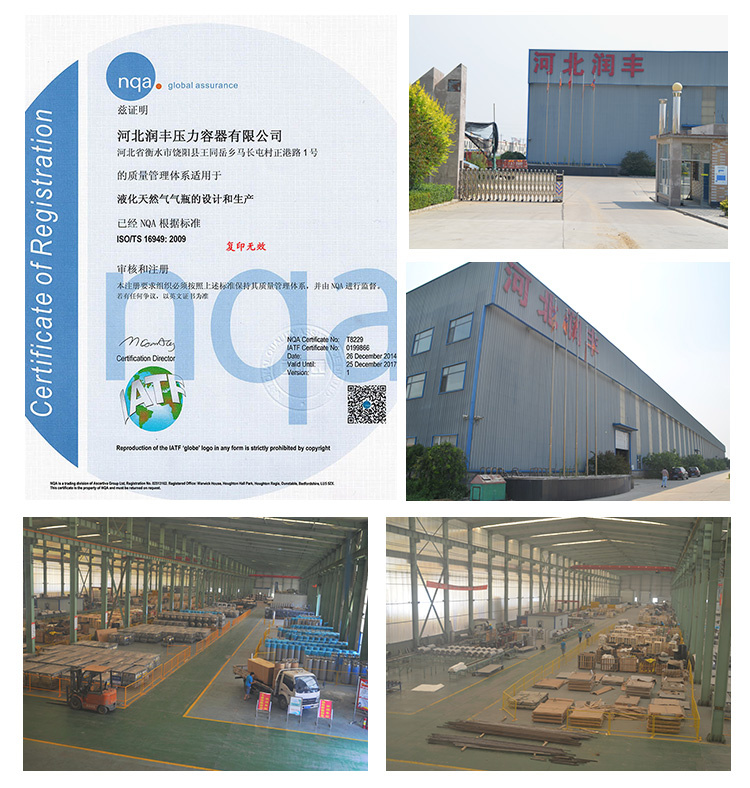

Company Information

Our focus is cryogenic pressure vessels, dewar, LNG station equipments, industry gas equipment system products, Runfeng is famous for design and manufacture of highly engineered cryogenic equipment used from the beginning to the end in the liquid gas supply chain.our domestic operation located in china and our products are most welcomed in Russia and Southeast Asia countries. Our tagline is become your lifelong trustworthy and honest supplier.

FAQ
1. Pressure in the container is low.
Recommended Activity: 1) Refer to the instruction manual and use according to
the recommended maximum gas withdrawal rate and
supercharging capacity.
2) Open pressure building regulator or pressure building valve.
2. The cylinder is filled but no pressure display
Recommended Activity: 1) Change the pressure gauge
2) Change the rupture disk
3) Repair or replace the valve
3. The bottom of container covered with spiral frost
Recommended Activity: It is normal.
4. The top of container covered with frost
Recommended Activity: 1) Check the leakage of the liquid level gauge connection, replace
the seal washer, re-install and do air tight test after the pressure
is empty.
2) Tighten joint and do air tight test.
