| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
| Prod Model: | FLC1490 |
|---|---|
| Working Area: | 1500*1200mm |
| Delivery Time: | in 7 Days After Receipt Deposit |

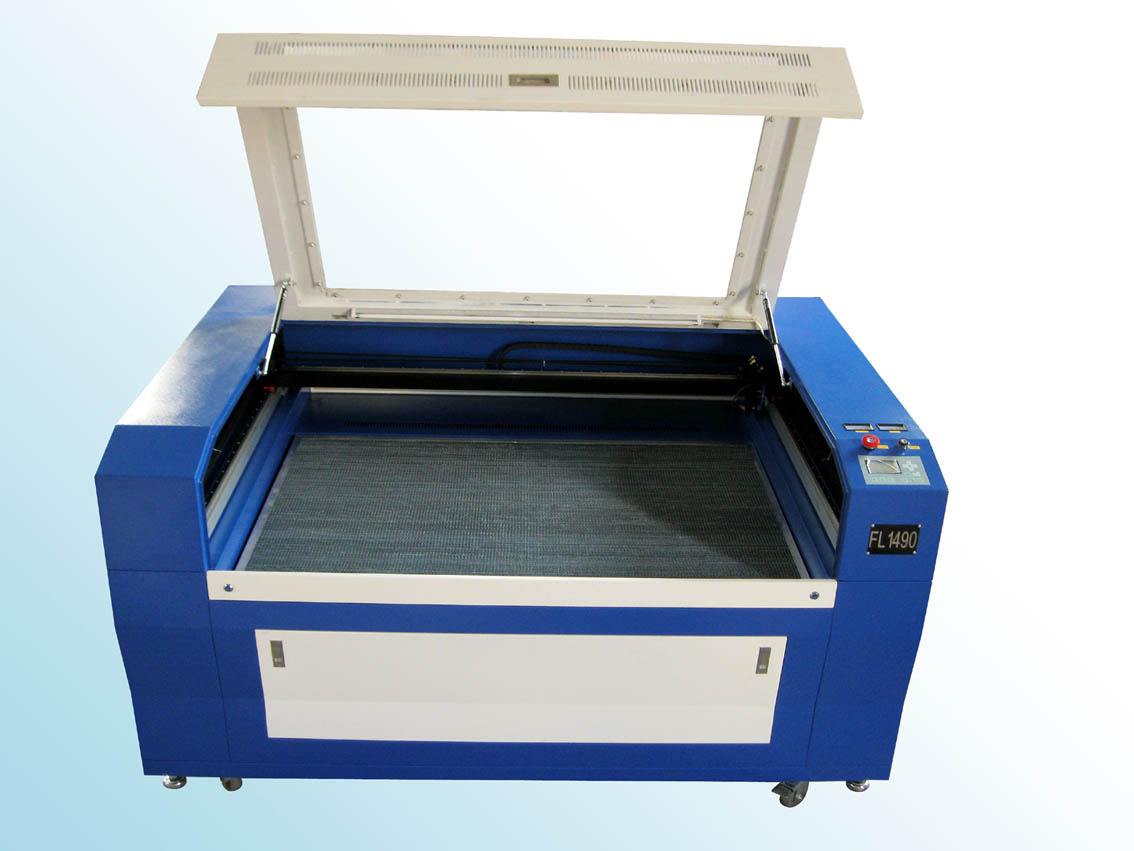

CNC Fbric wood glass laser cutting machine FLC1490
Features:
Equipped with imported dual linear guide,so machine can move stably and cut the adge smoothly. Adopt three-phase motors and drivers,belt can move in fast cutting speed and high precision. With front and rear openings, Materials can extend through machine to allow for a larger work product.
| Model | FLC1490 |
| Laser-type | 10.6um CO2 glass laser tube w/ water-cooling |
| Laser power | 80w-180w |
| Working area | 1400*900mm |
| Max Engraving speed: | 0-64, 000mm/min |
| Max cutting speed | 0-30, 000mm/min |
| Laser output control | 1-100% software setting |
| Location precision | Less than 0.01mm |
| Highest scanning precision | 2500DPI |
| Operating temperature | 0 - 45 |
| Operating humidity | 5- 95% non-condensing |
| Minimum shaping character | English 1.0 x 1.0mm |
| Graphic format supported | HPGL, JPEG, BMP, PLT, DST, DXF, and AI ... |
| Driving system | Stepper(Optional: Servo) |
| Cooling mode | Water-cooling and protection system |
| Auxiliary equipments | Exhaust-fans, air-exhaust pipe, air pump, chiller |
| Controller | DSP |
| Compatible Software | CorelDraw, AutoCAD, Photoshop, TAJIMA |
| Slope Engraving | Can be easily designed within the "Grade Engrave" function. |
| Color separation | Uses color property to set function, speed, and laser power |
Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.
Applicable Materials:
Double color boards, acrylic, glass, wood planks, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...
Samples Show:
