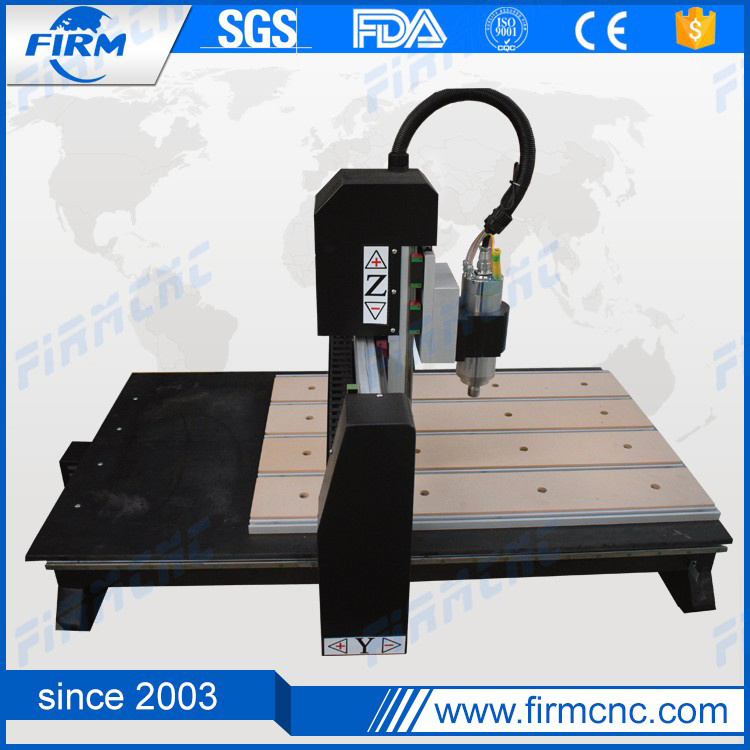

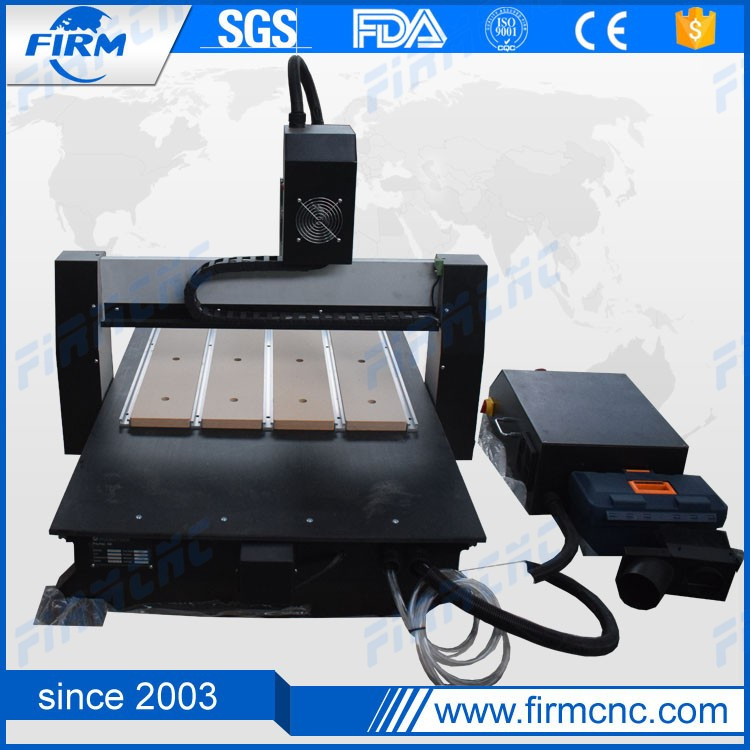

Woodworking CNC Router Mini 6090 CNC Router
| Price: |
US $ 1900-2500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
FM6090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spindle Power: |
1.5kw |
| Spindle Rotate(Rpm): |
24000 |
| Motor Driver: |
Stepper Motor |
| Table Surface: |
T-Slot Table |
| Frame: |
Cast Iron |
| Max. Working Speed: |
25000mm/Min |
| Command Language: |
G Code |
| Control System: |
DSP Control System |
| Table: |
Movable |
| Computer Interface: |
USB |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
FDA |
| Color: |
Blue or as Required |
Product Description
Woodworking CNC Router Mini 6090 CNC RouterAdvantages:
1.Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.High precision
5.High sensitivity
6.High efficiency
7. Warranty: 2 years
8.Door-to-door technical service and 24 hours technology online support
Technical Parameters:| Brand name | FIRM |
| Model | FM-6090 | FM-6040 |
| Working Area | 600*900*150mm | 600*400*150mm |
| Transmission | X/Y/Z Taiwan ball screw | X/Y/Z Taiwan ball screw |
| Table suface | T-slot | T-slot |
| Spindle power | 1.5kw water cooling spindle | 1.5kw water cooling spindle |
| Spindle speed | 24000RPM | 24000RPM |
| Max speed | 12m/min | 12m/min |
| Max working speed | 8m/min | 8m/min |
| Max feeling height | 100mm | 100mm |
| Repositioning accracy | ±0.03mm | ±0.03mm |
| motor | stepper motor 450A | stepper motor 450A |
| Working voltage | AC220V, 60HZ, 1Ph | AC220V, 60HZ, 1Ph |
| Command | G code | G code |
| Net weight | 55KG | 45KG |
| Gross weight | 80KG | 60KG |
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,
badges,decorative gift,embossed
Application Industry and Materials:
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on
a variety of exquisite patterns and text engraving.
Our service:
1. Free samples(I can help you process samples for free.)
2.Warranty:2 years
3.English software, user manual and operation CD videos.
4.Door-to-door technical service and 24 hours technology online support with Skype,
WhatsApp,QQ or by mail and phone.
5.International quality certificate:CE,ISO9001:2008,Electrical components are UL and CE certificated.
6.Every cnc router machine must be tested for 18 hours before delivery , so all of them are absolutelyqualified.
FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
