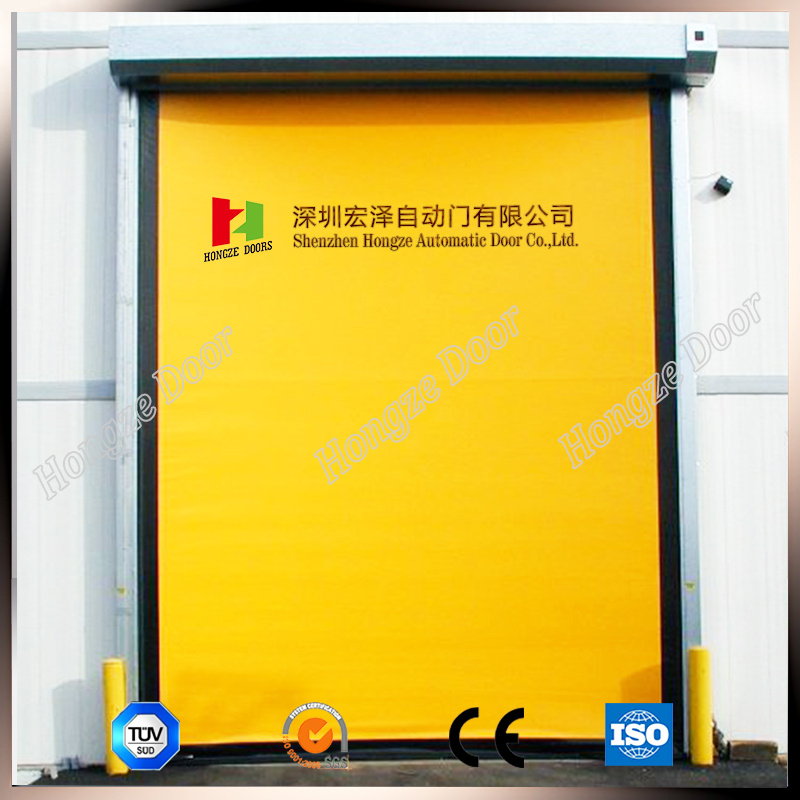

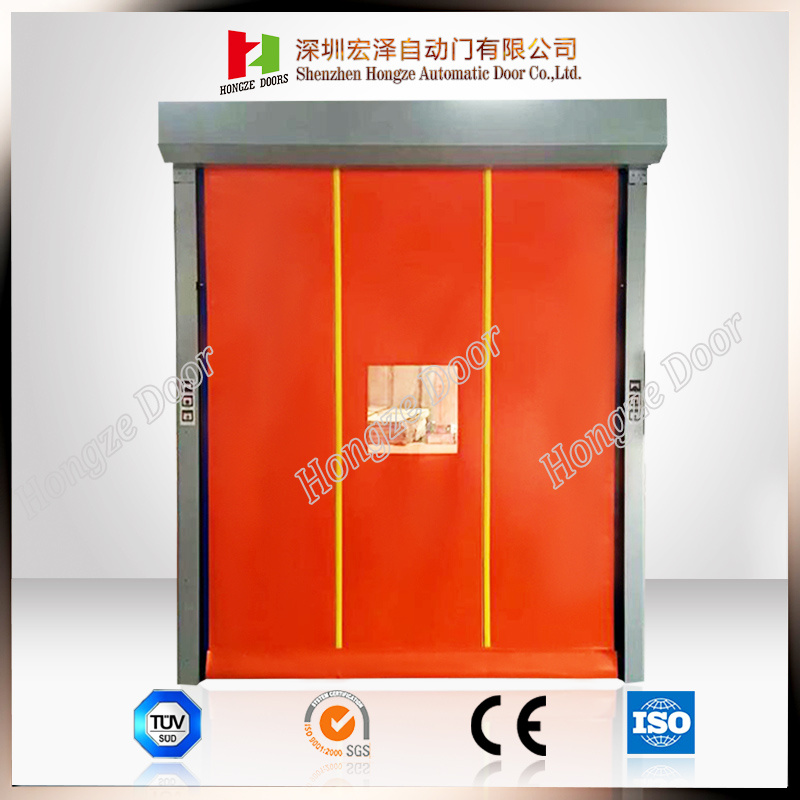

Automatic High Speed Interior Recovery Door/Fast Speed PVC Roller Shutter Door
Zippered Quick Door/ fast shutter auto door

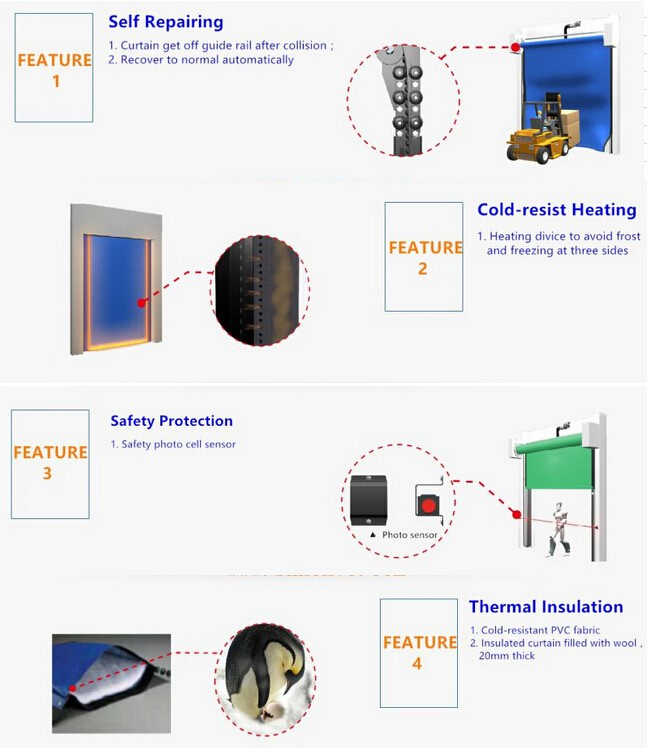

Advantage of Self-repairing door:
1.Guide Rail Zipper Designed Self-repairing function: to avoid waste time to fix it.
2.Soft: the curtain is light.
3.Safety: photo cell and airbag to guarantee the security.
Drive system |
Servo motor(380V/220V 50Hz 0.75KW,1.5KW.)
Our own brand "Hofic" (380V/220V 50Hz 0.75KW,1.5KW,2.2KW) |
Control panel |
Servo/Holip |
Opening&close speed |
1-1.5meters/second |
Guide rail material | Carbon Steel Plate |
Standard Motor Position |
Left or Right |
Installation Base |
Concrete,Panel, Brick,Steel Structure. |
Installation Space |
≥450mm above the door
≥150mm for motor side
≥130mm for non-motor side
|
Using Area |
food, chemical, textile, refrigeration, electronics, prin |
Material Selection:1.Safety Device:Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.
2.Curtain:France high-density polyester fiber and the surface coating processing, thickness 0.8-1.5MM
3.Wind resistant:The Aluminium alloy Reinforce Girder to increase wind resistant effect.
4.Curtain replacement function:Aluminium alloy Reinforce Girder is loaded between 2 pieces Curtain, can be replaced
easily if any curtain broken , save your cost.
5.Transparent window:1.2MM thickness transparent PVC window, size and location is Customized
6.Seal:Seal brush are Installed inside the guides, and the special bottom design .
7.Limiting Switch:Mechanical limiting switch, easily and exactly.
8.Emergency STOP :With emergency stop button on control panel, can stop easily byHand once disconnect or accident
9.Pyament item:50% before production, and the other 50% before shipment.
Product Description1.Technical factors: Hongze introduces advanced technology and equipment from France and uses imported motors and accessories for
this industrial clean room industrial high speed doors.
2.Main features: High speed doors stable, fast, safe, sealed, dust-proof and soundproof, which can prevent air convection between
indoor and outdoor and improve the workshop environment and health.
3.Quanlity Hongze standard industrial high speed doors have a long service life and are the first choice of modern factories,
warehouse and logistics.
Mitsubishi or Schneider controller and SEW/NORD/SEJ motor as well as some other famous brand components
asure you high quanlity high speed doors.
4.Range of use: Our products are widely used in the entrance and exit places of those fields, such as food, electronics, cigarettes,
adhesive, textile, printing, packaging, cold storage environment, automobile assembly, chemicals, pharmaceuticals,
machinery, logistics, plastic, cotton textile, automobile factories, shopping malls, storage, etc., and we specifically
produce fast doors for different kinds of customers with our unique functional design.
5.Service: All Hongze high speed doors are customized. All what you should do is leting us know your requirements.
Company Information
Hongze Auotomatic Co.,ltd. is a high-tech company that engages in the development of world-class advanced
automatic doors. Our main products include quick rolling door, industrial accumulation door, industrial rolling door,
PVC rolling door, rapid rolling door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic
vertical hinged door, medical automatic door, stainless steel automatic door, electric folding gate, crystal rolling door,
electric roller shutter of various materials, and parking lot series.
Packaging
F A Q1. What's the payment details?
Deposit before production, and balance before shipment.
2. What's the delivery time?
For common order, about 7 days only.
3. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.When the product quality appear.
4. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
5. What's the MOQ?
We accept 1 set as sample order.
6. How about the package?
Plywood case or Cardboard, suitable for sea freight or air freight, as your request.
Shenzhen Hongze Automatic Door Co., Ltd. is a high-tech company that engages in the development of world-class advanced automatic doors. Our main products include quick rolling door, industrial accumulation door, industrial rolling door, PVC rolling door, rapid rolling door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic vertical hinged door, medical automatic door, stainless steel automatic door, electric folding gate, crystal rolling door, electric roller shutter of various materials, and parking lot series.
Our company introduces and absorbs the state-of-the-art technologies of the automatic door industry of the world whilst accumulating rich experience in design, production and engineering installation. The overall appearance, quality, performance and service life of our products are comparable to world-famous brands, whereas our prices are much lower than those of similar imports. All these are aimed at offering our customers excellent, low-priced products in the real sense.
Hongze has been persistently offering users all-round, diversified service of wide level. Meanwhile, we have been elaborately bringing about a rich corporate culture to serve as a faithful, honest and harmonious tie among enterprise, customers and employees.
Adhering to the principle of "proceeding from details and trivial matters", we try to embody our meticulous effort in all the links and shall spare no effort in bringing about the best products and perfect service.
Over the years, we have been guided by the principle and concept of "guarantee by brand, breakthrough by technology, supported by service". In the future, we shall do our utmost to provide our customers with related engineering consultation, scheme design, technical guidance, installation and debugging, after-sales repair and other service.
