Company informationTaian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 5,000sqm workshops and offices, we have more than 15 years experiences in cnc machine research and production.Our machines have been exported more than 40 countries.we welcome all customers and friends to come to our company!
Our guarantee1.We are cnc machine manufacrurer, can provid the high quality, competitive price and good after-sale service.
2.We have our own technical team, can provide the customized solutions according to your request.
3.We go the full 24-hour performance and accuracy test before shipment.
4.Warranty is one year; we would offer the parts. Quality problem is free of charge
during this period.
5.One year guarantee for whole machine expect of CNC system, which guarantee is
three years
6. 24 hours technical support e-mail.
7. User manual and detailed video.

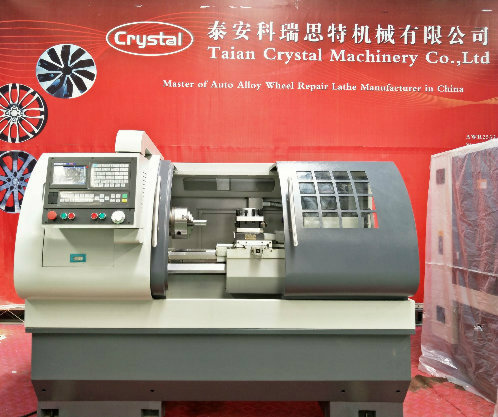

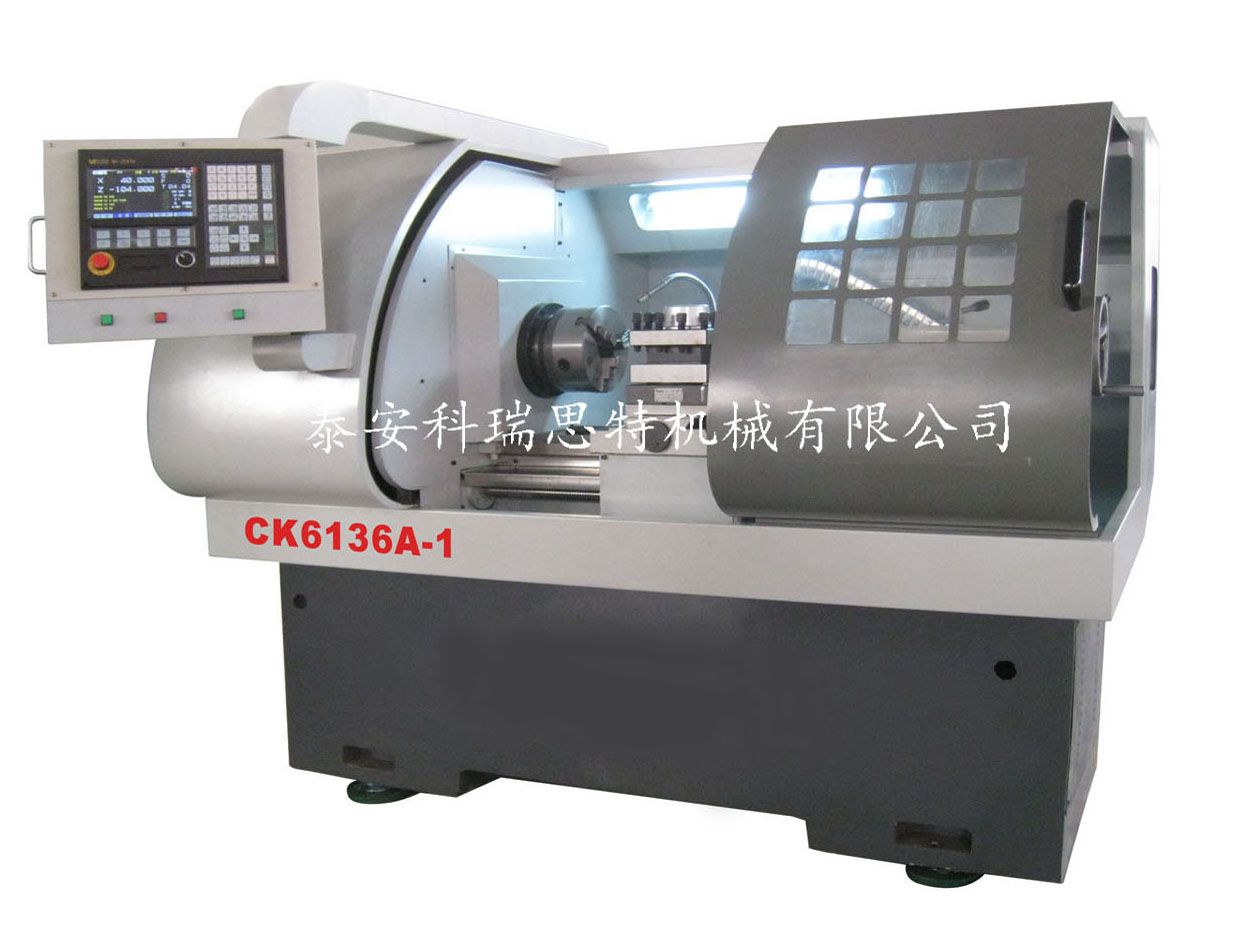

Standard configuration1.System:GSK928TD-L, servo motor and drive
2.Manual 3-jaw chuck, 4-station electric tool post.
3.Manual tailstock, Semi-Rugged
4.Cooling system;Lighten system;Automatic lubrication system
Optional configuration1.Optional brands of CNC systems
SIEMENS,FANUC
2.Optional types of the tool post
Horizontal Six-station, horizontal eight-station
3.Optional types of the workpiece clamping
Hydraulic chuck,pneumatic chuck,spring chuck
4.Optional types of the tailstock
Hydraulic tailstock,pneumatic tailstock
5.Optional patterns of feeding
Automatic feeding(Customized programs alone)
Instructions of other devices1.Structure style of spindle
Independent spindle and frequency control
2.Protective cover and door
Metal plate cover and double protective door
3.Position of CNC system
On the left side, rotation type
4.lighting system
Standard T8 fluorescent lamp
5.Cooling system
Water cooling
6.Lubrication system
Automatic lubrication controlled by microcomputer
7.Brands of motor-driven tool carrier
Hongda and Sanhe
8.Type of cabinet base
Overall cast iron
Specification| Items | Specifications |
| Max. swim over bed) | Φ400mm |
| Max.swim over carriage | Φ230mm |
| Max.length of work piece | 650mm |
| Wedth of the bed | 330mm |
| Size of three-jaw chuck | 200mm |
| Range of spindle speed | 150-2500rpm |
| Spindle bore | Φ60mm |
| Taper of spindle bore | MT6 |
| stations of tool carrier | 4/6/8/ |
| Max.size of tool post | 20*20mm or 25*25mm |
| Min.setting unit of motor | (Z) vertically 0.001mm
(X) horizontally 0.001mm |
| Moving speed of post | (Z) vertically 8 m/min
(X) horizontally 4 m/min |
| Taper of tailstock quill | MT4 |
| Max. range of tailstock quill | 120mm |
| Motor power | 4KW |
| Packing size (mm) length *width*height | 1865 mm*1400 mm*1650mm |
| Net/Gross weight | 1500/1600kg |
Watch the working video of our lathe:
https://youtu.be/ktiY4VxVIVY?list=PLTai_NHPClI3V8-i7tj0gKTrpUEw515Tz
