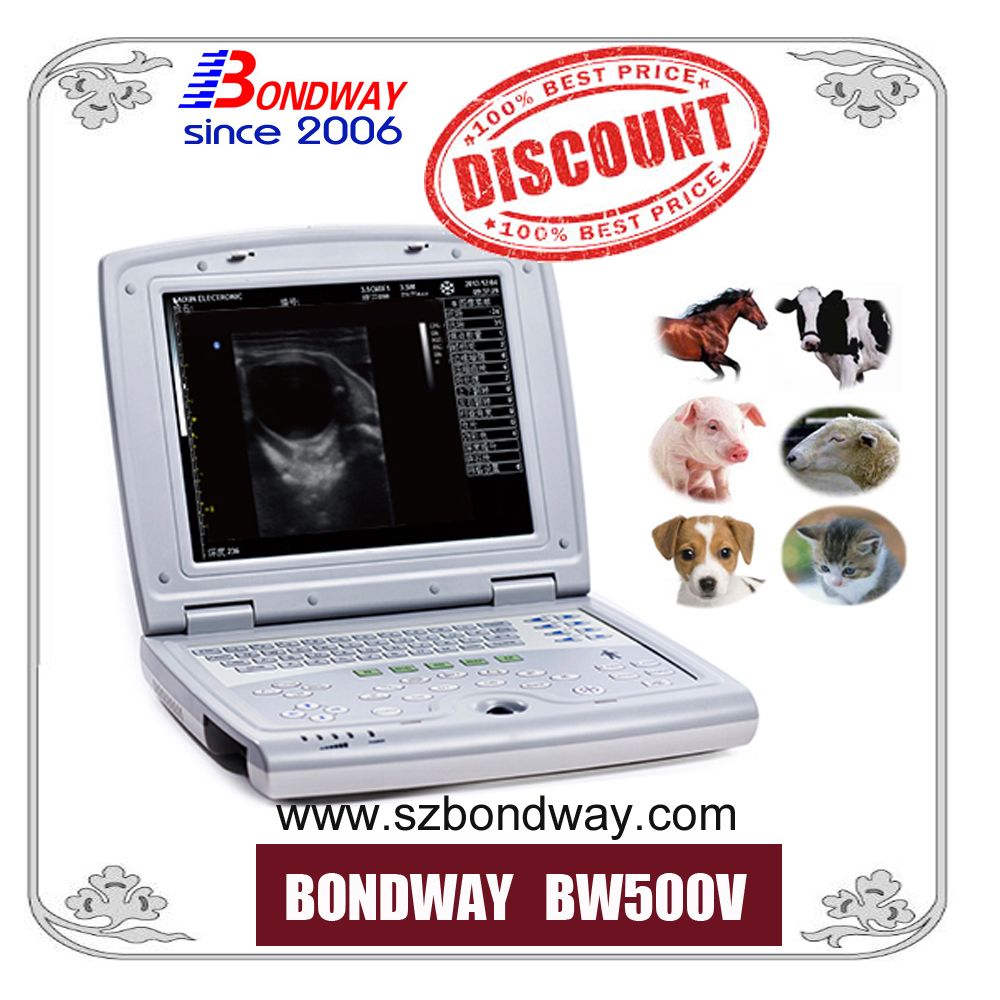

BW500V Digital Laptop Veterinary Ultrasound Scanner is suitable for
imaging equine, Bovine, Swine, and small animal and diagnosis of animal's uteri and fetus conditions. And it also calculates backfat and lean percentage automatically. It's been exported to
over 110 countries since we introduced it to the market in 2007. It proves to be a reliable products and widely accepted worldwide.
Application 1. Equine -Reproduction, Tendon & Abdominal, Cardiac, Breeding, etc.
2. Farm Animal -Reproduction imaging on Bovine, Swine, Small ruminants and other large animals
3. Small animal -Criticare, Abdominal, Cardiac, etc
Key Features1) Smaller-sized and very light for easy carry-on.
2) Rechargeable battery operated and AC power supply.
3) New Rectal Probes. 6.5MHz rectal linear probe(with handle) and 4.0MHz rectal convex probe
4) Psuedo Color System
Technical Specs1. Probe: Electronic convex array, linear array, transrectal and microconvex probe.
2. Gray Scale: 256
3. LCD Display: 10.4" crystal
4. Power Supply: 100-240V 50-60Hz, 70VA
5. Rating 12V 3.0A
6. Main Unit Size: Approx. 290*245*50mm(L*W*H)
Primary Function1. Display Mode: B, B/B, 4B, B/M, M
2. M scanning speed: 1s, 2s, 3s, 4s, 5s, 6s, 7s, 8s
3. Zoom: *0.8, *1.0, *1.2, *1.5, *1.6, *2.0, *2.4, *3.0
4. Depth Enhancement/ Pan Function
5. Local Zooming
6. Adjustment and display of near field, far field, total gain and dynamic range
7. Single-point, multi-point focusing
8. Frequency conversion
9. Angle Change
10. Frame Correlation
11. Gamma Correction, edge enhancement for image post-processing
12. Image Freeze/unfreeze
13. Vertical, horizontal flip and Black/white conversion
14. Psuedo Color Display
15. Patient information, image annotation and auto time display
16. Body Marks: 64
17. Measurement of distance, circumstance, area, volume, slope, heart rate, and cycle
18. Calculation of Bovine, Equine, Ovine, Canine and Feline;
19. Puncture Guide
20. Engery Saving
21. 100 frames image storage
22. 256 frames cine loop
23. OB Report
24. PAL-NTSC Conversion
25. Image Transfer to computer thru USB port.
Standard Configuration1) Main unit 1PC
2) 5.0/6.5/7.5MHz Rectal Linear Probe 1PC
3) Probe Connector 1PC
4) Pseudo Color System 1set
5) Internal Rechargeable Battery 2PC
6) Power Adapter 1PC
Operation Manual (English) 1PC
Optional Parts:1) 2.0/2.5/3.5/5.0MHz Convex Array Probe
2) 4.0/5.0/6.5/7.5MHz Micro-convex Array Probe
3) 4.0/5.0/6.5/7.5MHz Rectal Linear Probe
4) 2.0/2.5/4.0/5.0MHz Rectal Convex Probe
5) 4.0/5.0/6.5/7.5/9.0MHz Linear Array Probe
6) Car Charger
7) External Battery
8) Needle-Guided Bracket
9) View Glass
10) Video Copy Processor Mitsbushi P93W-Z
11) Video Graphic Printer Sony UP897MD
11) Plastic Trolley
Packing InfoCarton Size 450mm*230mm*485mm
N. W/G. W 2.25KG/6.75KG
Volumetric Weight: 8.4KG
