PRODUCT PREVIEW:

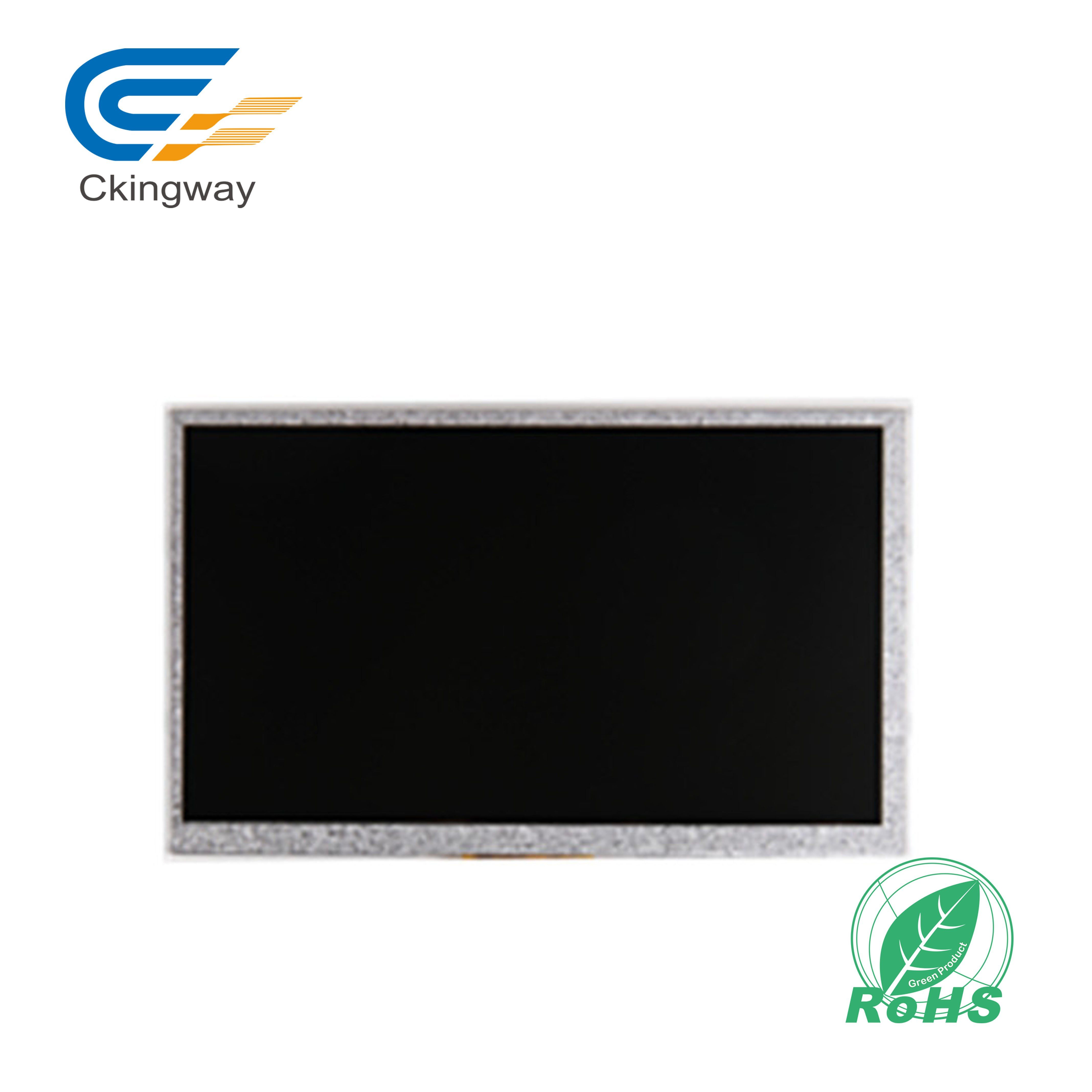

Small Size TFT, The CKT070D077CGC-08 , is a small-size 7" TFT with Rtp/P-Cap Touch Screen . All our color display products can be modified to be sunlight-readable, and touch panels can added or removed. upon request (there may or may not be tooling associated with sunlightreadability or touch-panel changes).
Model No.: | CKT070D077CGC-08 |
Screen Diagonal | 7.0" |
Module area (W*H*T): | 164.80*99.80*7.1mmmm |
Active area (W*H): | 154.08(W) × 85.92(H)mm |
Pixel pitch (W*H): | 0.1926*0.1790mm |
Resolution | 800×(RGB)×480 |
Driver IC | HX8264+HX8664 |
Recommended Viewing Direction | 12' Clock |
Interface Type | 24-BIT RGB |
COLORS | 16.7M |
BACKLIGHT TYPE | 21-LED WHITE |
Prod Model: | CKT070D077CGC-08 |
---|---|
Model No.: | Ckt070d087cgn-11 |
Module Area (W*H*T): | 164.80*99.80*7.1mm |
Active Area (W*H): | 154.0*85.92 mm |
Pixel Pitch (W*H): | 0.1926*0.1790 |
Resolution: | 480*800 |
Driver IC: | Hx8264+Hx8664 |
Recommended Viewing Direction: | 12 |
Gray Scale Inversion Direction: | 6 |
Colors: | 16.7m |
Application: | Graphic Design |
Aspect Ratio: | 16:9 |
Feature: | Support TV Function |
Type: | TFT |
Widescreen: | Not Widescreen |
Response Time: | 25ms |
3D: | Not 3D |
Screen Size: | 7.0 |
Optimum Resolution: | 800*3(RGB)*480 |
Interface Type: | 24-Bit RGB |
