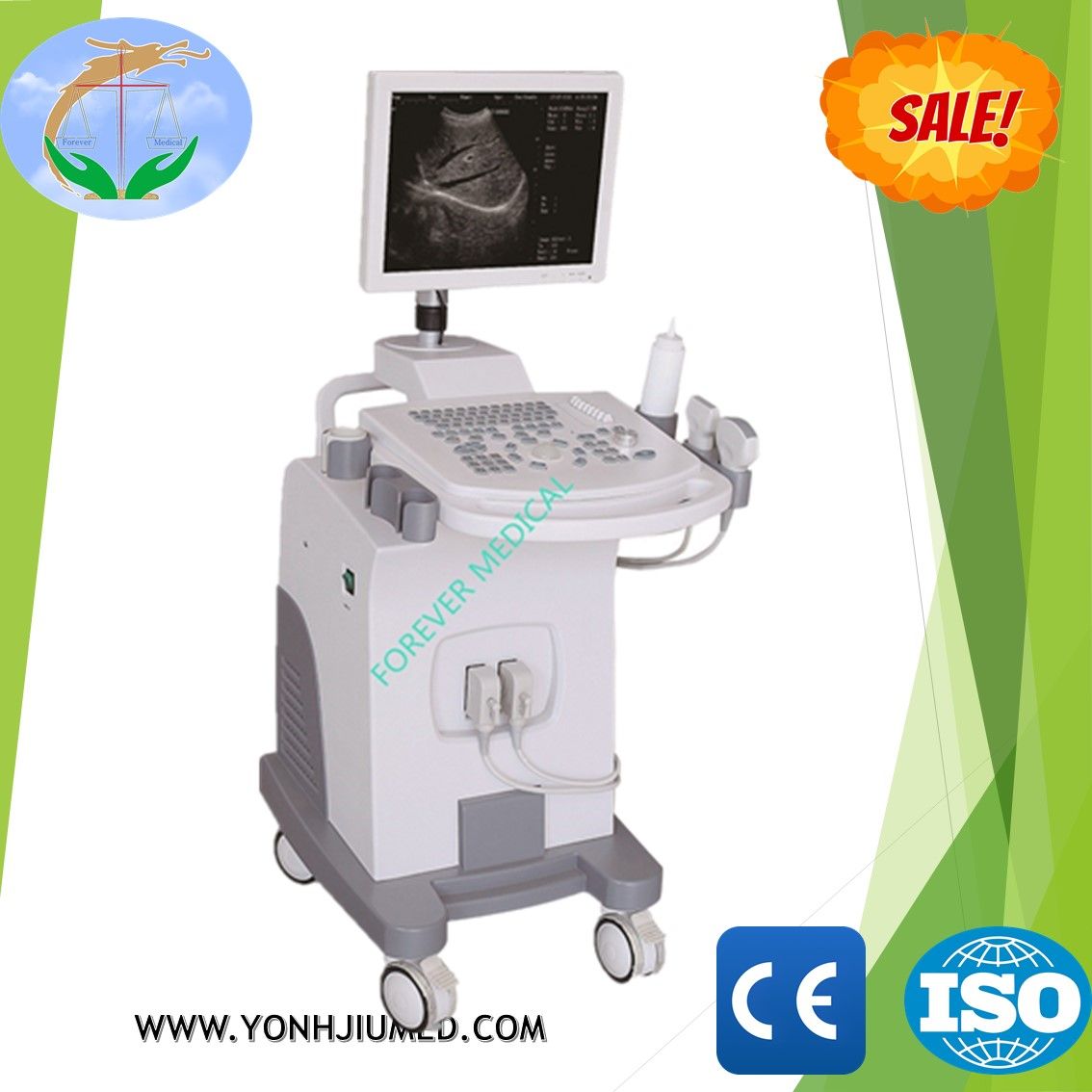

YJ-U370t Medical Instrument for Ob & Gy Ultrasound Scanner Medical Machine
| Price: |
US $ 3000-3845/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
YJ-U370T Medical Instrument for Ob & Gy Ultrasound Scanner
Full Digital CE Approval Ultrasound Diagnostic System15 inch LED liquid crystal monitor,
Exquisite image quality and excellent stability,

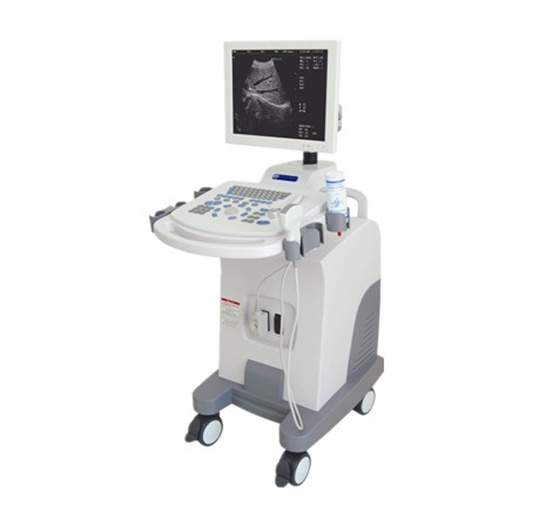

YJ-U370T Full-digital Trolley Ultrasound Scanne| Model | YJ-U370T |
| Display mode | B, B+B, 4B, B+M, M |
Human Body &Veterinary
Abdomen, Obstetrics, Gynecology, Pediatrics,Small parts, Artery,
Superficial organ, Orthopedics, Musculoskeletal, Vascular, etc.
Probe
Transducer Types
Probe | 5 Steps Multi-frequency |

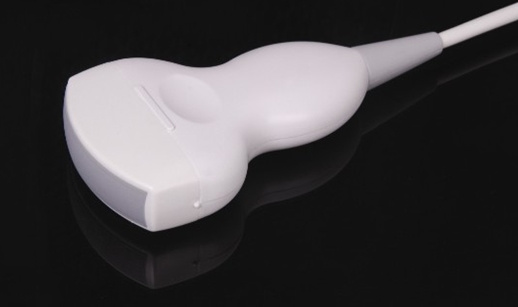

| 3.5Mhz convex probe | (2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz) |

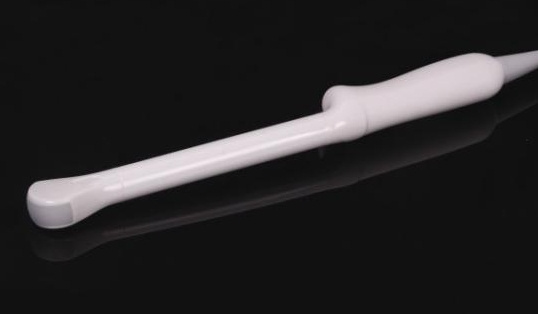

| 6.5Mhz transvaginal probe | (5.0/ 6.0/ 6.5/ 7.5/ 9.0Mhz) |

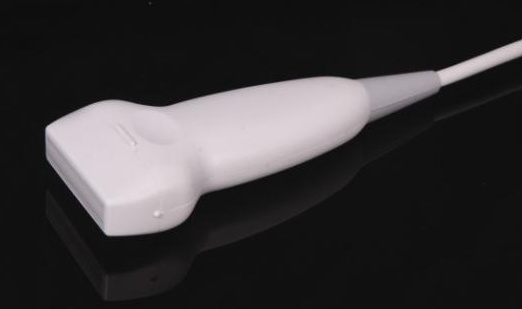

| 7.5Mhz linear probe | (6.0/ 6.5/ 7.5/ 10.0/ 12.0Mhz) |
| 3.5Mhz micro convex probe | (2.0/ 2.5/ 3.5/4.5/ 5.0Mhz) |
| 3.5Mhz phased array probe | (2.1/ 3.0/ 3.5/ 4.0/ 5.0Mhz) |
Main featuresFirst-class digital imaging technology, more clearer image:
Full-digital beam imaging technology
Real-time dynamic receiving focus point by point
Real-time dynamic sound velocity changed
High-accuracy DSC Digital image formation technology
Intelligentized 8-segment TGC adjustment
Progressive SMT components technology to ensure machine reliability
USB port: storable and readable
Flexible and convenient operating system:

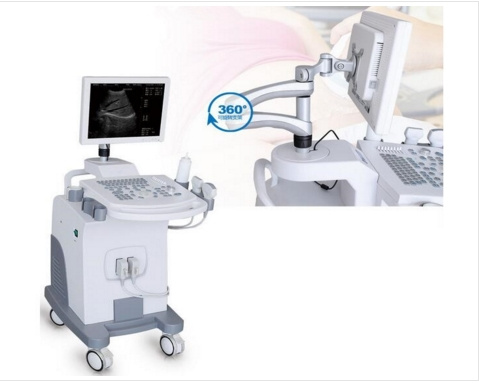

15 inch LED liquid crystal display, angle range is more flexible to adjust
Back-lit keyboard silicon gel,more comfortable and wearable,
no trouble in using in the darkroom
Intelligentized menu,man-machine diaglogue is easy and quick
Puncture guide line can display under B mode, angle and position are adjustable
More magnification display, Disease diagnosis more accurate
USB storage is connected outside, more convenient to upload pictures
Large capacity of cine loop,image can display circularly and automaticallyTechnical specificationScanning mode: convex / linear / micro-convex
Probes: 96 elements convex probe,trans-vaginal probe, trans-rectal probe,
high frequency linear probe
Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation
Display mode: B, B+B, B+M, M, 4B
Detecting depth: ≥242mm
Resolution: lateral≤2mm, axial≤1mm
Blind Zone: ≤3mm
Geometry precision: lateral≤5%, axial≤5%
Gray scale: 256
Electronical focusing: 2 focuses combination randomly
Cine loop: 256 frames, realized in automatic successive playback
and manual single step forward, backward playback
USB port: storable and readable
Image storage: 8
Local zoom can be used at real time.
Magnification: ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20,
×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds)
Body marks: 30
Probe interface: 2
Pseudo color: 7Standard configuration
15 inch high resolution Led monitor
3.5MHz Multi-frequency convex probe(2.5MHz-5.0MHz)
Options
6.5MHz Trans-vaginal probe(5.5MHz-7.5MHz)
7.5MHz High frequency linear probe(6.5MHz-8.5MHz)
Color laser printer for option .FAQ :1. Delivery time: 3~5 working days after payment.
2. Payment Term: TT, Paypal,West Union in advance before delivery.
3. After sales service: Any time you contact us, we will be right here service for you.For more Hospital machine detailed information, please feel free to contact with our sales team.We are always here to service for you!
| Prod Model: |
YJ-U370T |
| Name: |
Trolley Ultrasound Scanner |
| Keyboard: |
Light Floating International Standard |
| Probe Transducer Types: |
3.5 MHz Convex Probe |
| Zoom: |
10 Steps |
| Focus: |
Continuous Dynamic Focus |
| Memory: |
Cine Memory |
| Display: |
15 Inch High Resolution Monitor |
| Power: |
AC 100V to 240V+10% |
| Gray Scale: |
256 |
| Detecting Depth: |
220mm |
| Classification: |
Imaging Diagnostic Equipment |
| Type: |
Ultrasound Scanner |
| Certification: |
ISO13485 |
Our company Forever Medical supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Forever Medical is a group company in China. The mission is to supply solution for Safety and Application for human health as we have always done during the past. For this mission, Forever Medical has integrated different production teams with sales teams for supplying Many Clinical Equipment, Dental Equipment, Film Image Equipment and First Aid Products...
And we also supply OEM service according to you.
International Sales team of Henan Forever Medical Co., Ltd was invested in year of 2016, but our domestic team has been found for 25 years and have been achieved good performance; For settling the increasing demand for productivity, the international sales and logistics for our group. And we will invite third pary certification SGS come to certify it and got certificate in May, 2017.
