Xuding Electronics Technology Co., Limited >> LCD Display Cog Graphic 128*64 LCD for High Quality Monochrome

LCD Display Cog Graphic 128*64 LCD for High Quality Monochrome

LCD Display Cog Graphic 128*64 LCD for High Quality Monochrome
Price: US $ 6.1-6.5/Piece
Min Order: 500/Piece
Pay Type: T/T

Product Specifications


Prod Model: XCGG120631
Drive Method: 1/64duty,1/8bias
Polarizer Type: Transmissive / Negative
Operating Temp: -20--70
Storage Temp: -30--80
Voltage: Vdd:3.0V
Application: Mobile Phone
Feature: 3D Display
Type: STN
Response Time: 12ms
3D: 3D
Optimum Resolution: 128*64

Product Description

Product Descrip

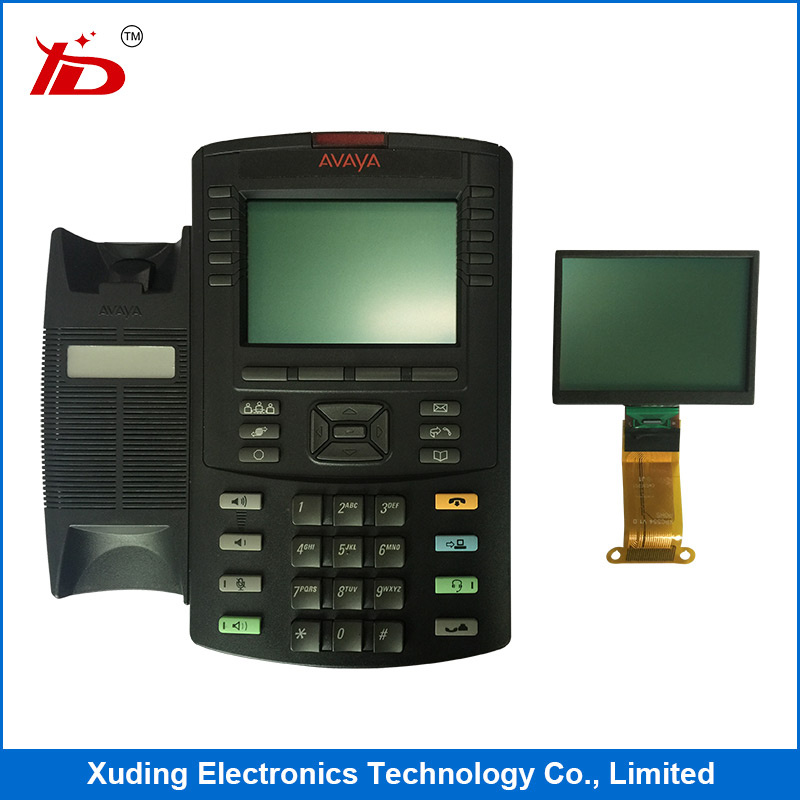

COG 128*64  Graphic Liquid Crystal Display Module

1. The product description


Manufacturer   XUDING
Series numberXCGG120631
Display format128*64 Dots
Outline dimension96*74*2.8 mm
Visual area93*71 mm
Active area86.06*57.5 mm
Character size

DOT (pixel) size
IC package
COG
IC or equivalent
NT7534
Interface
1/64Duty   1/8Bias
InterfaceParallel
Display typeCOG
Sunlight readable
No
Touch panel optionalNo
Contrast ratio(typ)No
Viewing direction6:00
LED backlight color

AppearanceWhite on blue/black on yellow green/white on gray
Power supply(typ)3.0V
Backlight current (typ)side, white Led(6PCS)
Operating temp
-20ºc~70ºc
Storage temperature-30ºc~80ºc
If accept customizedYes
RoHS complianceYes

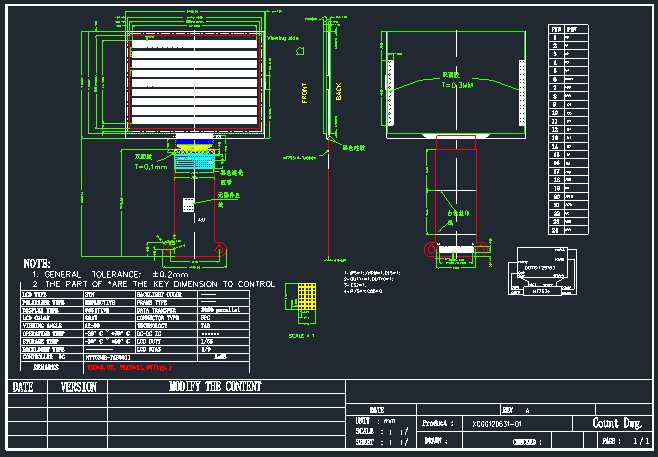

2. Outline size












Dongguan xu ding electronics technology Co., Ltd. (XUDING) professional sales LCD/LCM/TFT LCD display. Its products are widely used in electric power terminal, digital control, instrumentation, medical equipment, security, tax control equipment, industrial automation and other fields.

XUDING with independent research and development capabilities, and more than 5 years experience of quality personnel complete facilities, reasonable workshop layout, advanced equipment, professional technical support, and for the supplier to our company in the LCD panel industry customers long-term support and trust

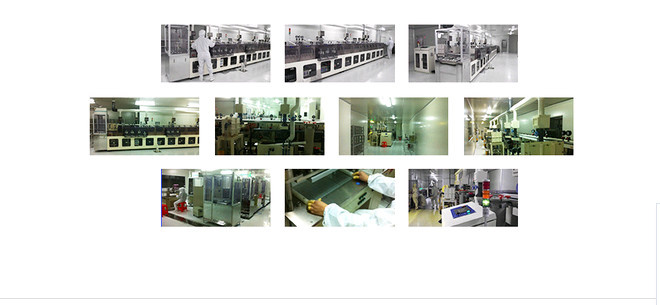

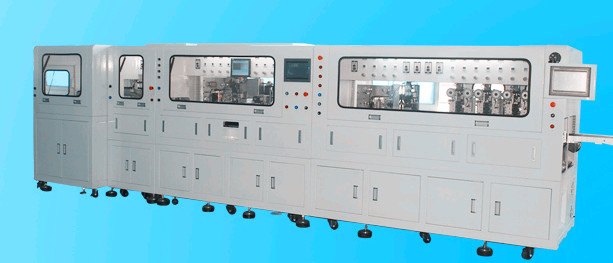

Our production plant has stringent quality control to guarantee Absolute product quality. Our production equipment are state-of-the-art Japanese technology Including COB, TAB, COG, etc.

Thank you for choosing Xu Ding electronic science and technology, long-term cooperation and common development, we will serve you wholeheartedly!
